2530-00-096-9649
Friction Lining
2530000969649 000969649 1980-000 10933120-1 M9703 3068-17 2520000969649 JM6401 40-204A1 R1492X10 731-M 2530PL0889229
A fibrous and/or metallic material with or without binders and/or compounds, cut or molded to a specific size. It may be a segment or a complete lining. It is usually designed to be fastened to a shoe, disk, band, cone, or the like, but may be installed without fastening. It provides a friction surface for transmitting, retarding, or stopping motion. Excludes LINING MATERIAL, FRICTION. View more Friction Lining
November 2023
50
Product Information 2530-00-096-9649
3-1/4" Friction Puck D9073 Material for Army Tank Brakes
Marketplace 2530-00-096-9649
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-096-9649 5+ Documents (More...)

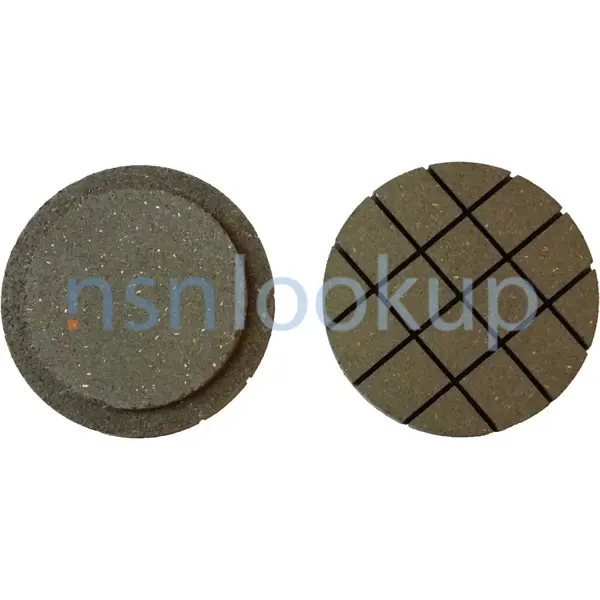

Photo 1/2 NSN 2530-00-096-9649 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 2530-00-096-9649 RQST Updated Every Day 2530-00-096-9649 RQST NE Related
Quotation 392087 LAMPHOLDER RQST NS Request Quotation 8518403 LAMPHOLDER RQST NS Request Quotation M9703
Friction Lining 2530000969649 000969649 www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-096-9649
M9703-1 LAMPHOLDER RQST NS Request Quotation 251587 LAMPHOLDER RQST NS Request Quotation 5038 LAMPHOLDER
LAMPHOLDER 1 EA NS Request Quotation Subscribe to View https//www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-096-9649
in your web browser . 6515-99-301-4421Branched https//www.nsnlookup.com /fsg-25/fsc-2530/us 2530-00-096-9649
Friction Lining 2530000969649 000969649 Upgrade for $1 a day Upgrade your Account Upgrade 2530-
Restrictions 2530-00-096-9649
2530-00-096-9649 is a Friction Lining that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 2530-00-096-9649
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-096-9649
- US Army (A920)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Air Force (FGGC)
- Effective Date:
- 1 Jun 2006
- Former MOE Rule:
- FGAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Poland (WP01)
- Effective Date:
- 1 Apr 2003
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 2003
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 2530-00-096-9649
- Part Number
- Manufacturer
- Status
- 10933120-1
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 1980-000
- G1005 - Sielman S.A. (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- M9703
- 92582 - Universal Friction Composites Inc (Active)
- Secondary Buy
- Secondary Buy
- 3068-17
- 70355 - Abex Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2520000969649
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- JM6401
- 75165 - Johns Manville Intl (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 40-204A1
- 70355 - Abex Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- R1492X10
- 82740 - Universal Friction Composites Vices (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 731-M
- 1JG01 - Ceco Friction Products, Inc. (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2530PL0889229
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 2520000969649
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2530-00-096-9649
- Characteristic
- Specifications
- FIIG
- Specifications
- A230A0
- Application Type [AJMJ]
- Dry
- Fabrication Method [AARN]
- Molded
- Features Provided [CBBL]
- Rigid Friction Lining
- Friction Lining Material [AJKJ]
- Non-Asbestos Composition
- Fsc Application Data [ZZZV]
- Differenential And Drive Assemblies,Steering Control
- Lining Style [AJKK]
- Plain Disk
- Major Diameter [AAZR]
- 3.236 Inches Nominal
- Strengthening Feature [ADZK]
- Internally Molded-In Reinforcement
- Surface Condition And Location [CQHT]
- One Side Grooved
- Thickness [ABNM]
- 0.515 Inches Nominal
Weapon Systems (WSDC) 2530-00-096-9649
DLA Procurement Analysis 2530-00-096-9649
- Last Stock Position:
- 7 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2530-00-096-9649
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2530-00-096-9649
Freight Information 2530-00-096-9649
2530-00-096-9649 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 014640. A Sub NMFC of X. It has a NMFC Description of BRAKE BLOCKS / BRAKE LININGS. 2530-00-096-9649 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 06410 which rates the freight between FCL and LCL. 2530-00-096-9649 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 2530-00-096-9649 is not classified as a special type of cargo when transported by water. 2530-00-096-9649 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2530-00-096-9649
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- Vendor's Setup or Folding Box
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 2530-00-096-9649 4 Records
Contracting Technical Data File (CTDF) 2530-00-096-9649 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
