2530-00-088-9866

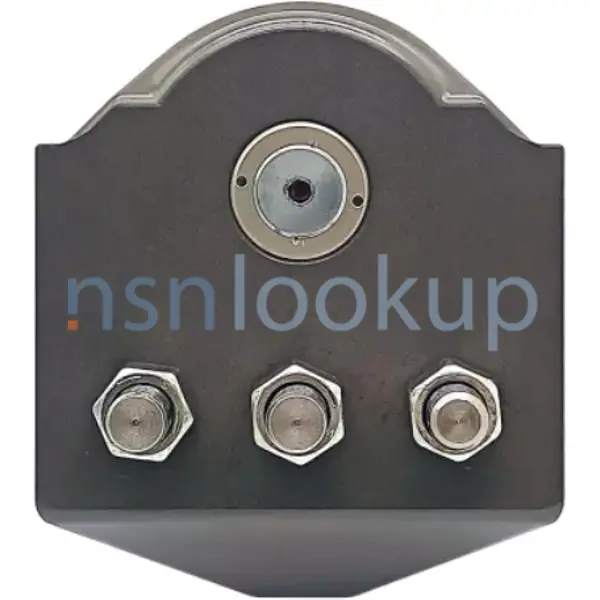

Single Disk Brake
2530000889866 000889866 11660974 2520000889866 2530PL1483147
A brake consisting essentially of the following: a. A single piece or divided cylinder housing designed to be mounted on the torque flange of an axle. The cylinder housing has a slot or groove through which the DISK, BRAKE passes. It contains a piston(s) or push rod(s) which provides the hydraulic or mechanical force to press the LINING, FRICTION against the DISK, BRAKE. b. LINING, FRICTION. c. A DISK, BRAKE designed to be keyed or rigidly attached to a wheel or rotating shaft. View more Single Disk Brake
September 2023
45
Marketplace 2530-00-088-9866
Request a Quotation from participating marketplace vendors
Related Documents 2530-00-088-9866 1+ Documents (More...)
Restrictions 2530-00-088-9866
2530-00-088-9866 is a Single Disk Brake that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 2530-00-088-9866
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2530-00-088-9866
- US Army (A920)
- Effective Date:
- 1 Aug 2010
- Former MOE Rule:
- A204
- Supplementary Receivers:
- AZBD
- US Air Force (FGGC)
- Effective Date:
- 1 Aug 2010
- Former MOE Rule:
- FGAZ
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2010
- Former MOE Rule:
- MA5G
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 May 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Feb 2002
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 2530-00-088-9866
- Part Number
- Manufacturer
- Status
- 11660974
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 2520000889866
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2520000889866
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2530PL1483147
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 11660974
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 2530-00-088-9866
- Characteristic
- Specifications
- FIIG
- Specifications
- T129-B
- Braking Area Outside Diameter [AYLJ]
- 3.236 Inches Nominal
- Fsc Application Data [ZZZV]
- Differential And Drive Assemblies,Steering Control
- Hydraulic Cylinder Diameter [AYLX]
- 1.500 Inches Nominal
- Hydraulic Cylinder Quantity [AYLW]
- 2
- Mounting Hole Diameter [ABTB]
- 0.640 Inches Minimum And 0.650 Inches Maximum
- Mounting Hole Quantity [ABTJ]
- 3
- Mounting Method [AXGY]
- Anchor Plate Flange
- Operation Method [APHE]
- Hydraulic
- Special Features [FEAT]
- Overall Mounting Bolt Length 5.500 Inch
Weapon Systems (WSDC) 2530-00-088-9866
DLA Procurement Analysis 2530-00-088-9866
- Last Stock Position:
- 9 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2530-00-088-9866
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- MC
- Armored Carriers
M113A1/A2 Armored Personnel Carrier, Combat Vehicle, Anti-tank
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2530-00-088-9866
Freight Information 2530-00-088-9866
2530-00-088-9866 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 018400. A Sub NMFC of X. It has a NMFC Description of AUTO BRAKES/SHOES R PADS ETC. 2530-00-088-9866 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08480 which rates the freight between FCL and LCL. 2530-00-088-9866 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2530-00-088-9866 is not classified as a special type of cargo when transported by water. 2530-00-088-9866 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2530-00-088-9866 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
