2520-01-579-2302

Transmission Control Assembly

2520015792302 015792302 TCM2100AB TCM2100AA 12460423-5 12460423

An item that determines the mode of operation of a transmission. Excludes CONTROL(2), MOTOR TRANSMISSION. View more Transmission Control Assembly

Managed by United States

NSN Created on 4 Nov 2009

Data Last Changed
August 2023

NATO Update Count
19

NATO Data Quality

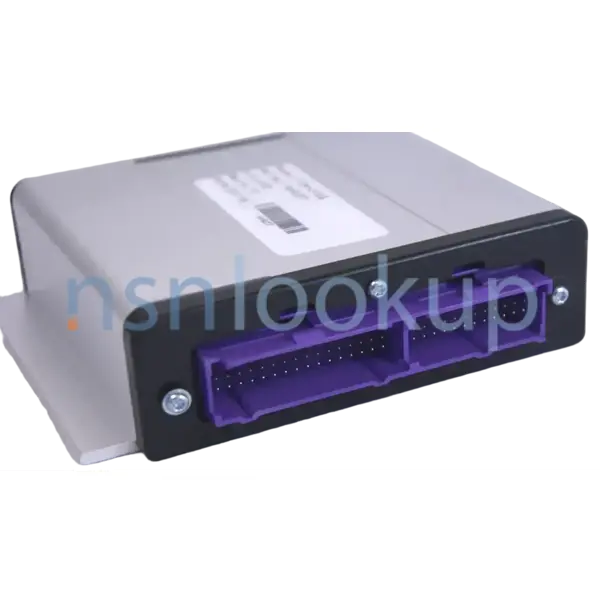

2520-01-579-2302 CONTROL ASSEMBLY,TRANSMISSION 2520015792302 015792302 1/1 — NSN 2520-01-579-2302 (Generic Image) 1/1

Marketplace 2520-01-579-2302

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

2520-01-579-2302 RQST NE

Updated Every Day

2520-01-579-2302 RQST

Updated Every Day

2520-01-579-2302 RQST NE

Restrictions 2520-01-579-2302

2520-01-579-2302 is a Transmission Control Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 2520-01-579-2302

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2520-01-579-2302

US Army (A920)
Effective Date:: 1 Nov 2009
Supplementary Receivers:: AZ; AMC 3 AMSC D IMC Z IMCACTY AZ

US Air Force (FGGC)
Effective Date:: 1 Nov 2009; AMC 3 AMSC D IMC Z IMCACTY TG

US Marine Corps (MC40)
Effective Date:: 1 Nov 2009; AMC 3 AMSC D IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GG; AMC 3 AMSC D IMC Z IMCACTY GH

Approved Sources 2520-01-579-2302

Part Number
Manufacturer
Status
TCM2100AB: 4WR67 - Powertrain Control Solutions Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
2520015792302: A00AM - E.C.A Etablissement Central Des (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
TCM2100AA: 4WR67 - Powertrain Control Solutions Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
12460423-5: 19207 - U S Army Tank Automotive Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC C
12460423: 19207 - U S Army Tank Automotive Command (Active); Informational Drawing; RNCC D RNVC 9 DAC C

Datasheet 2520-01-579-2302

Characteristic
Specifications
FIIG: T22400
End Item Identification [AGAV]: 2320-01-540-2038, Truck,Utility/Vehicle System, 1 1/4 Ton (Hmmwv)
Part Name Assigned By Controlling Agency [CXCY]: Control Module And Housing Assy, Transmission
Supplementary Features [SUPP]: Nha-12469203
Special Features [FEAT]: Rectangular Shape With Surface Mounting
Voltage In Volts And Current Type [CSBH]: 12.0 Dc
Special Markings [MARK]: Caution: Vehicle Power Must Be Off Before The Transmission Control Module Is Connected Or Disconnected
Special Test Features [SPCL]: Operating Temperature: Minus 47F To 123F
Specification/Standard Data [ZZZK]: 96906-Dod-Std-00100D (Ar) Government Standard And 80204-Ansi Y14.5M-1982 Professional/Industrial Association Standard
