2520-01-474-4012

Automotive Axle Shaft

2520014744012 014744012 10068551 12460369-6 EX4855-3 299-0069 EX48855 2520PL0860382

A shaft which is a component of AXLE ASSEMBLY, AUTOMOTIVE, DRIVING, used to transmit rotary motion from the differential assembly either directly or indirectly to the wheel hubs. Excludes shafts with a universal joint or a component of a universal joint attached to it. View more Automotive Axle Shaft

Managed by United States

NSN Created on 3 May 2000

Data Last Changed
October 2025

NATO Update Count
25

NATO Data Quality

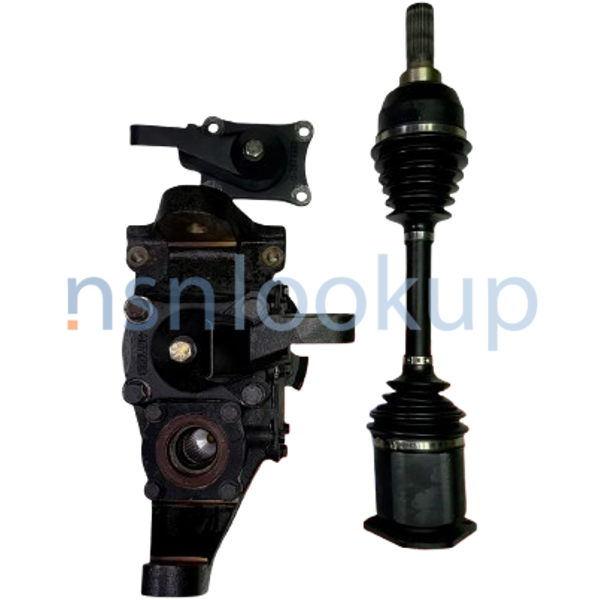

2520-01-474-4012 SHAFT,AXLE,AUTOMOTIVE 2520014744012 014744012 1/1 — 2520-01-474-4012 Photo 1/1

Marketplace 2520-01-474-4012

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

EX4855-3 SHAFT,AXLE,AUTOMOTIVE 2 EA NS

Subscribe to View Vendor Details...

EX48855 SHAFT,AXLE,AUTOMOTIVE RQST NS

Subscribe to View Vendor Details...

12460369-6 SHAFT,AXLE,AUTOMOTIVE 20 EA NS

Subscribe to View Vendor Details...

014744012.2520 SHAFT,AXLE,AUTOMOTIVE 29 EA NS

Subscribe to View Vendor Details...

299-0069 SHAFT,AXLE,AUTOMOTIVE 5 EA NS

Subscribe to View Vendor Details...

2520-01-474-4012 SHAFT,AXLE,AUTOMOTIVE 6 EA NS

Updated Every Day

2520-01-474-4012 RQST NE

Updated Every Day

2520-01-474-4012 RQST

Updated Every Day

2520-01-474-4012 RQST NE

Restrictions 2520-01-474-4012

2520-01-474-4012 is a Automotive Axle Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 2520-01-474-4012

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2520-01-474-4012

US Army (A920)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZBS; AMC 3 AMSC D IMC Z IMCACTY AZ

US Air Force (FGGC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: FGAX; AMC 3 AMSC D IMC Z IMCACTY TG

US Marine Corps (MC40)
Effective Date:: 1 Jun 2006
Former MOE Rule:: MC01; AMC 3 AMSC D IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Dec 2013
Supplementary Collaborators:: GGGT; AMC 3 AMSC D IMC Z IMCACTY GH

Lithuania (WI01)
Effective Date:: 1 Jul 2007

Slovenia (WL01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Apr 2009

Czech Republic (WZ01)
Effective Date:: 1 Aug 2010

Canada (ZC01)
Effective Date:: 1 May 2010

Greece (ZU01)
Effective Date:: 1 Sep 2007

Turkey (ZW01)
Effective Date:: 1 Feb 2006

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 2010

Approved Sources 2520-01-474-4012

Part Number
Manufacturer
Status
10068551: 62826 - Gkn Driveline North America, Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 6
12460369-6: 34623 - Am General Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
EX4855-3: 34623 - Am General Llc (Active); Original Design; RNCC 3 RNVC 9 DAC A
299-0069: 62826 - Gkn Driveline North America, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
EX4855-3: 62826 - Gkn Driveline North America, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
EX48855: 19207 - U S Army Tank Automotive Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
2520PL0860382: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 2520-01-474-4012

Characteristic
Specifications
FIIG: T306-D
End Item Identification [AGAV]: Nsn 2320-01-412-0143 Truck, Utility - Hum-V
First End Spline Length [AMDM]: 3.210 Inches Minimum And 3.250 Inches Maximum
First End Type [AMQA]: Flanged
Flange Overall Thickness [BNYS]: 0.303 Inches Minimum And 0.355 Inches Maximum
Flange Thickness At Mounting Hole [BNYT]: 0.180 Inches Minimum And 0.200 Inches Maximum
Flange Outside Diameter [AHTC]: 2.948 Inches Minimum And 2.952 Inches Maximum
Hole Diameter [AAUB]: 0.430 Inches Minimum And 0.450 Inches Maximum
Mounting Facility Type And Quantity [AXHR]: 6 Unthreaded Hole
Second End Gear Outside Diameter [AMHF]: 1.375 Inches Nominal
Second End Gear Teeth Quantity [BNTH]: 32
Second End Gear Teeth Pressure Angle In Deg [BNTJ]: 45.0
Second End Spline Length [AMGA]: 3.210 Inches Minimum And 3.250 Inches Maximum
Second End Spline Major Diameter [AMGC]: 1.375 Inches Nominal
Second End Spline Minor Diameter [AMGB]: 1.282 Inches Nominal
Second End Spline Pressure Angle In Deg [BNTN]: 45.0
Second End Spline Type [BNTM]: Involute
Second End Pitch Diameter [AMGF]: 0.071 Inches Minimum And 0.073 Inches Maximum
Second End Type [AMQF]: Splined
Overall Length [ABHP]: 25.000 Inches Minimum And 25.470 Inches Maximum
Special Features [FEAT]: Item For Left Hand Only; Surface Hardness Rockwell C 58-63 - Core Hardness Rockwell C 35 Max; Mat'l For Boot Clamp - Stainless Steel, Type 304 Iaw Astm A167
