2520-01-474-3901

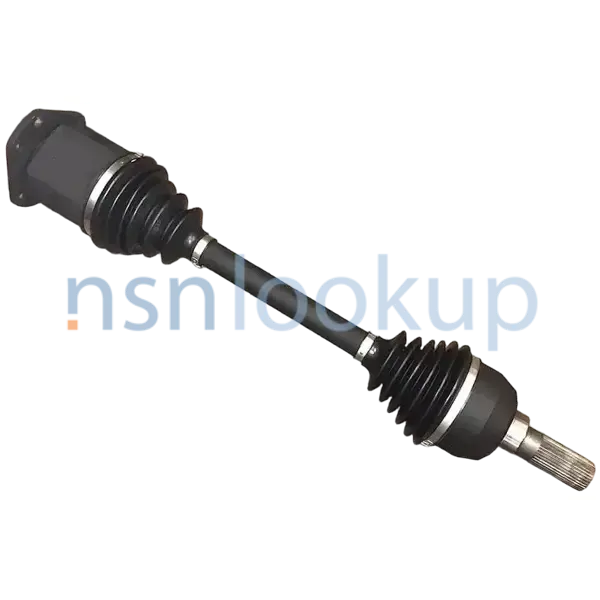

Automotive Axle Shaft

2520014743901 014743901 12460369-5 10068552 EX4855-2 299-0070 2520PL0839479 456720023102 EX4855

A shaft which is a component of AXLE ASSEMBLY, AUTOMOTIVE, DRIVING, used to transmit rotary motion from the differential assembly either directly or indirectly to the wheel hubs. Excludes shafts with a universal joint or a component of a universal joint attached to it. View more Automotive Axle Shaft

Managed by United States

NSN Created on 3 May 2000

Data Last Changed
October 2025

NATO Update Count
26

NATO Data Quality

2520-01-474-3901 SHAFT,AXLE,AUTOMOTIVE 2520014743901 014743901 1/1 — 2520-01-474-3901 Photo 1/1

Marketplace 2520-01-474-3901

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

12460369-5 SHAFT,AXLE,AUTOMOTIVE 200 EA NS

Subscribe to View Vendor Details...

14743901 SHAFT,AXLE,AUTOMOTIVE 1 EA NS

Subscribe to View Vendor Details...

Updated 41 Days Ago

12460369-5 SHAFT 1 EA AR

299-0070 SHAFT 1 EA NS

2990070 SHAFT 1 EA NS

Subscribe to View Vendor Details...

29-90-70 SHAFT,AXLE,AUTOMOTIVE RQST NS

Subscribe to View Vendor Details...

12460369-5 SHAFT,AXLE,AUTOMOTIVE 22 EA NS

Subscribe to View Vendor Details...

014743901.2520 SHAFT,AXLE,AUTOMOTIVE 21 EA NS

Subscribe to View Vendor Details...

2520-01-474-3901 SHAFT,AXLE,AUTOMOTIVE 6 EA NS

Updated Every Day

2520-01-474-3901 RQST NE

Updated Every Day

2520-01-474-3901 RQST

Updated Every Day

2520-01-474-3901 RQST NE

Restrictions 2520-01-474-3901

2520-01-474-3901 is a Automotive Axle Shaft that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.

Import and Export 2520-01-474-3901

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 2520-01-474-3901

US Army (A920)
Effective Date:: 1 Jun 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZBS; AMC 3 AMSC D IMC Z IMCACTY AZ

US Air Force (FGGC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: FGAX; AMC 3 AMSC D IMC Z IMCACTY TG

US Marine Corps (MC40)
Effective Date:: 1 Jun 2006
Former MOE Rule:: MC01; AMC 3 AMSC D IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Jun 2006
Former MOE Rule:: N9CD
Supplementary Collaborators:: GT; AMC 3 AMSC D IMC Z IMCACTY GH

Hungary (WH01)
Effective Date:: 1 Nov 2011

Lithuania (WI01)
Effective Date:: 1 Jul 2007

Slovenia (WL01)
Effective Date:: 1 Feb 2005

Poland (WP01)
Effective Date:: 1 Apr 2009

Czech Republic (WZ01)
Effective Date:: 1 Apr 2010

Canada (ZC01)
Effective Date:: 1 May 2010

Greece (ZU01)
Effective Date:: 1 Sep 2007

Turkey (ZW01)
Effective Date:: 1 Feb 2006

NATO Maintenance and Supply Agency (ZX01)
Effective Date:: 1 Apr 2010

Approved Sources 2520-01-474-3901

Part Number
Manufacturer
Status
12460369-5: 34623 - Am General Llc (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
10068552: 62826 - Gkn Driveline North America, Inc. (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
EX4855-2: 19207 - U S Army Tank Automotive Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
EX4855-2: 34623 - Am General Llc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
EX4855-2: 62826 - Gkn Driveline North America, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
299-0070: 62826 - Gkn Driveline North America, Inc. (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 6
2520PL0839479: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
456720023102: 0000V - Ncb Hungary (Honvedsegi Egyseges (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
EX4855: 19207 - U S Army Tank Automotive Command (Active); Informational Drawing; RNCC D RNVC 9 DAC A

Datasheet 2520-01-474-3901

Characteristic
Specifications
FIIG: T306-D
End Item Identification [AGAV]: Nsn 2320-01-412-0143 Truck, Utility - Hum-V
First End Spline Length [AMDM]: 3.210 Inches Minimum And 3.250 Inches Maximum
First End Type [AMQA]: Flanged
Flange Overall Thickness [BNYS]: 0.303 Inches Minimum And 0.355 Inches Maximum
Flange Thickness At Mounting Hole [BNYT]: 0.180 Inches Minimum And 0.200 Inches Maximum
Flange Outside Diameter [AHTC]: 2.948 Inches Minimum And 2.952 Inches Maximum
Hole Diameter [AAUB]: 0.430 Inches Minimum And 0.450 Inches Maximum
Mounting Facility Type And Quantity [AXHR]: 6 Unthreaded Hole
Second End Gear Outside Diameter [AMHF]: 1.375 Inches Nominal
Second End Gear Teeth Quantity [BNTH]: 32
Second End Gear Teeth Pressure Angle In Deg [BNTJ]: 45.0
Second End Spline Length [AMGA]: 3.210 Inches Minimum And 3.250 Inches Maximum
Second End Spline Major Diameter [AMGC]: 1.375 Inches Nominal
Second End Spline Minor Diameter [AMGB]: 1.282 Inches Nominal
Second End Spline Pressure Angle In Deg [BNTN]: 45.0
Second End Spline Type [BNTM]: Involute
Second End Pitch Diameter [AMGF]: 0.071 Inches Minimum And 0.073 Inches Maximum
Second End Type [AMQF]: Splined
Overall Length [ABHP]: 29.770 Inches Minimum And 30.240 Inches Maximum
Special Features [FEAT]: Item For Right Hand Only; Surface Hardness Rockwell C 58-63 - Core Hardness Rockwell C 35 Max; Mat'l For Boot Clamp - Stainless Steel, Type 304 Iaw Astm A167

Weapon Systems (WSDC) 2520-01-474-3901

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 2520-01-474-3901

Last Stock Position:: 308 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 2520-01-474-3901

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Dec 2021: Department of the Air Force (DF); EA; Subscribe; 1
Oct 2021: US Marine Corps (DM); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Air Force (DF); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 2520-01-474-3901

Freight Information 2520-01-474-3901

2520-01-474-3901 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 017900. A Sub NMFC of X. It has a NMFC Description of AUTO AXLE SHAFTS. 2520-01-474-3901 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08190 which rates the freight between FCL and LCL. 2520-01-474-3901 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2520-01-474-3901 is not classified as a special type of cargo when transported by water. 2520-01-474-3901 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 2520-01-474-3901

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 30.2" H x -- W x -- L; --; --; Preservative Coating Only; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box; Special requirements

Intermediate Pack Level

Quantity of Unit Packs
Container: --; No Requirement

Procurement History 2520-01-474-3901 Most Recent 69 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7LX24F1835: 12 Oct 2023; Subscribe; 259; Subscribe; Subscribe
SPE7LX23F98M1: 13 Jul 2023; Subscribe; 311; Subscribe; Subscribe
SPE7LX23F98M1P00001: 13 Jul 2023; Subscribe; 311; Subscribe; Subscribe
SPE7LX23F98M1P00001: 13 Jul 2023; Subscribe; 311; Subscribe; Subscribe
SPE7LX23F20S0: 13 Apr 2023; Subscribe; 127; Subscribe; Subscribe
SPE7LX23F20S0: 13 Apr 2023; Subscribe; 127; Subscribe; Subscribe
SPE7LX22F05HR: 16 Jun 2022; Subscribe; 274; Subscribe; Subscribe
SPE7LX22F05HR: 16 Jun 2022; Subscribe; 48; Subscribe; Subscribe
SPE7LX22F67A7: 12 May 2022; Subscribe; 86; Subscribe; Subscribe
SPE7LX22F67A7: 12 May 2022; Subscribe; 86; Subscribe; Subscribe
SPE7LX22F642P: 25 Feb 2022; Subscribe; 41; Subscribe; Subscribe
SPE7LX22F642P: 25 Feb 2022; Subscribe; 41; Subscribe; Subscribe
SPE7LX21F15H9: 06 Aug 2021; Subscribe; 118; Subscribe; Subscribe
SPE7LX21F15H9: 06 Aug 2021; Subscribe; 118; Subscribe; Subscribe
SPE7LX21F11B7: 29 Jul 2021; Subscribe; 92; Subscribe; Subscribe
SPE7LX21F11B7: 29 Jul 2021; Subscribe; 92; Subscribe; Subscribe
SPE7LX21F867W: 17 Jun 2021; Subscribe; 79; Subscribe; Subscribe
SPE7LX21F867W: 17 Jun 2021; Subscribe; 79; Subscribe; Subscribe
SPE7L521P1178: 11 Jun 2021; Subscribe; 38; Subscribe; Subscribe
SPE7LX21F808VP00001: 08 Jun 2021; Subscribe; 58; Subscribe; Subscribe
SPE7LX21F808VP00001: 08 Jun 2021; Subscribe; 58; Subscribe; Subscribe
SPE7L521P1107: 19 May 2021; Subscribe; 8; Subscribe; Subscribe
SPE7L521P0887: 08 Apr 2021; Subscribe; 25; Subscribe; Subscribe
SPE7L521V1152: 03 Mar 2021; Subscribe; 19; Subscribe; Subscribe
SPE7L521V1057P00001: 18 Feb 2021; Subscribe; 29; Subscribe; Subscribe
SPE7M118F3R26: 26 Jul 2018; Subscribe; 81; Subscribe; Subscribe
SPE7M118F3S52: 26 Jul 2018; Subscribe; 200; Subscribe; Subscribe
SPE7M118F80DG: 21 May 2018; Subscribe; 138; Subscribe; Subscribe
SPE7M118F17W6: 20 Dec 2017; Subscribe; 35; Subscribe; Subscribe
SPE7M118F733P: 30 Nov 2017; Subscribe; 28; Subscribe; Subscribe
SPE7M118F405S: 16 Nov 2017; Subscribe; 51; Subscribe; Subscribe
SPE7M118F7473: 20 Oct 2017; Subscribe; 43; Subscribe; Subscribe
SPE7LX15D01800045: 22 Sep 2017; Subscribe; 76; Subscribe; Subscribe
SPE7LX15D01800044: 04 Sep 2017; Subscribe; 121; Subscribe; Subscribe
SPE7LX15D01800041: 24 Aug 2017; Subscribe; 110; Subscribe; Subscribe
SPE7LX15D01800040: 27 Jul 2017; Subscribe; 144; Subscribe; Subscribe
SPE7LX15D01800038: 11 Jul 2017; Subscribe; 101; Subscribe; Subscribe
SPE7LX15D01800037: 30 Jun 2017; Subscribe; 269; Subscribe; Subscribe
SPE7LX15D01800036: 19 May 2017; Subscribe; 19; Subscribe; Subscribe
SPE7LX15D01800033: 20 Apr 2017; Subscribe; 48; Subscribe; Subscribe
SPE7LX15D01800031: 14 Apr 2017; Subscribe; 47; Subscribe; Subscribe
SPE7LX15D01800030: 06 Apr 2017; Subscribe; 78; Subscribe; Subscribe
SPE7LX15D01800028: 30 Mar 2017; Subscribe; 144; Subscribe; Subscribe
SPE7LX15D01800027: 15 Mar 2017; Subscribe; 56; Subscribe; Subscribe
SPE7LX15D01800025: 02 Feb 2017; Subscribe; 43; Subscribe; Subscribe
SPE7LX15D0180002201: 27 Dec 2016; Subscribe; 147; Subscribe; Subscribe
SPE7LX15D0180002001: 04 Dec 2016; Subscribe; 121; Subscribe; Subscribe
SPE7LX15D0180001801: 08 Nov 2016; Subscribe; 90; Subscribe; Subscribe
SPE7LX15D0180001601: 26 Oct 2016; Subscribe; 43; Subscribe; Subscribe
SPE7LX15D0180001301: 30 Sep 2016; Subscribe; 100; Subscribe; Subscribe
SPE7LX15D01800012: 31 Jul 2016; Subscribe; 13; Subscribe; Subscribe
SPE7LX15D01800011: 29 Jul 2016; Subscribe; 29; Subscribe; Subscribe
SPE7LX15D0180001002: 07 Jul 2016; Subscribe; 36; Subscribe; Subscribe
SPE7LX15D01800009: 12 Jun 2016; Subscribe; 75; Subscribe; Subscribe
SPE7LX15D01800008: 26 May 2016; Subscribe; 30; Subscribe; Subscribe
SPE7LX15D01800007: 11 May 2016; Subscribe; 76; Subscribe; Subscribe
SPE7LX15D01800002: 15 Sep 2015; Subscribe; 64; Subscribe; Subscribe
SPM7LX10D70310056: 02 Dec 2014; Subscribe; 14; Subscribe; Subscribe
SPM7LX10D70310054: 31 Oct 2014; Subscribe; 30; Subscribe; Subscribe
SPM7LX10D70310053: 30 Oct 2014; Subscribe; 61; Subscribe; Subscribe
SPM7LX10D70310050: 23 Oct 2014; Subscribe; 93; Subscribe; Subscribe
SPM7LX10D70310049: 21 Oct 2014; Subscribe; 14; Subscribe; Subscribe
SPM7LX10D70310048: 15 Oct 2014; Subscribe; 4; Subscribe; Subscribe
SPM7LX10D70310042: 26 Sep 2014; Subscribe; 254; Subscribe; Subscribe
SPM7LX10D70310041: 01 Aug 2014; Subscribe; 112; Subscribe; Subscribe
SPM7LX10D70310040: 08 Jul 2014; Subscribe; 147; Subscribe; Subscribe
SPM7LX10D70310039: 20 May 2014; Subscribe; 188; Subscribe; Subscribe
SPM7LX10D7031003801: 24 Apr 2014; Subscribe; 239; Subscribe; Subscribe
SPM7LX10D7031003701: 24 Dec 2013; Subscribe; 269; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 2520-01-474-3901 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 2520-01-474-3901

Related Documents 2520-01-474-3901 5+ Documents (More...)

Restrictions 2520-01-474-3901

Import and Export 2520-01-474-3901

End Users 2520-01-474-3901

Approved Sources 2520-01-474-3901

Datasheet 2520-01-474-3901

Weapon Systems (WSDC) 2520-01-474-3901

DLA Procurement Analysis 2520-01-474-3901

Management Data 2520-01-474-3901

Army

Navy

Marine Corps

Similar Supply Items to 2520-01-474-3901

Freight Information 2520-01-474-3901

Packaging Data 2520-01-474-3901

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 2520-01-474-3901 Most Recent 69 Records

Contracting Technical Data File (CTDF) 2520-01-474-3901 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
