2520-01-306-3174

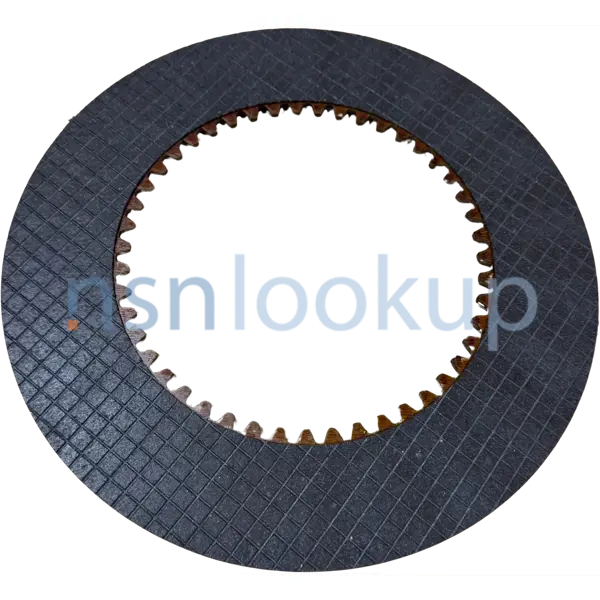

Xtg-411-4 Transfer Case Torque Converter Clutch Disk
2520013063174 013063174 8351722 11650306 1-06534 MPC 6823
A solid circular disk of wire-woven lining material or ceramic and metal substance and the like, molded to one or both sides and fastened directly or indirectly to the center spline or hub, which receives and transmits motion or power by engagement with the pressure plate assembly and the flywheel or the like. Includes dry or wet type disk, and may include damper springs. This item is designed to be used on tanks, automobiles, construction equipment, and the like in conjunction with a CLUTCH ASSEMBLY, FRICTION. View more Vehicular Clutch Disk
March 2025
23
Marketplace 2520-01-306-3174
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 2520-01-306-3174 5+ Documents (More...)
Quotation 8351722 DISK,CLUTCH,VEHICULAR 5 EA NS Request Quotation 2520-01-306-3174 DISK,CLUTCH,VEHICULAR
RQST NE Updated Every Day 2520-01-306-3174 RQST Updated Every Day 2520-01-306-3174 RQST NE Related
RQST NE Updated Every Day 2520-01-306-3174 RQST Updated Every Day 2520-01-306-3174 RQST NE Related
Documents 2520-01-306-3174 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-25/fsc-2520/us 2520
RQST NE Updated Every Day 2520-01-306-3174 RQST Updated Every Day 2520-01-306-3174 RQST NE Related
Documents 2520-01-306-3174 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-25/fsc-2520/us 2520
Vehicular Clutch Disk 2520013063174 013063174 Upgrade your Account Upgrade 2520-01-306-3174Vehicular
Clutch Disk2520013063174 013063174 8351722 11650306 Details... 106534 DISK,CLUTCH,VEHICULAR 1 EA NS
Vehicular Clutch Disk 2520013063174 013063174 $1 a day Upgrade your Account Upgrade 2520-01-306
-3174Vehicular Clutch Disk2520013063174 013063174 8351722 CLUTCH,VEHICULAR 5 EA NS Request Quotation
Restrictions 2520-01-306-3174
2520-01-306-3174 is a Xtg-411-4 Transfer Case Torque Converter Clutch Disk that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 2520-01-306-3174
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2520-01-306-3174
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC01
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 May 2005
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Oct 2011
- Denmark (ZS01)
- Effective Date:
- 1 Jan 1996
- Norway (ZT01)
- Effective Date:
- 1 Aug 1995
Approved Sources 2520-01-306-3174
- Part Number
- Manufacturer
- Status
- 11650306
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Source Control
- Source Control
- 1-06534
- 13475 - Friction Holdings, Llc (Active)
- Primary Buy
- Primary Buy
- MPC 6823
- 9G780 - Friction Products Co. (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MPC 6823
- 79370 - The S K Wellman Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 8351722
- 81604 - Raymark Industries Inc Stratford Div (Obsolete)
- Advisory Reference
- Advisory Reference
- 8351722
- 73342 - Allison Transmission Inc (Active)
- Advisory Reference
- Advisory Reference
- MPC 6823
- 7R1P5 - Cmbf Products Inc (Active)
- Advisory Reference
- Advisory Reference
- 8351722
- 19207 - U S Army Tank Automotive Command (Active)
- Advisory Reference
- Advisory Reference
Datasheet 2520-01-306-3174
- Characteristic
- Specifications
- FIIG
- Specifications
- A521P0
- End Item Identification [AGAV]
- 2520-01-282-1228
- Construction [CQCF]
- Solid
- Design Type [APGF]
- Dry
- Disk Material [CYBJ]
- Steel
- Disk Type [BPLM]
- Internal Teeth
- Flexibility [FLEX]
- Rigid
- Outside Diameter [ABHE]
- 12.760 Inches Nominal
- Spline Type [AXYS]
- Involute
- Teeth Quantity Per Disk [BSQC]
- 47
Weapon Systems (WSDC) 2520-01-306-3174
DLA Procurement Analysis 2520-01-306-3174
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2520-01-306-3174
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jan 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 2520-01-306-3174
Freight Information 2520-01-306-3174
2520-01-306-3174 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 126840. A Sub NMFC of X. It has a NMFC Description of POWER TRANS BELT CLAMPS,GUIDES ETC. 2520-01-306-3174 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64280 which rates the freight between FCL and LCL. 2520-01-306-3174 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2520-01-306-3174 is not classified as a special type of cargo when transported by water. 2520-01-306-3174 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2520-01-306-3174
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb to 5lb, all dimensions less than 24"
- Above 110G
- MIL-PRF-16173, Grade 4, Transparent Film
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 12.0" H x -- W x -- L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 12.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 4, corrosion preventive, solvent cutback, cold application, transparent, non-tacky
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- 1/4 inch thick
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- MIL-PRF-121, Type II, Light Duty, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Open Solicitations 2520-01-306-3174 1 Records
Procurement History 2520-01-306-3174 3 Records
Contracting Technical Data File (CTDF) 2520-01-306-3174 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
