2520-00-898-4821
Vehicular Positive Clutch Half
2520008984821 008984821 2398242 45480 26094 4F45480 1934217 045480 208004-R1 B8QH-4455-A 875270
That portion of a CLUTCH,POSITIVE which transmits or receives motion or power by engagement with the mating member. View more Vehicular Positive Clutch Half
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
May 2023
May 2023
NATO Update Count
8
8
NATO Data Quality
Marketplace 2520-00-898-4821
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 2520-00-898-4821 5+ Documents (More...)
2398242 45480 26094 4F45480 1934217 045480 208004-R1 B8QH-4455-A 875270 That portion of a CLUTCH,POSITIVE
United States (US) 4. 2520-00-898-4821 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 208004-R1 RQST NE Updated Every Day 2520-00-898-4821 RQST NE Updated Every
United States (US) 4. 2520-00-898-4821 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 208004-R1 RQST NE Updated Every Day 2520-00-898-4821 RQST NE Updated Every
enable JavaScript in your web browser . 7330-22-621-4984Baking And Roasting Pan7330226214984 226214984 045480
2398242 45480 26094 4F45480 1934217 045480 https//www.nsnlookup.com /fsg-25/fsc-2520/us 2520-00-898-
4821 Vehicular Positive Clutch Half 2520008984821 898-4821Vehicular Positive Clutch Half2520008984821
2398242 45480 26094 4F45480 1934217 045480 https//www.nsnlookup.com /fsg-25/fsc-2520/us 2520-00-898-
4821 Vehicular Positive Clutch Half 2520008984821 898-4821Vehicular Positive Clutch Half2520008984821
JavaScript in your web browser . 4920-99-727-4279Electrical Ci Panel4920997274279 997274279 71-50-406 875270
Electrical Ci Panel 4920997274279997274279 MEDALS DAC 5 875270 0KDP7 - Kidde-Fenwal, Inc. https https
Vehicular Positive Clutch Half 2520008984821 Clutch Half2520008984821 008984821 2398242 45480 26094
Electrical Ci Panel 4920997274279997274279 MEDALS DAC 5 875270 0KDP7 - Kidde-Fenwal, Inc. https https
Vehicular Positive Clutch Half 2520008984821 Clutch Half2520008984821 008984821 2398242 45480 26094
Upgrade for $1 a day Upgrade your Account Upgrade 5340-01-576-6322Spring Holder5340015766322 015766322 2398242
Vehicular Positive Clutch Half 2520008984821 Upgrade your Account Upgrade 2520-00-898-4821Vehicular
Positive Clutch Half2520008984821 008984821 2398242 Details... 008984821.2520 CLUTCH HALF,POSITIVE,VEHICULAR
Vehicular Positive Clutch Half 2520008984821 Upgrade your Account Upgrade 2520-00-898-4821Vehicular
Positive Clutch Half2520008984821 008984821 2398242 Details... 008984821.2520 CLUTCH HALF,POSITIVE,VEHICULAR
how to enable JavaScript in your web browser . 5340-12-308-2933Loop Clamp5340123082933 123082933 P-875270
https//www.nsnlookup.com /fsg-53/fsc-5340/de 5340-12-308-2933 Loop Clamp 5340123082933123082933 P-875270
Vehicular Positive Clutch Half 2520008984821 -308-2932 Part NumberManufacturerStatusP-875270 https
https//www.nsnlookup.com /fsg-53/fsc-5340/de 5340-12-308-2933 Loop Clamp 5340123082933123082933 P-875270
Vehicular Positive Clutch Half 2520008984821 -308-2932 Part NumberManufacturerStatusP-875270 https
Restrictions 2520-00-898-4821
2520-00-898-4821 is a Vehicular Positive Clutch Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 2520-00-898-4821
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2520-00-898-4821
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- HD
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 2520-00-898-4821
- Part Number
- Manufacturer
- Status
- 45480
- Manufacturer
- 81118 - Eaton Corporation (Active)
- Primary Buy
- Primary Buy
- 26094
- 81495 - Koehring Cranes, Inc (Active)
- Secondary Buy
- Secondary Buy
- 4F45480
- 23382 - Fwd Seagrave Holdings Lp (Active)
- Secondary Buy
- Secondary Buy
- 1934217
- 12204 - Chrysler Realty Company Llc (Active)
- Secondary Buy
- Secondary Buy
- 045480
- 81118 - Eaton Corporation (Active)
- Secondary Buy
- Secondary Buy
- 208004-R1
- 89346 - Navistar Intl Corp Truck Br Ohio (Active)
- Secondary Buy
- Secondary Buy
- B8QH-4455-A
- 23040 - Ford Motor Co Ford Parts And Service (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2398242
- 24617 - General Motors Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 875270
- 65282 - White Motor Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 2398242
- 7X677 - General Motors Llc (Active)
- Advisory Reference
- Advisory Reference

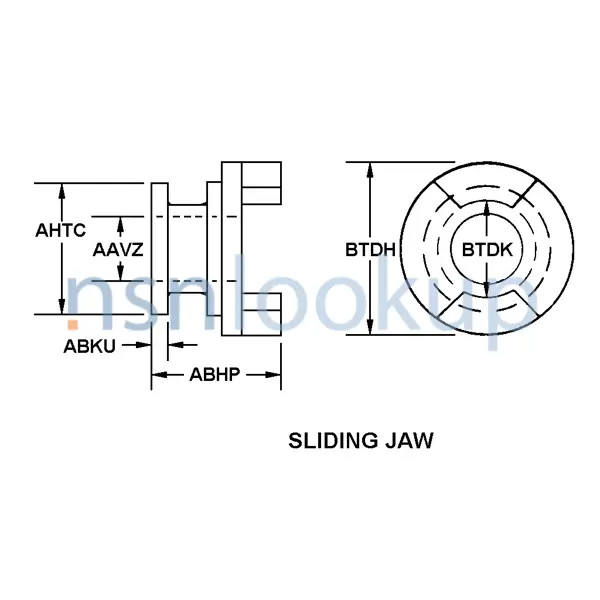

Datasheet 2520-00-898-4821
- Characteristic
- Specifications
- FIIG
- Specifications
- A521Z0
- Style Designator [STYL]
- Sliding Jaw
- Groove Diameter [AAVZ]
- 3.435 Inches Nominal
- Overall Length [ABHP]
- 1.150 Inches Nominal
- Flange Outside Diameter [AHTC]
- 3.998 Inches Nominal
- Jaw Circle Outside Diameter [BTDH]
- 4.998 Inches Nominal
- Jaw Circle Inside Diameter [BTDK]
- 4.115 Inches Nominal
- Bore Shape [AGZD]
- Involute Spline
- Spline Quantity [ABSA]
- 20
- Features Provided [CBBL]
- Casehardened
Weapon Systems (WSDC) 2520-00-898-4821
DLA Procurement Analysis 2520-00-898-4821
Management Data 2520-00-898-4821
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 2520-00-898-4821
Freight Information 2520-00-898-4821
2520-00-898-4821 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019940. A Sub NMFC of X. It has a NMFC Description of AUTO TRANSMISSIONS R CLUTCHES. 2520-00-898-4821 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08170 which rates the freight between FCL and LCL. 2520-00-898-4821 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2520-00-898-4821 is not classified as a special type of cargo when transported by water. 2520-00-898-4821 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2520-00-898-4821
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- --
- --
- --
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 2520-00-898-4821 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
