2520-00-894-9535
Transfer Assembly And Container Xtg-411-2A
2520008949535 008949535 5703078
June 2025
25
Product Information 2520-00-894-9535

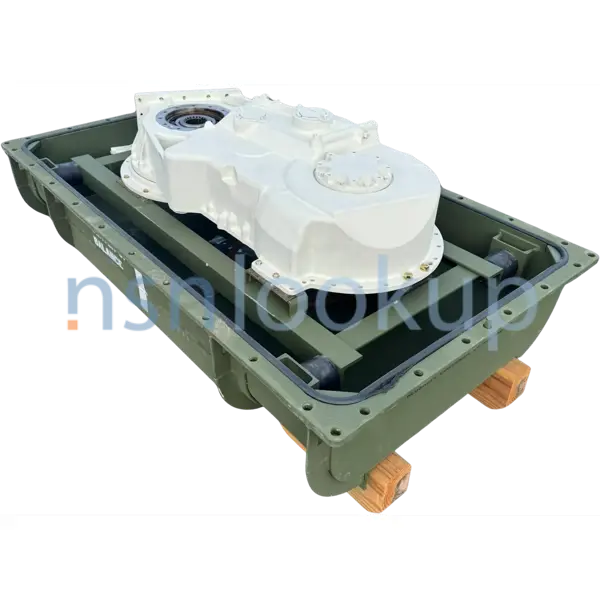

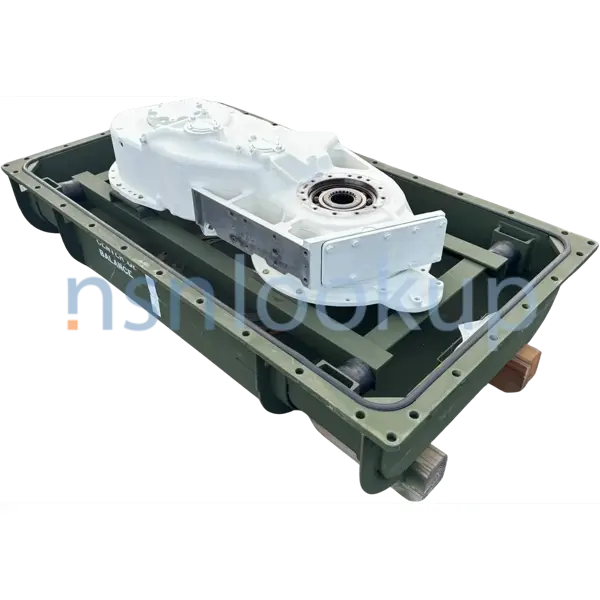

XTG-411-2A Transfer Case with Container
Used on vehicles:
- M109 Howitzer
- M109A2
- M109A3
- M109A4
- M992 FAASV CAT (Carrier Ammunition Tracked)
- M992A1 FAASV CAT
Includes:

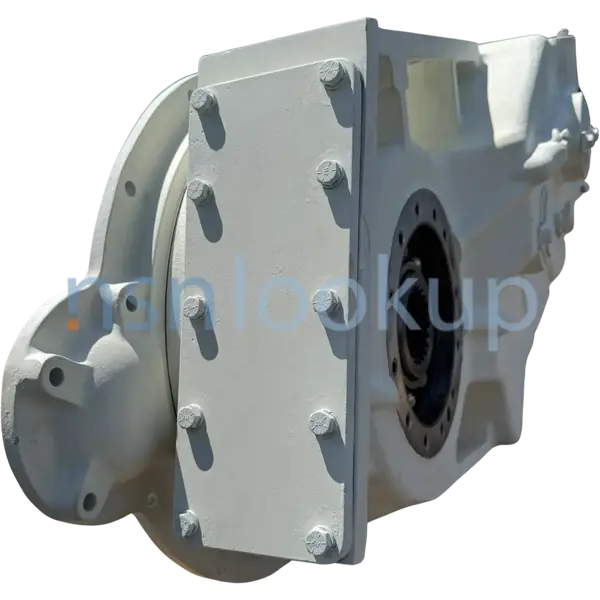

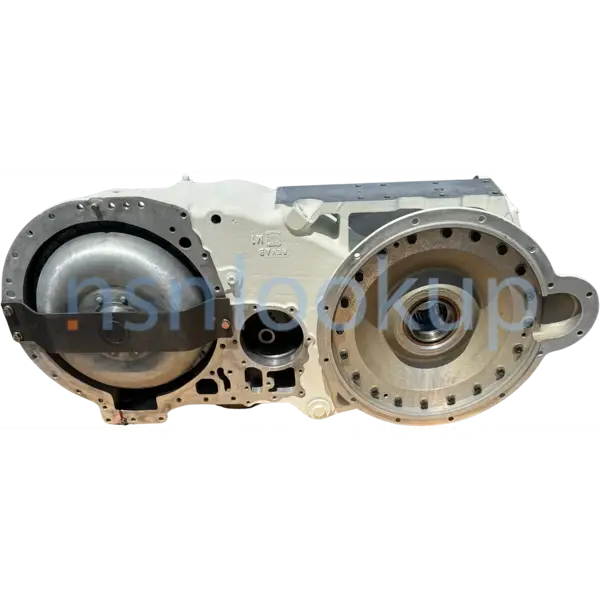

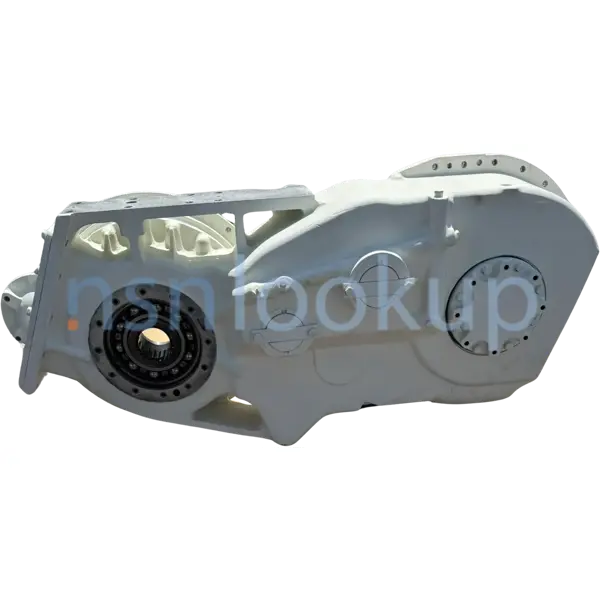

- Input Transfer Assembly (Transfer Case),XTG-411-2A Transmission Part Number 8351098 NSN 2520-00-733-4744

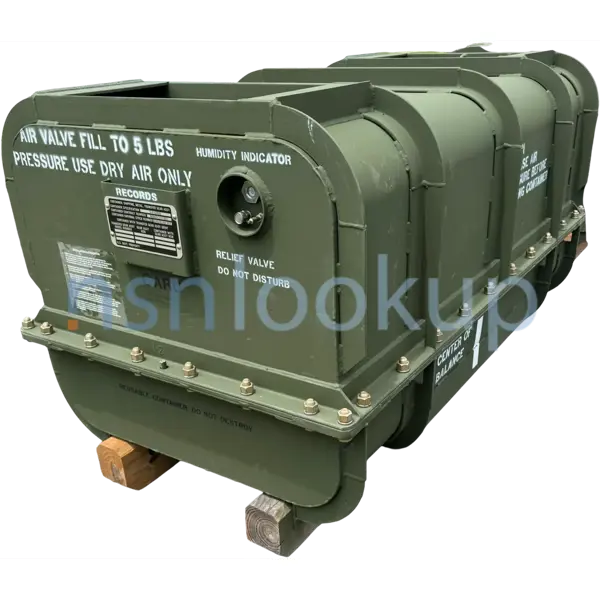

- Container,Reusable Metal Part Number 8351983 NSN 8145-00-064-5935
Marketplace 2520-00-894-9535
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 2520-00-894-9535 4+ Documents (More...)
United States (US) 4. 2520-00-894-9535 Marketplace Restrictions Approved Sources Datasheet Management
TRANSFER ASSEMBLY A 1 EA NS Request Quotation Subscribe to View Vendor Details... 5703078 TRANSFER
6 2520-00-894-9535 Photo 4/6 2520-00-894-9535 Photo 5/6 2520-00-894-9535 Photo 6/6 - - - - - - 1.
RQST NE Updated Every Day 2520-00-894-9535 RQST Updated Every Day 2520-00-894-9535 RQST NE Related
-00-733-4744 - Container,Reusable Metal Part Number 8351983 NSN 8145-00-064-5935 Marketplace 2520-00-894-9535
Restrictions 2520-00-894-9535
2520-00-894-9535 is a Transfer Assembly And Container Xtg-411-2A The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 2520-00-894-9535
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2520-00-894-9535
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BDBF
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Jan 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Sep 2009
Approved Sources 2520-00-894-9535
- Part Number
- Manufacturer
- Status
- 5703078
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 2520008949535
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2520-00-894-9535
- Characteristic
- Specifications
- FIIG
- Specifications
- A23900
- General Characteristics Item Description [TEXT]
- Transfer Assembly,Xtg-411 Transmission P/N8351098 Container,Reusable Metal P/N8351983 2 Bolts Hexagon Head P/Nms35297-61 12 Lockwashers P/Nms35337-27 2 Nuts Hexagon P/Nms35690-605 1 Bolt Hexagon Head P/Nms35297-85 1 Lockwasher P/N Ms35337-28 10 Bolts Hexagon Head P/N Ms35291-64 1 Gasket P/N8351282
Management Data 2520-00-894-9535
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- F
- When Exhausted Use 2520-01-282-1228
- F
- Department of the Army (DA)
- L
- R
- Refer To Net Price 27596.00
- NET PRICE 27596.00
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 2520-00-894-9535
Freight Information 2520-00-894-9535
2520-00-894-9535 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 132330. A Sub NMFC of X. It has a NMFC Description of TRANSMISSIONS/CLUTCHES/PARTS,NOI. 2520-00-894-9535 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64340 which rates the freight between FCL and LCL. 2520-00-894-9535 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72F for ocean manifesting and military sealift. 2520-00-894-9535 is not classified as a special type of cargo when transported by water. 2520-00-894-9535 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2520-00-894-9535
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 63.9" H x 36.9" W x 35.9" L
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 63.9" H x 36.9" W x 35.9" L
- --
- --
- --
- Special Requirements
- 63.9" H x 36.9" W x 35.9" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
