2510-01-580-3796
Nonskid Metallic Tread
2510015803796 015803796 12422092-001 12422092
The upper, horizontal part of a step upon which the foot is placed, or a section placed upon or set into a deck, walkway, or coaming, made of metal, and corrugated or otherwise specially constructed to resist skidding. May have added material or inserts such as wood strip or abrasive particles to prevent sparking. Excludes door saddle, floor plates, gratings and elevator sills. View more Nonskid Metallic Tread
May 2023
2
Marketplace 2510-01-580-3796
Request a Quotation from participating marketplace vendors
Related Documents 2510-01-580-3796 1+ Documents (More...)
BUY NE FedMall Updated Every Day 2510-01-580-3796 RQST NE Updated Every Day 2510-01-580-3796 RQST
Updated Every Day 2510-01-580-3796 RQST NE Related Documents 2510-01-580-3796 1+ Documents ( More...
Restrictions 2510-01-580-3796
2510-01-580-3796 is a Nonskid Metallic Tread that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2510-01-580-3796
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2510-01-580-3796
- US Army (A920)
- Effective Date:
- 1 Dec 2009
- Supplementary Receivers:
- AZ
Approved Sources 2510-01-580-3796
- Part Number
- Manufacturer
- Status
- 12422092-001
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 12422092
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 2510-01-580-3796
- Characteristic
- Specifications
- FIIG
- Specifications
- T231-C

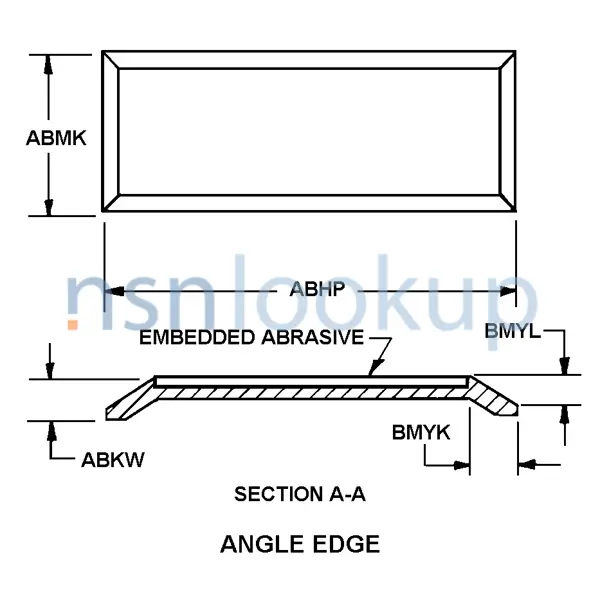

- Style Designator [STYL]
- Angle Edge
- Overall Length [ABHP]
- 6210.3 Millimeters Nominal
- Overall Height [ABKW]
- 44.5 Millimeters Nominal
- Overall Width [ABMK]
- 215.9 Millimeters Nominal
- Bevel Length [BMYK]
- 45.9 Millimeters Nominal
- Basic Material [AMSP]
- Steel
- Mounting Feature [BJST]
- Not Included
- Supplementary Features [SUPP]
- Nha-12423316, 12423206;Material Doc Astm A570/A570m, Gr 50, 0.090 In Thk Or Astm A1011a1011m, Gr 50, 0.090 (13 Ga) In Thk Or Astm A1008/A1008m, Gr 50, 0.090 In Thk
- Part Name Assigned By Controlling Agency [CXCY]
- Plank, Roadside, Mtv Lwb
- End Item Identification [AGAV]
- 2320-01-354-4527, Chassis,Truck
DLA Procurement Analysis 2510-01-580-3796
Management Data 2510-01-580-3796
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 2510-01-580-3796
Freight Information 2510-01-580-3796
2510-01-580-3796 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019100. A Sub NMFC of X. It has a NMFC Description of AUTOMOBILS:PARTS,NOI. 2510-01-580-3796 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08910 which rates the freight between FCL and LCL. 2510-01-580-3796 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 2510-01-580-3796 is not classified as a special type of cargo when transported by water. 2510-01-580-3796 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2510-01-580-3796 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
