2510-01-542-9967

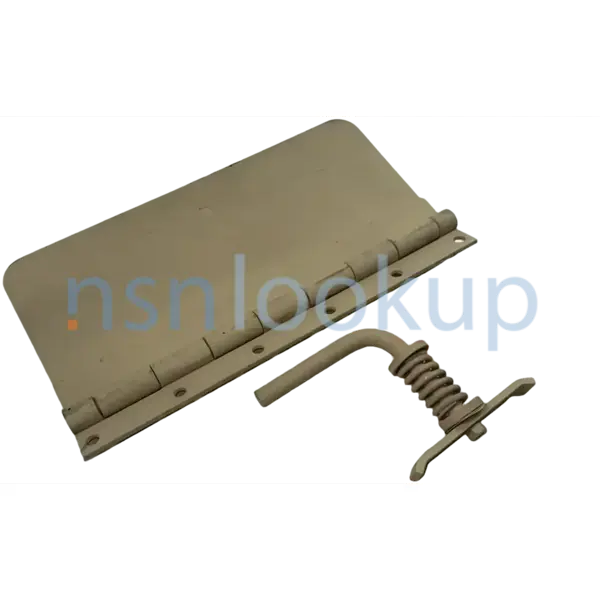

Vehicle Hatch Door
2510015429967 015429967 12501963
A rigid metallic item of various shapes specifically designed to cover an ingress or egress opening of a vehicular hull, turret, or the like. It may be armor plated. It may be either hinged or of a drop type and may have a quick release or other type latching device. Excludes COVER, ACCESS and DOOR, METAL, SWINGING. See also HATCH, MARINE. View more Vehicle Hatch Door
May 2023
4
Marketplace 2510-01-542-9967
Request a Quotation from participating marketplace vendors
Related Documents 2510-01-542-9967 2+ Documents (More...)
Restrictions 2510-01-542-9967
2510-01-542-9967 is a Vehicle Hatch Door that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2510-01-542-9967
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2510-01-542-9967
- US Army (A920)
- Effective Date:
- 1 Jan 2010
- Former MOE Rule:
- A204
- Supplementary Receivers:
- AZ
Approved Sources 2510-01-542-9967
- Part Number
- Manufacturer
- Status
- 12501963
- Manufacturer
- 31902 - Vse Corporation (Active)
- Primary Buy
- Primary Buy
- 12501963
- 19207 - U S Army Tank Automotive Command (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2510-01-542-9967
- Characteristic
- Specifications
- FIIG
- Specifications
- T305-M
- End Item Identification [AGAV]
- M967a2p1 And M969a3p1
- Material [MATT]
- Steel
- Mounting Method [AXGY]
- Hinge
- Mounting Position [BBJX]
- Side Panel
- Part Name Assigned By Controlling Agency [CXCY]
- Door "A" Assembly Curbside (Aoa)
- Shape [SHPE]
- Rectangular
- Overall Height [ABKW]
- 15.880 Inches Nominal
- Overall Length [ABHP]
- 6.860 Inches Nominal
Weapon Systems (WSDC) 2510-01-542-9967
DLA Procurement Analysis 2510-01-542-9967
Management Data 2510-01-542-9967
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- PV
- Other Automotive Categories
Semi-Trailer, Prime Mover, 5 ton
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 2510-01-542-9967
Freight Information 2510-01-542-9967
2510-01-542-9967 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 191820. A Sub NMFC of X. It has a NMFC Description of VEHICLE PTS:FRT TRAILER PARTS NOI. 2510-01-542-9967 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 93955 which rates the freight between FCL and LCL. 2510-01-542-9967 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 585 for ocean manifesting and military sealift. 2510-01-542-9967 is not classified as a special type of cargo when transported by water. 2510-01-542-9967 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2510-01-542-9967 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
