2510-01-186-3107
Vehicular Cowl Panel
2510011863107 011863107 12338716 5575794 12338716G1 2510PL0789412
INC: 77777
September 2025
21
Marketplace 2510-01-186-3107
Request a Quotation from participating marketplace vendors
Related Documents 2510-01-186-3107 5+ Documents (More...)
COWL PANEL,VEHICULAR 2 EA NS Request Quotation Subscribe to View Vendor Details... 12338716 COWL
RQST NE Updated Every Day 2510-01-186-3107 RQST Updated Every Day 2510-01-186-3107 RQST NE Related
from participating marketplace vendors Request Updated Every Day 1-5574877 RQST NE Updated Every Day 5575794
Vehicular Cowl Panel 2510011863107 011863107 Upgrade your Account Upgrade 2510-01-186-3107Vehicular
Restrictions 2510-01-186-3107
2510-01-186-3107 is a Vehicular Cowl Panel that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2510-01-186-3107
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2510-01-186-3107
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBS
- US Air Force (FGGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FGAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Jun 2004
- Slovenia (WL01)
- Effective Date:
- 1 Feb 2005
- Poland (WP01)
- Effective Date:
- 1 Jun 2011
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Canada (ZC01)
- Effective Date:
- 1 Jul 2011
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Denmark (ZS01)
- Effective Date:
- 1 Jul 2000
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
Approved Sources 2510-01-186-3107
- Part Number
- Manufacturer
- Status
- 12338716
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 5575794
- 34623 - Am General Llc (Active)
- Secondary Buy
- Secondary Buy
- 12338716G1
- 34623 - Am General Llc (Active)
- Secondary Buy
- Secondary Buy
- 2510PL0789412
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 2510011863107
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 2510-01-186-3107
- Characteristic
- Specifications
- FIIG
- Specifications
- A23900
- General Characteristics Item Description [TEXT]

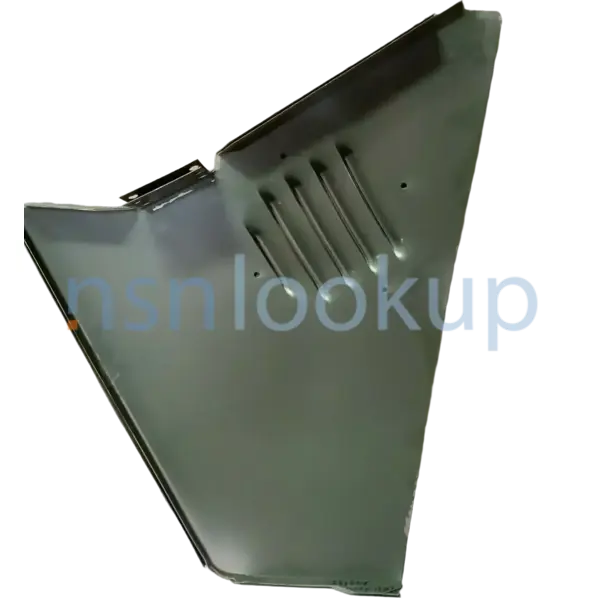

- 5Alum Matl; Irregular Shaped; Right Side Outer; 0.060 Ins Thk; O/A Height 27.580 Ins; O/A Width 19.280 Ins; 5 Air Vent Louvers Equally Spaced; 4 Holes Around Louvers 0.250 In. Dia On A 7.460 Bolt Hole Circle; 4 Holes On Mounting Ear 0.340 Ins Dia
- End Item Identification [AGAV]
- Truck 1-1/4 Ton,All Chmmwv's
Weapon Systems (WSDC) 2510-01-186-3107
DLA Procurement Analysis 2510-01-186-3107
- Last Stock Position:
- 84 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 2510-01-186-3107
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 2510-01-186-3107
Freight Information 2510-01-186-3107
2510-01-186-3107 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 013120. A Sub NMFC of F. It has a NMFC Description of ALUMINUM ARTICLE NOI SUB 6. 2510-01-186-3107 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 2510-01-186-3107 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 05380 which rates the freight between FCL and LCL. 2510-01-186-3107 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 2510-01-186-3107 is not classified as a special type of cargo when transported by water. 2510-01-186-3107 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2510-01-186-3107
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 30.0" H x 22.0" W x 6.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 30.0" H x 22.0" W x 6.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- ASTM-D4727, Fiberboard used as Pads, Cells, Die-cuts or Sleeves
- --
- ASTM - D5118, Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 2510-01-186-3107 2 Records
Contracting Technical Data File (CTDF) 2510-01-186-3107 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
