2510-00-801-6691

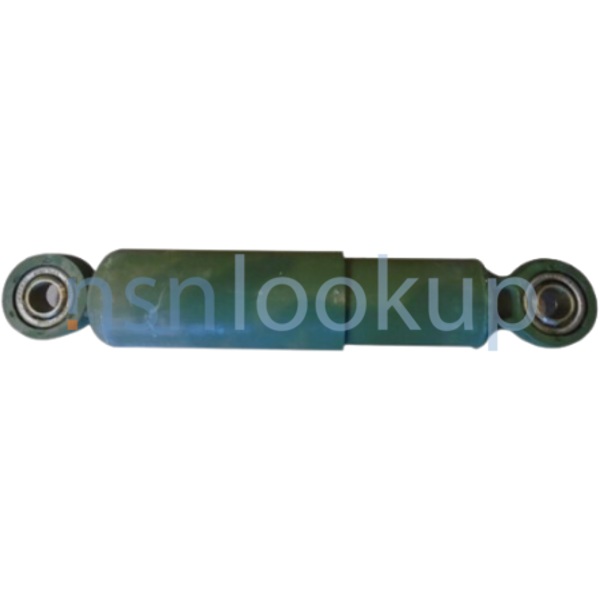

Direct Action Shock Absorber
2510008016691 008016691 10920696 X11189 5793070061 2540008016691
A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION. View more Direct Action Shock Absorber
November 2023
32
Marketplace 2510-00-801-6691
Request a Quotation from participating marketplace vendors
Related Documents 2510-00-801-6691 5+ Documents (More...)
Direct Action Shock Absorber 2510008016691 https//www.nsnlookup.com /nato/nato-stock-numbers/inc
2510-01-190-3862 Direct Action Shock Absorber 70113-XRNCC: 5 | RNVC: 9 | DAC: 6 26 Sep 1984 2510-00-801-6691
Restrictions 2510-00-801-6691
2510-00-801-6691 is a Direct Action Shock Absorber that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2510-00-801-6691
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2510-00-801-6691
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2004
- Spain (YB01)
- Effective Date:
- 1 Aug 1995
- Israel (YD01)
- Effective Date:
- 1 Jul 2016
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Mar 2014
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jul 2000
Approved Sources 2510-00-801-6691
- Part Number
- Manufacturer
- Status
- 10920696
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- X11189
- 76445 - Tenneco Inc (Active)
- Secondary Buy
- Secondary Buy
- 5793070061
- G2780 - Mengia S.A. (Active)
- Secondary Buy
- Secondary Buy
- 2540008016691
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2510-00-801-6691
- Characteristic
- Specifications
- FIIG
- Specifications
- A07200
- Operation Method [APHE]
- Hydraulic
- Piston End Connection Style [BXYS]
- Bearing, Tapered
- Piston End Nominal Largest Inside Diameter [CXKY]
- 1.127 Inches
- Piston End Nominal Outside Diameter [CXLB]
- 3.375 Inches
- Piston End Nominal Thickness [CXLF]
- 1.540 Inches
- Cylinder End Nominal Largest Inside Diameter [CXPB]
- 1.127 Inches
- Cylinder End Nominal Outside Diameter [CXPG]
- 3.375 Inches
- Cylinder End Nominal Thickness [CXPM]
- 1.540 Inches
- Protective Shield Type [CXFW]
- Stone
DLA Procurement Analysis 2510-00-801-6691
Management Data 2510-00-801-6691
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Feb 2010
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2009
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued W/O Replacement
- V
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 2510-01-303-2933
- Z
Navy
- Cognizance:
- 9C
NATO Stock Numbers Related to 2510-00-801-6691
Freight Information 2510-00-801-6691
2510-00-801-6691 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019500. A Sub NMFC of X. It has a NMFC Description of AUTO SHOCK ABSORBERS R PARTS. 2510-00-801-6691 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 2510-00-801-6691 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 09030 which rates the freight between FCL and LCL. 2510-00-801-6691 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 581 for ocean manifesting and military sealift. 2510-00-801-6691 is not classified as a special type of cargo when transported by water. 2510-00-801-6691 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2510-00-801-6691
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Vendor's Setup or Folding Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Vendor's Fiberboard Box
Contracting Technical Data File (CTDF) 2510-00-801-6691 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
