2510-00-690-2756

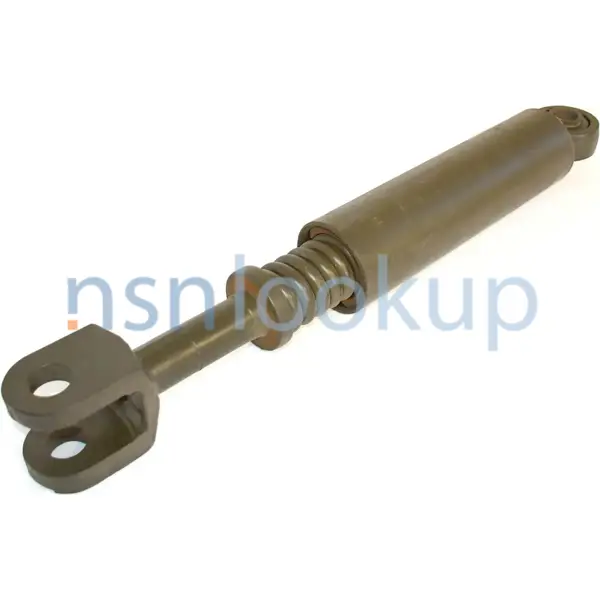

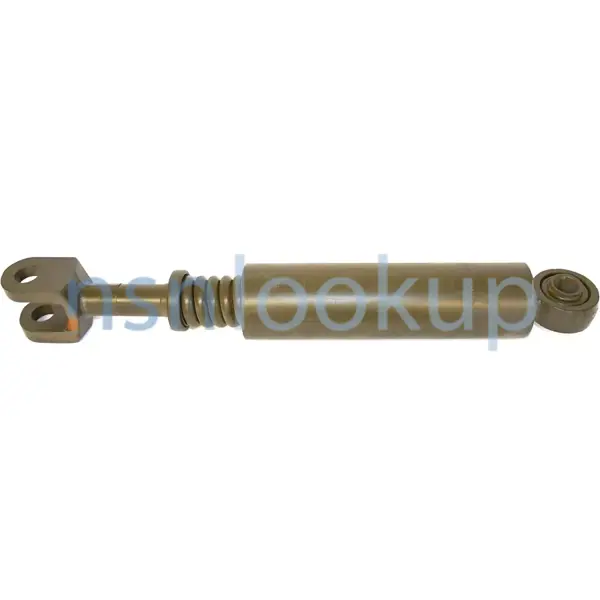

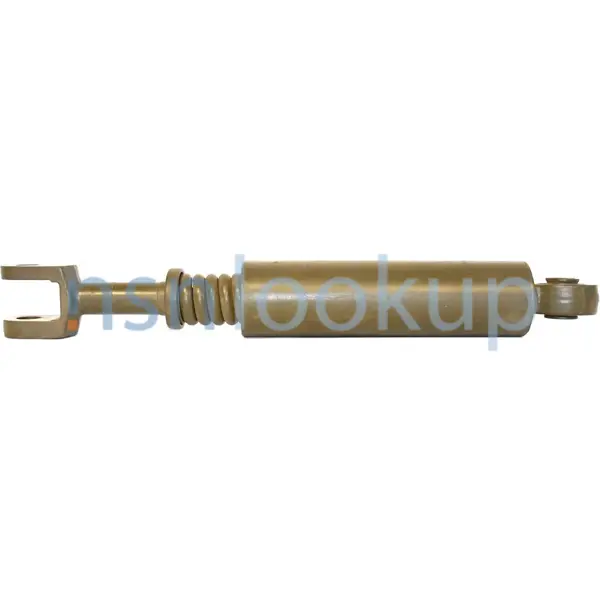

Direct Action Shock Absorber
2510006902756 006902756 8382077
A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION. View more Direct Action Shock Absorber
July 2025
21
Marketplace 2510-00-690-2756
Request a Quotation from participating marketplace vendors
Related Documents 2510-00-690-2756 5+ Documents (More...)
2510-00-690-2756 (Identification) 5/6 NSN 2510-00-690-2756 (Identification) 6/6 - - - - - - 1.
RQST NE Updated Every Day 2510-00-690-2756 RQST Updated Every Day 2510-00-690-2756 RQST NE Related
Restrictions 2510-00-690-2756
2510-00-690-2756 is a Direct Action Shock Absorber that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2510-00-690-2756
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2510-00-690-2756
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jun 2006
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 2510-00-690-2756
- Part Number
- Manufacturer
- Status
- 8382077
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 2510-00-690-2756
- Characteristic
- Specifications
- FIIG
- Specifications
- A07200
- Operation Method [APHE]
- Hydraulic

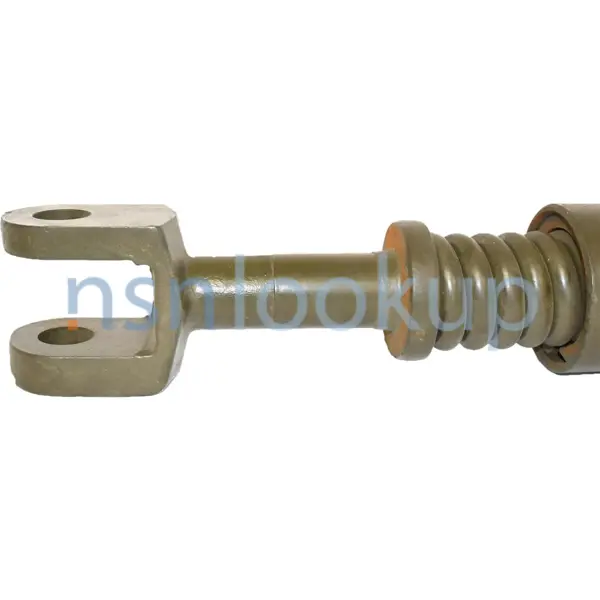

- Piston End Connection Style [BXYS]
- Fork
- Piston End Nominal Fork Arm Thickness [CXLX]
- 0.685 Inches
- Piston End Nominal Right Fork Arm Thickness [CXMB]
- 0.873 Inches
- Piston End Nominal Fork Span Width [CXMF]
- 2.005 Inches
- Cylinder End Connection Style [BYBF]
- Bearing
- Cylinder End Nominal Inside Diameter [CXNW]
- 0.750 Inches
- Cylinder End Nominal Outside Diameter [CXPG]
- 2.375 Inches
- Cylinder End Nominal Thickness [CXPM]
- 1.469 Inches
Similar Supply Items to 2510-00-690-2756
Freight Information 2510-00-690-2756
2510-00-690-2756 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019500. A Sub NMFC of X. It has a NMFC Description of AUTO SHOCK ABSORBERS R PARTS. 2510-00-690-2756 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 2510-00-690-2756 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 09030 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 581 for ocean manifesting and military sealift. 2510-00-690-2756 is not classified as a special type of cargo when transported by water. 2510-00-690-2756 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
