2510-00-484-8515
Leaf Spring Assembly Shackle
2510004848515 004848515 65A81C365
An open link of various shapes with extended legs, usually having transverse holes in the legs to accommodate a retaining pin, bolt, bushing, or the like, or having threaded legs for a plate attachment, and having a connection facility opposite the legs so designed to attach a SPRING ASSEMBLY, LEAF to a rigid supporting hanger on a vehicle. Excludes SHACKLE and CLEVIS, ROD END. View more Leaf Spring Assembly Shackle
May 2023
15
Marketplace 2510-00-484-8515
Request a Quotation from participating marketplace vendors
Related Documents 2510-00-484-8515 1+ Documents (More...)
RQST NE Updated Every Day 2510-00-484-8515 RQST Updated Every Day 2510-00-484-8515 RQST NE Related Documents
2510-00-484-8515 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-25/fsc-2510/us 2510-00-484-8515
Restrictions 2510-00-484-8515
2510-00-484-8515 is a Leaf Spring Assembly Shackle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2510-00-484-8515
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2510-00-484-8515
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 2510-00-484-8515
- Part Number
- Manufacturer
- Status
- 65A81C365
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
- 65A81C365
- 79343 - Asrc Federal Facilities Logistics, (Active)
- Secondary Buy
- Secondary Buy
- 65A81C365
- 93568 - Harsco Corp Bmy-Combat Systems Div (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 2510-00-484-8515
- Characteristic
- Specifications
- FIIG
- Specifications
- A02900

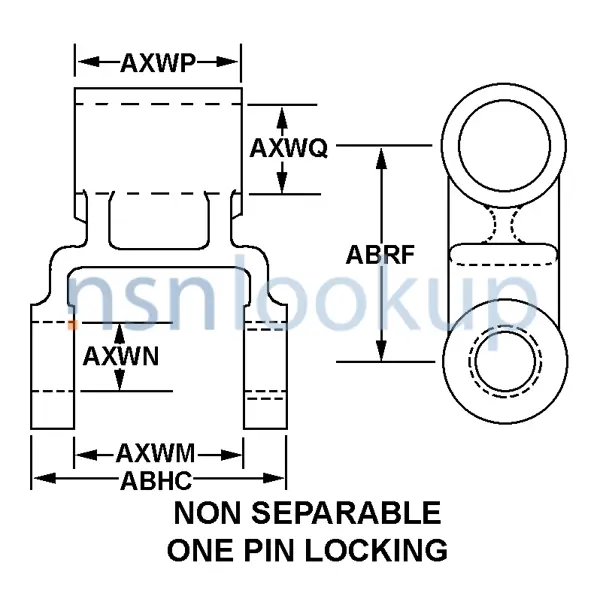

- Attaching End Hole Diameter [AXWQ]
- 0.571 Inches Nominal
- Attaching End Width [AXWP]
- 2.656 Inches Minimum And 2.687 Inches Maximum
- Center To Center Distance Between Holes [ABRF]
- 5.000 Inches Nominal
- Features Provided [CBBL]
- Bushing
- Material [MATT]
- Steel Overall
- Leg Hole Diameter [AXWN]
- 0.562 Inches Minimum And 0.572 Inches Maximum
- Overall Width [ABHC]
- 2.656 Inches Minimum And 2.688 Inches Maximum
- Width Between Legs [AXWM]
- 2.062 Inches Nominal
- Style Designator [STYL]
- Non Separable One Pin Locking
- Surface Treatment [SFTT]
- Paint Overall
Weapon Systems (WSDC) 2510-00-484-8515
DLA Procurement Analysis 2510-00-484-8515
Management Data 2510-00-484-8515
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 2510-00-484-8515
Freight Information 2510-00-484-8515
2510-00-484-8515 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019470. A Sub NMFC of X. It has a NMFC Description of AUTO SHACKLES. 2510-00-484-8515 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 09020 which rates the freight between FCL and LCL. 2510-00-484-8515 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 586 for ocean manifesting and military sealift. 2510-00-484-8515 is not classified as a special type of cargo when transported by water. 2510-00-484-8515 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
