2320-01-371-9578

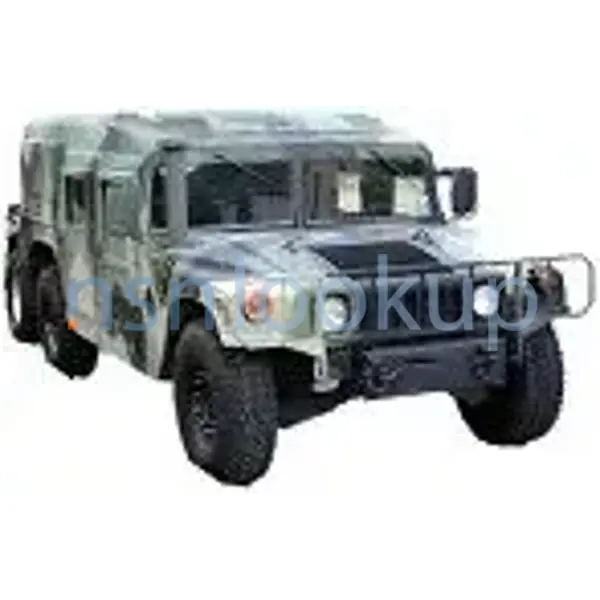

Cargo/Troop Carrier 1-1/4 Ton 4X4 W/E W/Winch M1038a1 Hmmwv (Na) Truck Utility
2320013719578 013719578 8750326
A truck with an open body, usually with fabric top and usually equipped with removable seat(s) transverse to its longitudinal axis, designed to transport light cargo. View more Utility Truck
July 2025
9
Marketplace 2320-01-371-9578
Request a Quotation from participating marketplace vendors
Related Documents 2320-01-371-9578 2+ Documents (More...)
United States (US) 4. 2320-01-371-9578 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 2320-01-371-9578
2320013719578 013719578,8750326 ) https//www.nsnlookup.com /fsg-23/fsc-2320/us https//www.nsnlookup.com
Datasheet 4520-01-532-4463 CharacteristicSpecificationsFIIGA23900End Item Identification [AGAV]2320-01-371-9578
Restrictions 2320-01-371-9578
IUID Required
2320-01-371-9578 is a Cargo/Troop Carrier 1-1/4 Ton 4X4 W/E W/Winch M1038a1 Hmmwv (Na) Truck Utility that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Non-Critical Munitions List Item or a Non-Sensitive Commerce Control List Item and cannnot be in the possession of any party outside of the USA who is a not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2320-01-371-9578
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2320-01-371-9578
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- US Air Force (FGTC)
- Effective Date:
- 1 May 1994
- Spain (YB01)
- Effective Date:
- 1 Jul 2003
- Morocco (YP01)
- Effective Date:
- 1 Jun 2014
Approved Sources 2320-01-371-9578
- Part Number
- Manufacturer
- Status
- 8750326
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 2320-01-371-9578
- Characteristic
- Specifications
- FIIG
- Specifications
- A37500
- Drive Axle Location [CNTK]
- Front And Rear
- Drive Wheel Quantity [AGDJ]
- 2
- End Item Identification [AGAV]
- High Mobility Multi-Purpose Wheeled Vehicle (Hmmwv)
- Axle Drive Type [CNTL]
- Conventional
- Axle Speed Quantity [CNTM]
- 2
- Battery Quantity [AEXR]
- 2
- Battery Voltage Rating In Volts [ANLJ]
- 24.0
- Brake Actuation Method [CNYW]
- Hydraulic
- Cylinder Quantity [AAXZ]
- 8
- Engine Power Rating [CXQS]
- 160.0 Horsepower
- Engine Brake Horsepower [ALKK]
- 160.0
- Engine Horsepower Rating Speed In Rpm [ALKL]
- 3400.0
- Forward Speed Range Quantity [CNTX]
- 3
- Forward Speed Quantity Per Range [AXJF]
- 2
- Front Axle Engaging Mechanism Type [CNTP]
- Constant
- Front Wheel Tread Nominal Width [CNTS]
- 86.00 Inches
- Gypsy Head [CHZB]
- Not Included
- Multifuel Design Feature [CNTW]
- Not Included
- Nominal Wheelbase [CNTR]
- 130.00 Inches
- Power Divider Unit [CNTN]
- Not Included
- Prime Mover Type [AKDJ]
- Diesel Engine
- Rated Load Capacity [CNTJ]
- 3.20 Tons
- Rear Wheel Tread Nominal Width [CNTT]
- 86.00 Inches
- Seating Capacity [BTLY]
- 2
- Transmission Type [AXJD]
- Automatic
- Vehicle Maximum Gross Weight [CPKD]
- 7880.00 Pounds
- Wheel Quantity [AGDH]
- 4
- Winch Location [CNWB]
- Rear
- Winch Type [CNWC]
- Single Drum
Management Data 2320-01-371-9578
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Apr 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Sep 2016
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Mel=0%
- MEL=0%
- R
- Department of the Air Force (DF)
- F
- R
- Refer To S013808604
- S013808604
- R
- Department of the Air Force (DF)
- F
- R
- Refer To Serial-Vehicle
- SERIAL-VEHICLE
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- L
- Tactical Vehicles
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- N5
- Tactical Vehicles
High Mobility Multi-Purpose Wheeled Vehicle(HMMWV)
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Similar Supply Items to 2320-01-371-9578
Freight Information 2320-01-371-9578
2320-01-371-9578 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190450. A Sub NMFC of A. It has a NMFC Description of VEHICLES:(ATV) SUB1. 2320-01-371-9578 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 93443 which rates the freight between FCL and LCL. 2320-01-371-9578 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 867 for ocean manifesting and military sealift. 2320-01-371-9578 is not classified as a special type of cargo when transported by water. 2320-01-371-9578 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2320-01-371-9578
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Uncovered Space (Open Storage)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 186.0" H x 0.9" W x 72.0" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 186.0" H x 86.0" W x 60.0" L
- --
- --
- --
- Special Requirements
- 186.0" H x 86.0" W x 60.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
