2320-00-077-1617

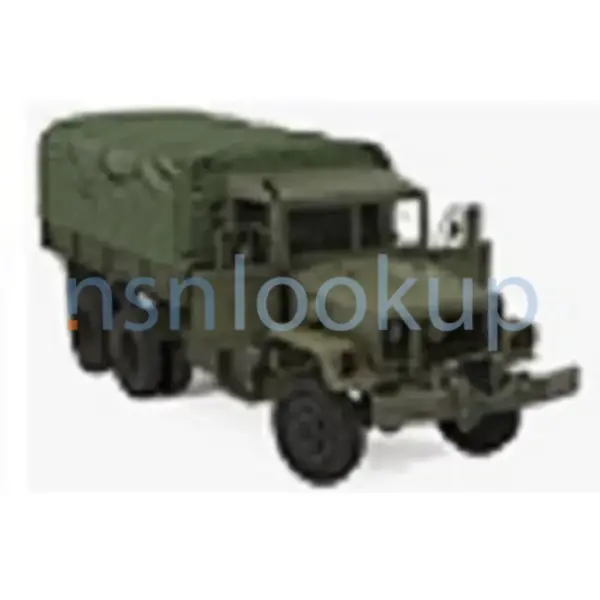

Cargo Truck
2320000771617 000771617 MILT46780 M35A2 8736582
A truck with either a box type body or a body having integral sides and front panel mounted on a chassis or articulated unit. It usually consists of a flat loading platform, tailgate, removable top bows, and tarpaulin. It may include side extensions or stakes. The rear wheels may be powered by a chain, an electric, hydraulic, and/or air motor(s), or conventional drive. View more Cargo Truck
May 2023
13
Marketplace 2320-00-077-1617
Request a Quotation from participating marketplace vendors
Related Documents 2320-00-077-1617 5+ Documents (More...)
United States (US) 4. 2320-00-077-1617 Marketplace Restrictions Approved Sources Datasheet Management
M35A2 TRUCK,CARGO 1 EA NS Request Quotation Subscribe to View Vendor Details... 2320-00-077-1617 TRUCK
Cargo Truck 2320000771617 000771617 Weapon Systems ( WSDC ) 2815-00-937-7835 Subscribe https//www.nsnlookup.com
EndThread Class [AAJD]2A 1St EndNominal Overall Length [CWFR]1.840 InchesSpecial Features [FEAT] 2320-00-077-1617
Cargo Truck 2320000771617 000771617 2320-00-077-1617 2320000771617 000771617 is a truck with either
Cargo Truck 2320000771617 000771617 2320-00-077-1617 2320000771617 000771617 is a truck with either
Restrictions 2320-00-077-1617
IUID Required
2320-00-077-1617 is a Cargo Truck that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2320-00-077-1617
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2320-00-077-1617
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- BDCL
- US Air Force (FGTC)
- Effective Date:
- 1 Apr 1991
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Morocco (YP01)
- Effective Date:
- 1 Jun 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Jan 2002
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2320-00-077-1617
- Part Number
- Manufacturer
- Status
- 8736582
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- MILT46780
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- M35A2
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 2320-00-077-1617
- Characteristic
- Specifications
- FIIG
- Specifications
- A37500
- Drive Axle Location [CNTK]
- Front And Rear
- Drive Wheel Quantity [AGDJ]
- 6
- Axle Drive Type [CNTL]
- Double Reduction
- Battery Quantity [AEXR]
- 2
- Battery Voltage Rating In Volts [ANLJ]
- 12.0
- Body Manufacturer Code And Model Number [CPJW]
- 19207 8332225
- Body Material [AAFZ]
- Steel And Wood
- Brake Actuation Method [CNYW]
- Air And Hydraulic
- Cab Roof Type [CNYT]
- Open
- Cab Door Quantity [CPLG]
- 2
- Cab Type [CNYS]
- Conventional
- Cargo Area Nominal Height [CNZR]
- 60.00 Inches
- Cargo Area Nominal Length [CNZP]
- 147.00 Inches
- Cargo Area Nominal Width [CNZQ]
- 88.00 Inches
- Chassis Manufacturer Code And Model Number [CPJX]
- 19207 M45a2
- Cylinder Quantity [AAXZ]
- 6
- Engine/Motor Manufacturer Code And Model Number [AGEA]
- 19207 Ld465-1
- Engine Brake Horsepower [ALKK]
- 140.0
- Engine Horsepower Rating Speed In Rpm [ALKL]
- 2600.0
- Features Provided [CBBL]
- Tailgate And Tarpaulin And Top Bows And Towing Pintle Hook And Trailer Brake Connection And Underwater Fording System
- Forward Speed Quantity [AXJH]
- 5
- Front Axle Engaging Mechanism Type [CNTP]
- Automatic
- Front Wheel Tread Nominal Width [CNTS]
- 67.75 Inches
- Gypsy Head [CHZB]
- Not Included
- Hinge Location [AYTC]
- Bottom
- Maximum Load Rating [AYXK]
- 10000.0 Pounds
- Multifuel Design Feature [CNTW]
- Included
- Nominal Wheelbase [CNTR]
- 154.00 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- Truck,Cargo Model -35A2 Type
- Power Divider Unit [CNTN]
- Not Included
- Prime Mover Type [AKDJ]
- Diesel Engine
- Rear Wheel Mounting Type [CNTQ]
- Dual
- Rear Wheel Tread Nominal Width [CNTT]
- 70.00 Inches
- Rated Load Capacity [CNTJ]
- 2.50 Tons
- Reverse Speed Quantity [ATWQ]
- 1
- Seating Capacity [BTLY]
- 3
- Vehicle Curb Weight [CPKC]
- 13900.0 Pounds
- Wheel Quantity [AGDH]
- 6
- Winch Type [CNWC]
- Single Drum
- Winch Location [CNWB]
- Front
- Stake Type [BSWH]
- Lattice Panel
- Tailgate Operation Method [CNZD]
- Manual
- Trailer Brake Connection Type [CHZG]
- Air
- Transmission Adjunct Type [CNTY]
- Transfer
- Transmission Adjunct Speed Quantity [CNTZ]
- 2
- Transmission Type [AXJD]
- Manual
Management Data 2320-00-077-1617
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Sep 2016
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2012
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To S013543385
- S013543385
- R
- Department of the Air Force (DF)
- F
- R
- Refer To Serial-Vehicle
- SERIAL-VEHICLE
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- L
- Tactical Vehicles
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- NK
- Tactical Vehicles
2 1/2 Ton Vehicle Configuration, Multi-Fuel
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Air Force
- Fund:
- AF
- HQ USAF regulated
- Budget:
- V
- 57X3080 - Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2)
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - U
- Reparable. Condemn at Intermediate. AF Equipment Management System (AFEMS).
Similar Supply Items to 2320-00-077-1617
Freight Information 2320-00-077-1617
2320-00-077-1617 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190190. A Sub NMFC of X. It has a NMFC Description of VEHICLE MTR:AUTO FRT NOI TRACTORS. 2320-00-077-1617 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. 2320-00-077-1617 is rated as class 150 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 93340 which rates the freight between FCL and LCL. 2320-00-077-1617 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 867 for ocean manifesting and military sealift. 2320-00-077-1617 is not classified as a special type of cargo when transported by water. 2320-00-077-1617 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2320-00-077-1617
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Uncovered Space (Open Storage)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 278.1" H x 96.0" W x 81.0" L
- --
- --
- --
- Special Requirements
- 278.1" H x 96.0" W x 81.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
