2320-00-077-1616

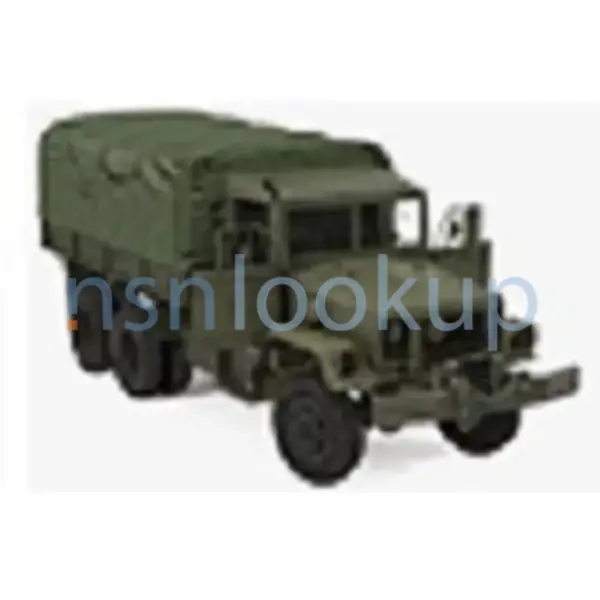

Cargo Truck
2320000771616 000771616 MILT46780 M35A2 8736581
A truck with either a box type body or a body having integral sides and front panel mounted on a chassis or articulated unit. It usually consists of a flat loading platform, tailgate, removable top bows, and tarpaulin. It may include side extensions or stakes. The rear wheels may be powered by a chain, an electric, hydraulic, and/or air motor(s), or conventional drive. View more Cargo Truck
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
May 2023
May 2023
NATO Update Count
13
13
NATO Data Quality
Marketplace 2320-00-077-1616
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 2320-00-077-1616 5+ Documents (More...)
MILT46780 M35A2 8736581 A truck with either a box type body or a body having integral sides and front
M35A2 TRUCK,CARGO 1 EA NS Request Quotation Subscribe to View Vendor Details... 2320-00-077-1616 TRUCK
M35A2 TRUCK,CARGO RQST NS Request Quotation Subscribe to View Vendor Details...
M35A2 TRUCK,CARGO 1 EA NS Request Quotation Subscribe to View Vendor Details... 2320-00-077-1616 TRUCK
M35A2 TRUCK,CARGO RQST NS Request Quotation Subscribe to View Vendor Details...
5365-01-227-1129 1+ Documents ( More... ) https https//www.nsnlookup.com /fsg-23/fsc-2320/us 2320-00-077-1616
Cargo Truck 2320000771616 000771616 ) https//www.nsnlookup.com /fsg-23/fsc-2320/us https//www.nsnlookup.com
From Each End,CenteredEnd Item Identification [AGAV] 2320-00-077-1616 Subscribe View Data DLA Procurement
Cargo Truck 2320000771616 000771616 ) https//www.nsnlookup.com /fsg-23/fsc-2320/us https//www.nsnlookup.com
From Each End,CenteredEnd Item Identification [AGAV] 2320-00-077-1616 Subscribe View Data DLA Procurement
4460 Engine Exhaust System Hanger 2990012514460 https//www.nsnlookup.com /fsg-23/fsc-2320/us 2320-00-077-1616
Cargo Truck 2320000771616 000771616 ThickEnd Item Identification [AGAV] 2320-00-077-1616 https/
Dia,Distance Between Mounting Holes 2.375 In.End Item Identification [AGAV] 2320-00-077-1616 Subscribe
Cargo Truck 2320000771616 000771616 ThickEnd Item Identification [AGAV] 2320-00-077-1616 https/
Dia,Distance Between Mounting Holes 2.375 In.End Item Identification [AGAV] 2320-00-077-1616 Subscribe
474-6332 U Bolt 5306014746332 014746332,10937669 https//www.nsnlookup.com /fsg-23/fsc-2320/us 2320-00-077-1616
Cargo Truck 2320000771616 000771616 Identification [AGAV] 2320-00-077-1616 Subscribe https//www.nsnlookup.com
Inside Center Of Bend To Bolt End [AAWV]13.250 Inches NominalEnd Item Identification [AGAV] 2320-00-077-1616
Cargo Truck 2320000771616 000771616 Identification [AGAV] 2320-00-077-1616 Subscribe https//www.nsnlookup.com
Inside Center Of Bend To Bolt End [AAWV]13.250 Inches NominalEnd Item Identification [AGAV] 2320-00-077-1616
Subscribe to View Vendor Details... 8345033 BRACKET https//www.nsnlookup.com /fsg-23/fsc-2320/us 2320-00-077-1616
Cargo Truck 2320000771616 000771616 00-077-1616 Subscribe View Data DLA Procurement https//www.nsnlookup.com
Wdth 2.220 In; Material,Steel Carbon,Spec Astm A569;.089 In ThickEnd Item Identification [AGAV] 2320-00-077-1616
Cargo Truck 2320000771616 000771616 00-077-1616 Subscribe View Data DLA Procurement https//www.nsnlookup.com
Wdth 2.220 In; Material,Steel Carbon,Spec Astm A569;.089 In ThickEnd Item Identification [AGAV] 2320-00-077-1616
Restrictions 2320-00-077-1616
IUID Required
2320-00-077-1616 is a Cargo Truck that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2320-00-077-1616
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2320-00-077-1616
- US Army (A202)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AMCLBD
- US Air Force (FGTC)
- Effective Date:
- 1 Apr 1991
- US Navy (NQZZ)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Morocco (YP01)
- Effective Date:
- 1 Aug 2014
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Jan 2002
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 2320-00-077-1616
- Part Number
- Manufacturer
- Status
- 8736581
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- MILT46780
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- M35A2
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 2320-00-077-1616
- Characteristic
- Specifications
- FIIG
- Specifications
- A37500
- Drive Axle Location [CNTK]
- Front And Rear
- Drive Wheel Quantity [AGDJ]
- 6
- Axle Drive Type [CNTL]
- Double Reduction
- Battery Quantity [AEXR]
- 2
- Battery Voltage Rating In Volts [ANLJ]
- 12.0
- Body Manufacturer Code And Model Number [CPJW]
- 19207 8332225
- Body Material [AAFZ]
- Steel And Wood
- Brake Actuation Method [CNYW]
- Air And Hydraulic
- Cab Roof Type [CNYT]
- Open
- Cab Door Quantity [CPLG]
- 2
- Cab Type [CNYS]
- Conventional
- Cargo Area Nominal Height [CNZR]
- 60.00 Inches
- Cargo Area Nominal Length [CNZP]
- 147.00 Inches
- Cargo Area Nominal Width [CNZQ]
- 88.00 Inches
- Chassis Manufacturer Code And Model Number [CPJX]
- 19207 M45a2
- Cylinder Quantity [AAXZ]
- 6
- Engine/Motor Manufacturer Code And Model Number [AGEA]
- 19207 Ld465-1
- Engine Brake Horsepower [ALKK]
- 140.0
- Engine Horsepower Rating Speed In Rpm [ALKL]
- 2600.0
- Features Provided [CBBL]
- Tailgate And Tarpaulin And Top Bows And Towing Pintle Hook And Trailer Brake Connection And Underwater Fording System
- Forward Speed Quantity [AXJH]
- 5
- Front Axle Engaging Mechanism Type [CNTP]
- Automatic
- Front Wheel Tread Nominal Width [CNTS]
- 67.75 Inches
- Hinge Location [AYTC]
- Bottom
- Multifuel Design Feature [CNTW]
- Included
- Nominal Wheelbase [CNTR]
- 154.00 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- -35A2 Model And Truck,Cargo Type
- Power Divider Unit [CNTN]
- Not Included
- Prime Mover Type [AKDJ]
- Diesel Engine
- Rear Wheel Mounting Type [CNTQ]
- Dual
- Rear Wheel Tread Nominal Width [CNTT]
- 70.00 Inches
- Rated Load Capacity [CNTJ]
- 2.50 Tons
- Reverse Speed Quantity [ATWQ]
- 1
- Seating Capacity [BTLY]
- 3
- Vehicle Curb Weight [CPKC]
- 13400.0 Pounds
- Vehicle Maximum Gross Weight [CPKD]
- 23800.00 Pounds
- Wheel Quantity [AGDH]
- 6
- Stake Type [BSWH]
- Lattice Panel
- Tailgate Operation Method [CNZD]
- Manual
- Trailer Brake Connection Type [CHZG]
- Air
- Transmission Adjunct Type [CNTY]
- Transfer
- Transmission Adjunct Speed Quantity [CNTZ]
- 2
- Transmission Type [AXJD]
- Manual
Management Data 2320-00-077-1616
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- May 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Sep 2016
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Apr 2012
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To S013543385
- S013543385
- R
- Department of the Air Force (DF)
- F
- R
- Refer To Serial-Vehicle
- SERIAL-VEHICLE
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- L
- Tactical Vehicles
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- NK
- Tactical Vehicles
2 1/2 Ton Vehicle Configuration, Multi-Fuel
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Air Force
- Fund:
- AF
- HQ USAF regulated
- Budget:
- V
- 57X3080 - Vehicular Equip (REMS) Vehicle Items and centrally funded, procured, and managed replenishment spares (ERRC XD-1, XD-2)
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - U
- Reparable. Condemn at Intermediate. AF Equipment Management System (AFEMS).
Navy
- Cognizance:
- 2C
- Major construction and civil engineering equipment
Civil Engineer Support Office
- Issue, Repair, Requisition Restriction Code:
- AH
- Submit/refer requisitions to CESO (Civil Engineer Support Office) CBC Port Hueneme
Similar Supply Items to 2320-00-077-1616
Freight Information 2320-00-077-1616
2320-00-077-1616 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190190. A Sub NMFC of X. It has a NMFC Description of VEHICLE MTR:AUTO FRT NOI TRACTORS. 2320-00-077-1616 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. 2320-00-077-1616 is rated as class 150 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 93340 which rates the freight between FCL and LCL. 2320-00-077-1616 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 867 for ocean manifesting and military sealift. 2320-00-077-1616 is not classified as a special type of cargo when transported by water. 2320-00-077-1616 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2320-00-077-1616
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Uncovered Space (Open Storage)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 264.2" H x 96.0" W x 81.0" L
- --
- --
- --
- Special Requirements
- 264.2" H x 96.0" W x 81.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
