2310-01-372-3934

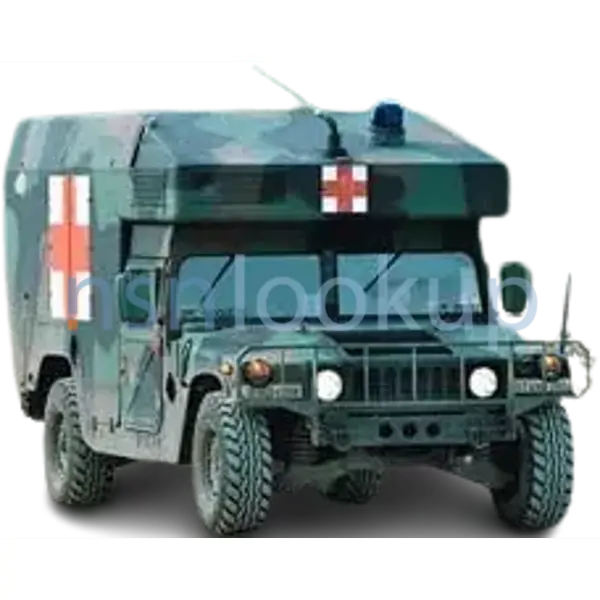

4 Litter Armored 4X4 W/E M997a1 Hmmwv (Na) Truck Ambulance
2310013723934 013723934 8750329
A truck designed to transport sick or wounded personnel. If the body type is "Panel" or "Van", it is usually equipped with rear loading door(s). Excludes AUTOMOBILE, AMBULANCE; and MINE RESISTANT VEHICLE. View more Ambulance Truck
January 2023
6
Marketplace 2310-01-372-3934
Request a Quotation from participating marketplace vendors
Related Documents 2310-01-372-3934 5+ Documents (More...)
United States (US) 4. 2310-01-372-3934 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Updated Every Day 2310-01-372-3934
2310013723934 013723934,8750329 CharacteristicSpecificationsFIIGA003B0End Item Identification [
AGAV] 2310-01-372-3934 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-504-6223 Machine Bolt 5306015046223015046223
2310013723934 013723934,8750329 TreatedEnd Item Identification [AGAV] 2310-01-372-3934 https//www.nsnlookup.com
Datasheet 5306-01-504-6218 CharacteristicSpecificationsFIIGA003B0End Item Identification [AGAV] 2310-01-372-3934
2310013723934 013723934,8750329 CharacteristicSpecificationsFIIGA003B0End Item Identification [
AGAV] 2310-01-372-3934 https//www.nsnlookup.com /fsg-53/fsc-5306/us 5306-01-504-6221 Machine Bolt 5306015046221015046221
2310013723934 013723934,8750329 ) https//www.nsnlookup.com /fsg-23/fsc-2310/us https//www.nsnlookup.com
Method [AARN]Die CastHeat Treatment [HEAT]T-4 Solution Heat TreatedEnd Item Identification [AGAV] 2310-01-372-3934
Restrictions 2310-01-372-3934
IUID Required
2310-01-372-3934 is a 4 Litter Armored 4X4 W/E M997a1 Hmmwv (Na) Truck Ambulance that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item where key elements must be removed and destroyed to prevent this item being restored or repaired. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2310-01-372-3934
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2310-01-372-3934
- US Army (A202)
- Effective Date:
- 1 Apr 1991
Approved Sources 2310-01-372-3934
- Part Number
- Manufacturer
- Status
- 8750329
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 2310-01-372-3934
- Characteristic
- Specifications
- FIIG
- Specifications
- A37500
- Drive Axle Location [CNTK]
- Front And Rear
- Drive Wheel Quantity [AGDJ]
- 2
- End Item Identification [AGAV]
- High Mobility Wheeled Vehicle(Hmmwv)
- Axle Drive Type [CNTL]
- Conventional
- Axle Speed Quantity [CNTM]
- 2
- Battery Quantity [AEXR]
- 2
- Battery Voltage Rating In Volts [ANLJ]
- 12.0
- Body Material [AAFZ]
- Steel, Corrosion Resisting
- Brake Actuation Method [CNYW]
- Hydraulic
- Cargo Area Nominal Height [CNZR]
- 102.00 Inches
- Cargo Area Nominal Width [CNZQ]
- 85.00 Inches
- Cylinder Quantity [AAXZ]
- 8
- Engine Power Rating [CXQS]
- 150.0 Horsepower
- Engine Brake Horsepower [ALKK]
- 150.0
- Engine Horsepower Rating Speed In Rpm [ALKL]
- 3600.0
- Engine Inclosure Type [CPJP]
- Projecting Hood
- Engine Kilowatt Rating Speed In Rpm [CWNG]
- 3600.0
- Forward Speed Quantity Per Range [AXJF]
- 3
- Front Axle Engaging Mechanism Type [CNTP]
- Manual
- Multifuel Design Feature [CNTW]
- Not Included
- Litter Patients Accommodated [ALLH]
- 2
- Power Divider Unit [CNTN]
- Not Included
- Prime Mover Type [AKDJ]
- Diesel Engine
- Rear Wheel Mounting Type [CNTQ]
- Single
- Seating Capacity [BTLY]
- 2
- Transmission Type [AXJD]
- Automatic
- Vehicle Maximum Gross Weight [CPKD]
- 9280.00 Pounds
- Wheel Quantity [AGDH]
- 4
Management Data 2310-01-372-3934
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Apr 2019
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To 000%
- 000%
- R
- Department of the Army (DA)
- L
- R
- Refer To Mel=0%
- MEL=0%
- R
Army
- Materiel Category and Inventory Manager:
- K
- Tactical and Support Vehicles, Combat and Automotive Materiel
- Appropriation and Budget Activity:
- L
- Tactical Vehicles
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- N5
- Tactical Vehicles
High Mobility Multi-Purpose Wheeled Vehicle(HMMWV)
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
NATO Stock Numbers Related to 2310-01-372-3934
Freight Information 2310-01-372-3934
2310-01-372-3934 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 190450. A Sub NMFC of A. It has a NMFC Description of VEHICLES:(ATV) SUB1. 2310-01-372-3934 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 93443 which rates the freight between FCL and LCL. 2310-01-372-3934 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 867 for ocean manifesting and military sealift. 2310-01-372-3934 is not classified as a special type of cargo when transported by water. 2310-01-372-3934 is not a consolidation, but exceeds 84" in at least one dimension. It may not be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2310-01-372-3934
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Uncovered Space (Open Storage)
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 204.5" H x 2.0" W x 100.9" L
- --
- --
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 204.5" H x 2.0" W x 86.0" L
- --
- --
- --
- Special Requirements
- 204.5" H x 2.0" W x 86.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- Special Requirement
- Special Requirements – see Specific Instructions or Drawings provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special Requirements. See Specific Instructions or Drawings Provided
- Special requirement – See specific instructions or drawings provided
- --
- Special Requirements – see Specific Instructions or Drawings provided
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
