2090-00-283-0000
Nonskid Metallic Tread
2090002830000 002830000 S1604-860041TYPEB2PC44
The upper, horizontal part of a step upon which the foot is placed, or a section placed upon or set into a deck, walkway, or coaming, made of metal, and corrugated or otherwise specially constructed to resist skidding. May have added material or inserts such as wood strip or abrasive particles to prevent sparking. Excludes door saddle, floor plates, gratings and elevator sills. View more Nonskid Metallic Tread
May 2023
4
Marketplace 2090-00-283-0000
Request a Quotation from participating marketplace vendors
Related Documents 2090-00-283-0000 4+ Documents (More...)
United States (US) 4. 2090-00-283-0000 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 2090-00-283-0000 RQST NE Updated Every Day 2090-00-283-0000 RQST
Restrictions 2090-00-283-0000
2090-00-283-0000 is a Nonskid Metallic Tread that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 2090-00-283-0000
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2090-00-283-0000
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AXCX
Approved Sources 2090-00-283-0000
- Part Number
- Manufacturer
- Status
- S1604-860041TYPEB2PC44
- Manufacturer
- 80064 - Naval Ship Systems Command (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 2090-00-283-0000
- Characteristic
- Specifications
- FIIG
- Specifications
- T231-C
- Basic Material [AMSP]
- Aluminum Alloy
- Fsc Application Data [ZZZV]
- Marine
- Mounting Feature [BJST]
- Included
- Mounting Method [AXGY]
- Top Drilled-Countersunk Holes
- Insert/Additive Type [BMYY]
- Aluminum Oxide Abrasive
- Reference Number Differentiating Characteristics [ZZZY]
- Abhp,Abkw,Abmk
- Overall Height [ABKW]
- 2.000 Inches Nominal
- Overall Length [ABHP]
- 15.000 Inches Nominal
- Overall Width [ABMK]
- 6.000 Inches Nominal

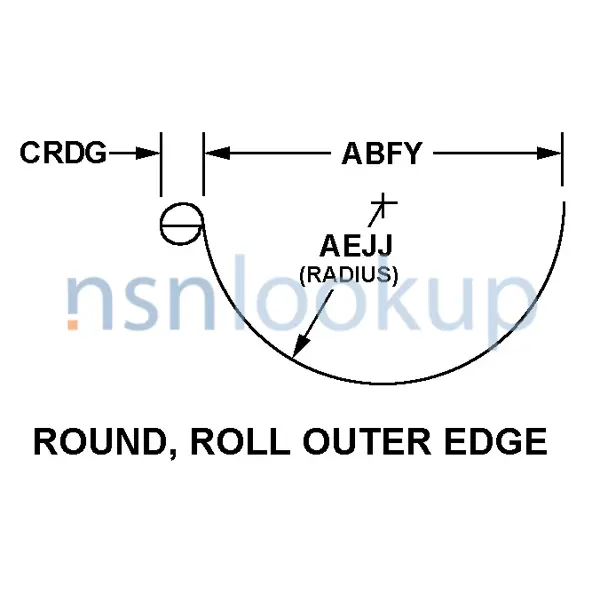

- Style Designator [STYL]
- Round, Roll Outer Edge
DLA Procurement Analysis 2090-00-283-0000
Management Data 2090-00-283-0000
Similar Supply Items to 2090-00-283-0000
Freight Information 2090-00-283-0000
2090-00-283-0000 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 019100. A Sub NMFC of X. It has a NMFC Description of AUTOMOBILS:PARTS,NOI. 2090-00-283-0000 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 08910 which rates the freight between FCL and LCL. 2090-00-283-0000 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 885 for ocean manifesting and military sealift. 2090-00-283-0000 is not classified as a special type of cargo when transported by water. 2090-00-283-0000 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2090-00-283-0000 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
