2040-01-488-8000
Door Handle
2040014888000 014888000 124-7386971 PC 34 124-7386971
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
1
Marketplace 2040-01-488-8000
Request a Quotation from participating marketplace vendors
Related Documents 2040-01-488-8000 5+ Documents (More...)
United States (US) 4. 2040-01-488-8000 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 2040-01-488-8000 RQST NE Updated Every Day 2040-01-488-8000 RQST
/fsg-31/fsc-3120/us
PC 2 124-7386971 A tubular shaped item with or without flange(s) designed to reduce friction and carry
PC 3 124-7386971 A tubular shaped item with or without flange(s) designed to reduce friction and carry
/fsg-31/fsc-3120/us
PC 3 124-7386971 A tubular shaped item with or without flange(s) designed to reduce friction and carry
for $1 a day Upgrade your Account Upgrade 3120-01-487-2146Sleeve Bearing3120014872146 014872146 124-7386971
PC 4 123-7386971 123-7386971 PC 4 124-7386971 A tubular shaped item with a round or hexagon peripheral
https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-487-2144 Sleeve Spacer 5365014872144014872144 124-7386971
PC 3 124-7386971 A tubular shaped item with or without flange(s) designed to reduce friction and carry
PC 2 124-7386971 A tubular shaped item with or without flange(s) designed to reduce friction and carry
Restrictions 2040-01-488-8000
2040-01-488-8000 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2040-01-488-8000
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2040-01-488-8000
- US Navy (N9BC)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
Approved Sources 2040-01-488-8000
- Part Number
- Manufacturer
- Status
- 124-7386971 PC 34
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
- 124-7386971
- 53711 - Naval Sea Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 2040-01-488-8000
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- End Item Identification [AGAV]
- Doors-Ballistic Under 25 Lbs, For Ac Carrier Cvn 76
- Handle Clearance [ALMZ]
- 1.062 Inches Nominal
- Handle Height [AGES]
- 1.812 Inches Nominal
- Head Diameter [AASL]
- 1.750 Inches Nominal
- Material [MATT]
- Steel Comp 316 Overall
- Mounting Facility Length [ABKP]
- 1.131 Inches Nominal
- Mounting Facility Quantity [AKPV]
- 1
- Mounting Facility Width [ABKS]
- 0.906 Inches Minimum And 0.909 Inches Maximum
- Mounting Method [AXGY]
- Slot
- Material Document And Classification [MDCL]
- Astm A 473, Type 316 Assn Std Single Material Response Overall
- Overall Length [ABHP]
- 8.125 Inches Nominal
- Special Features [FEAT]
- Handle Has 1.188 Bend From Centerline

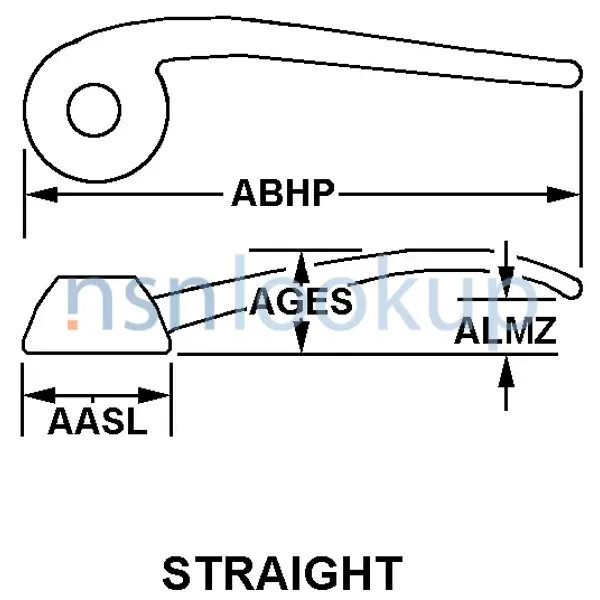

- Style Designator [STYL]
- Straight
DLA Procurement Analysis 2040-01-488-8000
Management Data 2040-01-488-8000
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2040-01-488-8000
Freight Information 2040-01-488-8000
2040-01-488-8000 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 2040-01-488-8000 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 2040-01-488-8000 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 2040-01-488-8000 is not classified as a special type of cargo when transported by water. 2040-01-488-8000 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 2040-01-488-8000
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Vendor's Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 2040-01-488-8000 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
