2040-01-222-3427
Deck Ventilator
2040012223427 012223427 41UT1107-1-DETAIL-5C
A device fabricated of sheet or cast metal, consisting of an air scoop or a hood with provisions for mounting on the deck of a boat or ship to provide ventilation for the inclosed space below. The hood or head may have either an integral mounting flange or a separable base. View more Deck Ventilator
January 2023
6
Marketplace 2040-01-222-3427
Request a Quotation from participating marketplace vendors
Related Documents 2040-01-222-3427 5+ Documents (More...)
United States (US) 4. 2040-01-222-3427 Marketplace Restrictions Approved Sources Datasheet Management
VENTILATOR,DECK 6 EA NS Request Quotation Updated Every Day 2040-01-222-3427 RQST NE Updated
Deck Ventilator 2040012223427 012223427 747-4509 2040-99-800-9474 2040-99-641-8930 https//www.nsnlookup.com
Ventilator 2040013547928 013547928 800-9474 2040-99-641-8930 www.nsnlookup.com /fsg-20/fsc-2040/us 2040-01-222-3427
Deck Ventilator 2040012223427 012223427 747-4509 2040-99-800-9474 2040-99-641-8930 -129-6482 Deck
Ventilator 2040013547928 013547928 747-4509 2040-99-800-9474 www.nsnlookup.com /fsg-20/fsc-2040/us 2040-01-222-3427
012223427 747-4509 2040-99-800-9474 2040-99-641-8930 2040-21-864-8775 2040-01-688-4594 -354-7928 Deck
013547928 747-4509 2040-99-800-9474 2040-99-641-8930 2040-21-864-8775 -222-3427 Deck Ventilator 2040012223427
Deck Ventilator 2040012223427 012223427 Related to 2040-01-222-3427 2040-66-146-1470 2040-21-864
Restrictions 2040-01-222-3427
2040-01-222-3427 is a Deck Ventilator that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 2040-01-222-3427
- US Coast Guard (C056)
- Effective Date:
- 1 Jul 2010
- Former MOE Rule:
- C055
Approved Sources 2040-01-222-3427
- Part Number
- Manufacturer
- Status
- 41UT1107-1-DETAIL-5C
- Manufacturer
- 06101 - United States Coast Guard Yard (Active)
- Primary Buy
- Primary Buy
Datasheet 2040-01-222-3427
- Characteristic
- Specifications
- FIIG
- Specifications
- T274-U
- Below Deck Closing Feature [CFYD]
- Not Included
- Bottom Opening Shape [CFXB]
- Round
- Deck Plate [CFXY]
- Not Included
- Mouth Opening Inside Diameter [CFXD]
- 4.000 Inches Nominal
- Mouth Opening Shape [CFXC]
- Round
- Insectproof Feature [CFYF]
- Not Included
- Inside Diameter [AARX]
- 4.000 Inches Nominal
- Integral Mounting Base [CFXW]
- Included
- Length [ABRY]
- 15.500 Inches Nominal
- Overall Height [ABKW]
- 6.750 Inches Nominal
- Special Features [FEAT]
- Material: Plastic, Fiberglass Reinforced
- Ventilation Closing Device [CFYC]
- Included
- Ventilator Type [CFXX]
- Fixed Position
- Waterproof Feature [AKSS]
- Included
- Width [ABGL]
- 8.000 Inches Nominal

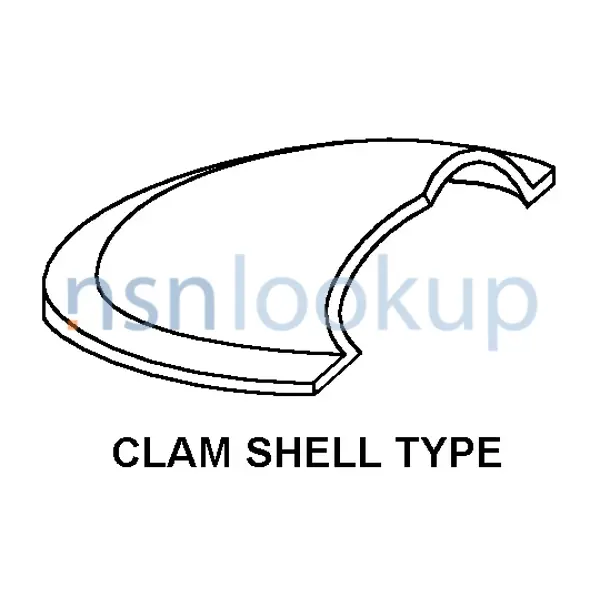

- Style Designator [STYL]
- Clam Shell Type
NATO Stock Numbers Related to 2040-01-222-3427
Freight Information 2040-01-222-3427
2040-01-222-3427 has freight characteristics managed by the US Postal Service (USPS).. 2040-01-222-3427 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
