2040-00-287-5496
Open Rope Chock
2040002875496 002875496 FIGN286
INC: 08259 Open Rope Chock
May 2023
5
Marketplace 2040-00-287-5496
Request a Quotation from participating marketplace vendors
Related Documents 2040-00-287-5496 5+ Documents (More...)
United States (US) 4. 2040-00-287-5496 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 2040-00-287-5496 RQST NE Updated Every Day 2040-00-287-5496 RQST
Open Rope Chock 2040002875496 002875496 2019Defense Logistics Agency (DS)EA Subscribe 1 NATO Stock
Numbers Related to 2040-00-287-5496 2040-00-569-4524 https//www.nsnlookup.com /fsg-20/fsc-2040/us 2040
Open Rope Chock 2040002875496 002875496 088-5913 2040-00-028-3968 2040-15-157-7204 2040-33-210-
Open Rope Chock 2040002875496 002875496 Related to 2040-00-287-5496 2040-00-569-4524 2040-12-376
Open Rope Chock 2040002875496 002875496 088-5913 2040-00-028-3968 2040-15-157-7204 https//www.nsnlookup.com
Restrictions 2040-00-287-5496
2040-00-287-5496 is a Open Rope Chock that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 2040-00-287-5496
- National Security Agency (DGX1)
- Effective Date:
- 1 Jan 2005
- Former MOE Rule:
- DAX1
- Supplementary Receivers:
- AXCX
Approved Sources 2040-00-287-5496
- Part Number
- Manufacturer
- Status
- FIGN286
- Manufacturer
- 76155 - Manhattan Marine And Electric Co (Obsolete)
- Original Design
- Original Design
Datasheet 2040-00-287-5496
- Characteristic
- Specifications
- FIIG
- Specifications
- T274-S
- Fabrication Method [AARN]
- Cast
- Material [MATT]
- Iron
- Maximum Rope Diameter Accommodated [CFNJ]
- 1.250 Inches
- Mounting Hole Diameter [ABTB]
- 0.344 Inches Nominal
- Mounting Hole Quantity [ABTJ]
- 2
- Mounting Hole [BRCR]
- Provided
- Opening Length [BFRH]
- 2.625 Inches Nominal
- Opening Height [ARDN]
- 1.375 Inches Nominal
- Overall Length [ABHP]
- 12.000 Inches Nominal
- Overall Width [ABMK]
- 3.000 Inches Nominal

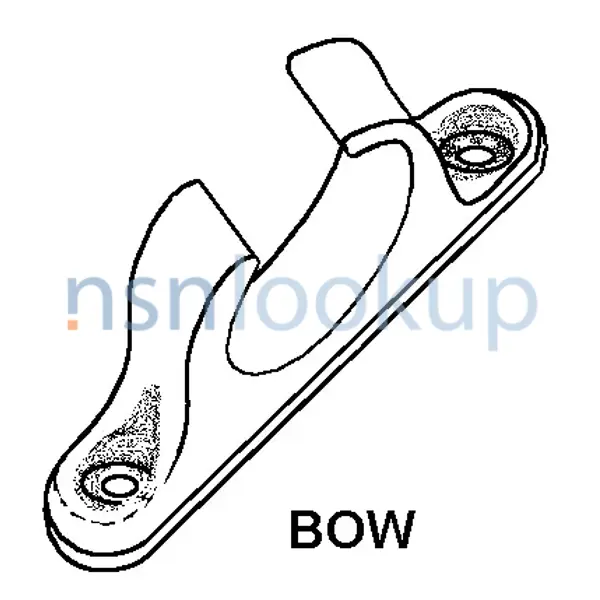

- Style Designator [STYL]
- Bow
- Surface Treatment [SFTT]
- Zinc
DLA Procurement Analysis 2040-00-287-5496
Management Data 2040-00-287-5496
Similar Supply Items to 2040-00-287-5496
Freight Information 2040-00-287-5496
2040-00-287-5496 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 024580. A Sub NMFC of X. It has a NMFC Description of BOAT BIT/CHOCK MOORING/TOWING. 2040-00-287-5496 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 11480 which rates the freight between FCL and LCL. 2040-00-287-5496 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 810 for ocean manifesting and military sealift. 2040-00-287-5496 is not classified as a special type of cargo when transported by water. 2040-00-287-5496 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2040-00-287-5496 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
