2010-01-076-1659
Marine Propeller
2010010761659 010761659 3262158
A propeller with two or more radial blades, designed to rotate and provide thrust for waterborne vessel or self-propelled underwater devices. It may be of solid or built-up construction; controllable, adjustable or fixed pitch design. View more Marine Propeller
May 2023
3
Marketplace 2010-01-076-1659
Request a Quotation from participating marketplace vendors
Related Documents 2010-01-076-1659 2+ Documents (More...)
BUY NE FedMall Updated Every Day 2010-01-076-1659 RQST NE Updated Every Day 2010-01-076-1659 RQST
Updated Every Day 2010-01-076-1659 RQST NE Related Documents 2010-01-076-1659 1+ Documents ( More...
Request a Quotation from participating marketplace vendors Request Updated Every Day 3262158 RQST NE
Marine Propeller 2010010761659 010761659 for $1 a day Upgrade your Account Upgrade 2010-01-076-
Restrictions 2010-01-076-1659
2010-01-076-1659 is a Marine Propeller that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 2010-01-076-1659
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 2010-01-076-1659
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJBHD
Approved Sources 2010-01-076-1659
- Part Number
- Manufacturer
- Status
- 3262158
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 3262158
- 24434 - Skyline Industries, Inc (Active)
- Secondary Buy
- Secondary Buy
- 3262158
- 16786 - F E L Corp (Obsolete)
- Secondary Buy
- Secondary Buy
- 3262158
- 05825 - O T S I (Active)
- Secondary Buy
- Secondary Buy
Datasheet 2010-01-076-1659
- Characteristic
- Specifications
- FIIG
- Specifications
- A30700
- Blade Pitch Type [AMXG]
- Variable
- Blade Quantity [AJLB]
- 5
- Bore Diameter [ABXV]
- 1.250 Inches Nominal
- Hub Aft Face Diameter [ANAK]
- 2.625 Inches Nominal
- Hub Forward Face Diameter [ANAJ]
- 2.000 Inches Nominal
- Hub Overall Length [ANAH]
- 2.612 Inches Nominal

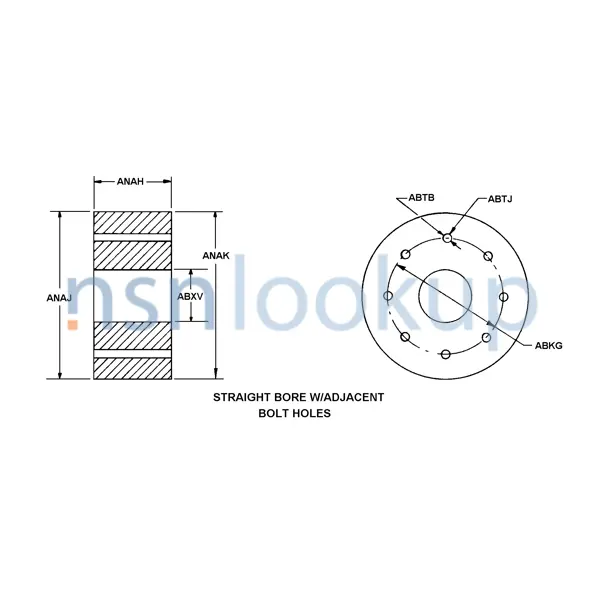

- Hub Shaft Accommodation Style [AMYP]
- Straight Bore W/ Adjacent Bolt Holes
- Propeller Type [AMWD]
- Fixed Pitch
- Rotation Direction [AMWW]
- Left-Hand
DLA Procurement Analysis 2010-01-076-1659
Management Data 2010-01-076-1659
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 2010-01-076-1659
Freight Information 2010-01-076-1659
2010-01-076-1659 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 127260. A Sub NMFC of Z. It has a NMFC Description of PROPELLERS OR PROPELLER WHEELS. 2010-01-076-1659 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 58952 which rates the freight between FCL and LCL. 2010-01-076-1659 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 810 for ocean manifesting and military sealift. 2010-01-076-1659 is not classified as a special type of cargo when transported by water. 2010-01-076-1659 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 2010-01-076-1659 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
