1680-01-163-0293
Linear Electro-Mechanical Actuator
1680011630293 011630293 6036B0001-03 10106319
A self-contained power transmitting device designed to convert electrical energy into controlled mechanical force, in the form of linear (straight line) mechanical movement. Comprised of an electrical motor(s), gear box(es), screwjacks, limit switch(es), and such accessories as required for the specific moving and positioning of other components. Excludes hydraulic and pneumatic cylinders and screwjacks. View more Linear Electro-Mechanical Actuator
November 2023
10
Product Information 1680-01-163-0293
Linear Actuator
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter

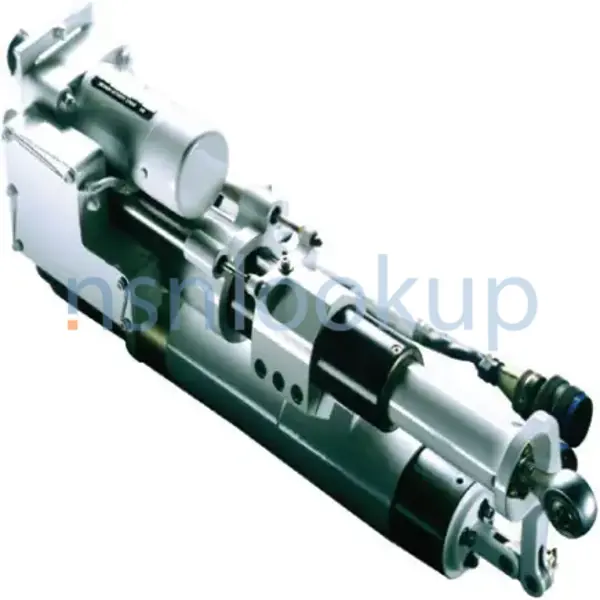

Eaton's model 6036 feel/trim actuator moves the zero feel force position of the pilot’s control stick in the pitch axis on the aircraft. The actuator is driven by an integral 28 VDC motor. Two stages of gearing transmits the motor torque to an Acme screw assembly and spring cartridge assembly.
Marketplace 1680-01-163-0293
Request a Quotation from participating marketplace vendors
Related Documents 1680-01-163-0293 2+ Documents (More...)
United States (US) 4. 1680-01-163-0293 Marketplace Restrictions Approved Sources Datasheet Management
Marketplace 1680-01-163-0293 Need Help?
RYG10106319 REACTOR 1 EA NS Request Quotation 10106319 REACTOR 6 EA NS Request Quotation Subscribe to
Linear Electro-Mechanical Actuator 011630293 Account Upgrade 1680-01-163-0293Linear Electro-Mechanical
Restrictions 1680-01-163-0293
IUID Required
1680-01-163-0293 is a Linear Electro-Mechanical Actuator This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1680-01-163-0293
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1680-01-163-0293
- US Navy (N2R4)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Finland (WF01)
- Effective Date:
- 1 Mar 2009
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1680-01-163-0293
- Part Number
- Manufacturer
- Status
- 6036B0001-03
- Manufacturer
- 17472 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy
- 10106319
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 1680-01-163-0293
- Characteristic
- Specifications
- FIIG
- Specifications
- A30500
- Connector Manufacturer Code [AEEE]
- 96906
- Connector Manufacturer Part Number [AEEF]
- Ms27467t13b35pa
- Terminal Type [AARB]
- Connector And Insulated Wire Lead
Management Data 1680-01-163-0293
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- L
- R
- Refer To Net Price 13998.00
- NET PRICE 13998.00
- R
Navy
- Cognizance:
- 7R
- Bypass
- Special Material ID:
- GF
- Fighter Support Aircraft (F/A-18)
- Issue, Repair, Requisition Restriction Code:
- AR
- Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 1680-01-163-0293
Freight Information 1680-01-163-0293
1680-01-163-0293 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 1680-01-163-0293 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 1680-01-163-0293 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 1680-01-163-0293 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1680-01-163-0293 is not classified as a special type of cargo when transported by water. 1680-01-163-0293 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
