1680-01-076-7930
Webbing Strap
1680010767930 010767930 205-070-790-101
A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies. View more Webbing Strap
November 2023
5
Marketplace 1680-01-076-7930
Request a Quotation from participating marketplace vendors
Related Documents 1680-01-076-7930 1+ Documents (More...)
(Identification) 1/3 NSN 1680-01-076-7930 (Identification) 2/3 NSN 1680-01-076-7930 (Identification
United States (US) 4. 1680-01-076-7930 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 1680-01-076-7930
1680-01-076-7930 is a Webbing Strap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1680-01-076-7930
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1680-01-076-7930
- US Army (A920)
- Effective Date:
- 1 Jul 2006
- Former MOE Rule:
- A183
- Supplementary Receivers:
- CT
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1997
Approved Sources 1680-01-076-7930
- Part Number
- Manufacturer
- Status
- 205-070-790-101
- Manufacturer
- 97499 - Bell Textron Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 1680-01-076-7930
- Characteristic
- Specifications
- FIIG
- Specifications
- T372-B
- Distance From Strap End To First Grommet Hole Center [BYCS]
- 0.500 Inches Nominal
- End Attachment/Fastening Facility [CBSZ]
- Metallic Grommet And Ring
- Attachment Method For Which Designed [BTLM]
- Sewed
- Color [HUES]
- Green, Olive
- End Type [APTD]
- End Type [APTD]
- Plain
- Fastened Ring Feature [BYDB]
- Included
- Fold Type [BYBT]
- Loose

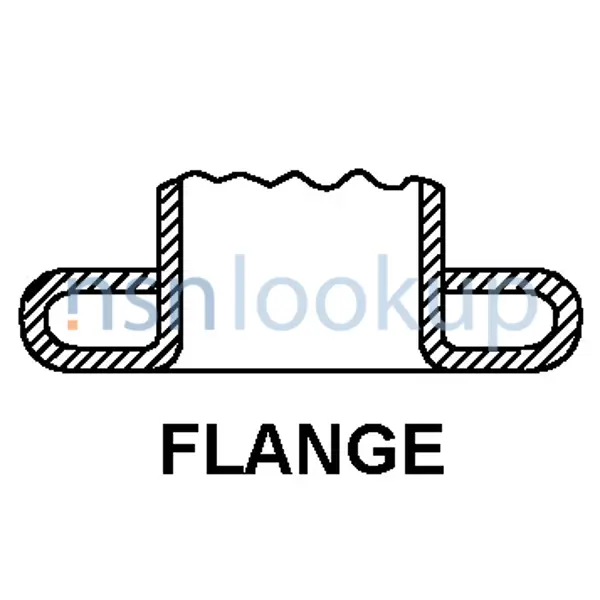

- Grommet Flange Style Designator [CXLS]
- Flange
- Grommet Barrel Style Designator [CXLC]
- Straight Round Type

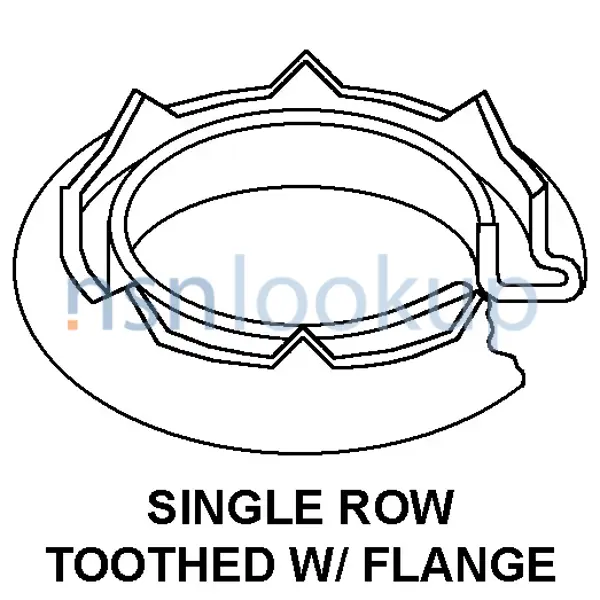

- Grommet Washer Style Designator [CXMC]
- Single Row Toothed With Flange
- Grommet Quantity [BYCQ]
- 1
- Material Document And Classification [MDCL]
- Mil-W-4088, Type 2 Mil Spec Single Material Response
- Material [MATT]
- Plastic Polyhexamethylene Adipamide
- Fsc Application Data [ZZZV]
- Seat Installation,Acft
- Length [ABRY]
- 11.000 Inches Nominal
- Ring Fastening Method [BYDC]
- Sewed
- Ring Shape [BYCZ]
- D
- Ring Location [BYDD]
- On End
- Ring Material [BRRX]
- Steel, Mil-S-6758, Comp 4130
- Width [ABGL]
- 1.000 Inches Nominal
DLA Procurement Analysis 1680-01-076-7930
- Last Stock Position:
- 26 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1680-01-076-7930
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 1680-01-076-7930
Freight Information 1680-01-076-7930
1680-01-076-7930 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 179580. A Sub NMFC of X. It has a NMFC Description of STRAPS LEATHER IMITATION LEATHER. 1680-01-076-7930 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. 1680-01-076-7930 is rated as class 100 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 88190 which rates the freight between FCL and LCL. 1680-01-076-7930 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1680-01-076-7930 is not classified as a special type of cargo when transported by water. 1680-01-076-7930 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1680-01-076-7930
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 1680-01-076-7930 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A518F146E
- 01 Feb 2018
- Subscribe
- 386
- Subscribe
- Subscribe
- Subscribe
- SPE4A517P4323
- 10 Mar 2017
- Subscribe
- 150
- Subscribe
- Subscribe
- Subscribe
- SPRPA116G001WZ1T8
- 06 Oct 2016
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- W58RGZ12G0001TYXV
- 15 Dec 2014
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- W58RGZ12G0001Z34N
- 14 Jan 2014
- Subscribe
- 12
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 1680-01-076-7930 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
