1680-01-058-3575
Door Handle
1680010583575 010583575 65-74583-1
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
11
Marketplace 1680-01-058-3575
Request a Quotation from participating marketplace vendors
Related Documents 1680-01-058-3575 1+ Documents (More...)
United States (US) 4. 1680-01-058-3575 Marketplace Restrictions Approved Sources Datasheet Management
HANDLE,DOOR RQST NS Request Quotation Updated Every Day 1680-01-058-3575 RQST NE Restrictions 1680
Restrictions 1680-01-058-3575
1680-01-058-3575 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1680-01-058-3575
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1680-01-058-3575
- US Air Force (FGGG)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FGCX
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 1680-01-058-3575
- Part Number
- Manufacturer
- Status
- 65-74583-1
- Manufacturer
- 81205 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
Datasheet 1680-01-058-3575
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Color [HUES]
- Clear Overall
- Features Provided [CBBL]
- Escutcheon Plate Fixed
- Handle Clearance [ALMZ]
- 3.920 Inches Nominal
- Handle Height [AGES]
- 4.570 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-596 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 356.0 Overall
- Mounting Facility Quantity [AKPV]
- 3
- Overall Length [ABHP]
- 17.820 Inches Nominal

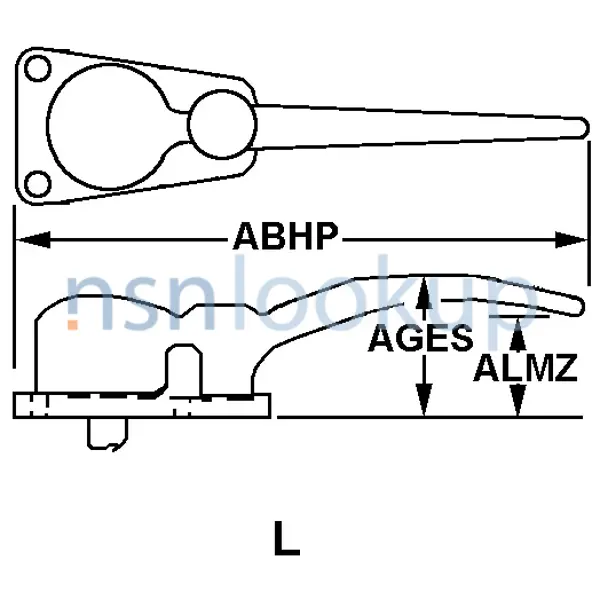

- Style Designator [STYL]
- L
- Surface Treatment [SFTT]
- Enamel Overall
Weapon Systems (WSDC) 1680-01-058-3575
DLA Procurement Analysis 1680-01-058-3575
- Last Stock Position:
- 9 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1680-01-058-3575
Similar Supply Items to 1680-01-058-3575
Freight Information 1680-01-058-3575
1680-01-058-3575 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 1680-01-058-3575 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 1680-01-058-3575 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 1680-01-058-3575 is not classified as a special type of cargo when transported by water. 1680-01-058-3575 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 1680-01-058-3575 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
