1680-00-833-4156
Door Handle
1680008334156 008334156 305-312255-3
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
May 2023
7
Marketplace 1680-00-833-4156
Request a Quotation from participating marketplace vendors
Related Documents 1680-00-833-4156 1+ Documents (More...)
United States (US) 4. 1680-00-833-4156 Marketplace Restrictions Approved Sources Datasheet Management
Updated Every Day 1680-00-833-4156 RQST NE Updated Every Day 1680-00-833-4156 RQST Updated Every Day
Restrictions 1680-00-833-4156
1680-00-833-4156 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1680-00-833-4156
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1680-00-833-4156
- US Air Force (FXGG)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- FXCX
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2005
- Supplementary Collaborators:
- KE
Approved Sources 1680-00-833-4156
- Part Number
- Manufacturer
- Status
- 305-312255-3
- Manufacturer
- 89372 - Rockwell International Corp North (Obsolete)
- Original Design
- Original Design
- 305-312255-3
- 10000 - Maney Aircraft, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 1680-00-833-4156
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Accommodated Shaft Diameter [ABVM]
- 0.750 Inches Nominal
- Handle Height [AGES]
- 0.940 Inches Minimum And 0.970 Inches Maximum
- Material [MATT]
- Aluminum Alloy 356.0 Overall
- Material Document And Classification [MDCL]
- Lb0170-108,T6,Cagec 89372 Mfr Ref Single Material Response Overall
- Shaft Accommodation Style [ABHH]
- Round
- Shank Diameter [AAZE]
- 1.000 Inches Nominal
- Shank Length [AATR]
- 0.090 Inches Nominal

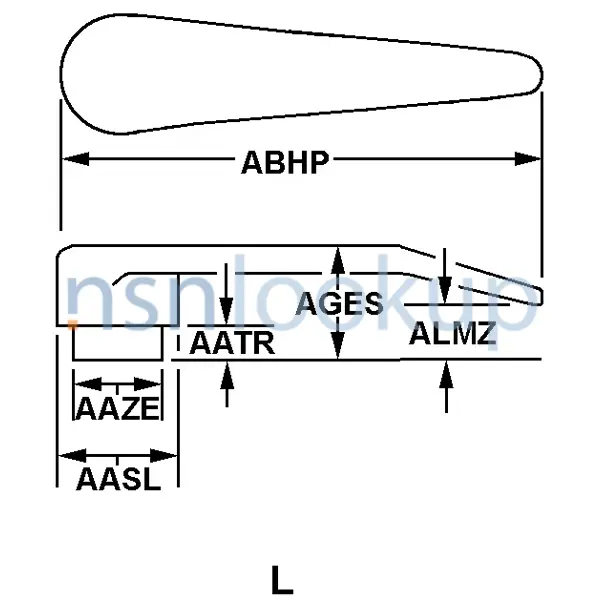

- Style Designator [STYL]
- L
DLA Procurement Analysis 1680-00-833-4156
Management Data 1680-00-833-4156
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 1680-00-833-4156
Freight Information 1680-00-833-4156
1680-00-833-4156 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 1680-00-833-4156 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 1680-00-833-4156 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1680-00-833-4156 is not classified as a special type of cargo when transported by water. 1680-00-833-4156 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1680-00-833-4156
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension over 2", but less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 1680-00-833-4156 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
