1680-00-528-1715

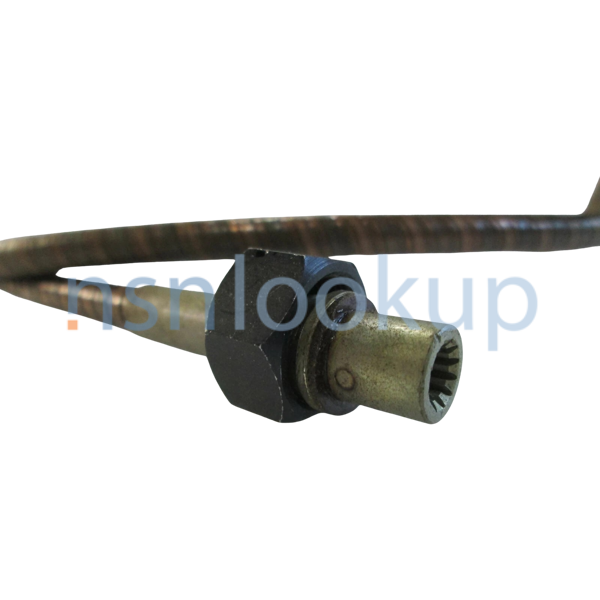

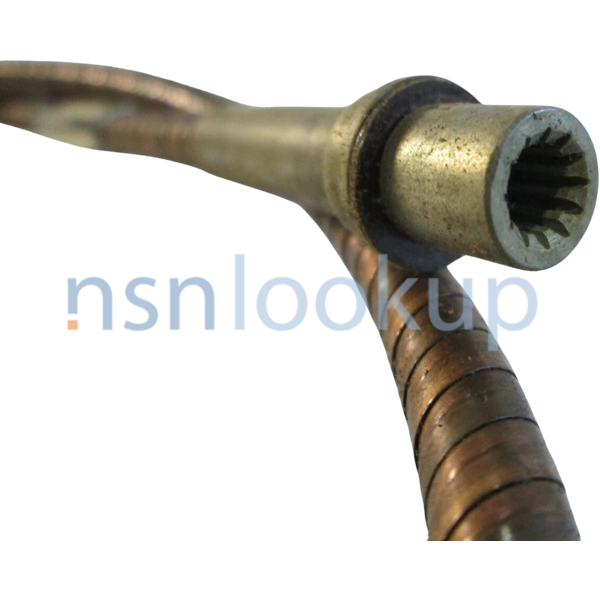

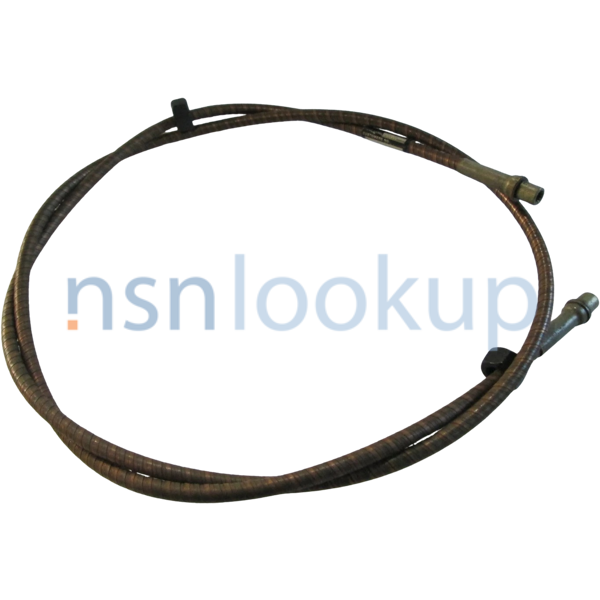

Flexible Shaft Assembly
1680005281715 005281715 M4241-6463
An item consisting of a casing with fittings and attachments on each end and a spirally wound wire core with formed end(s) and/or crimped on end fittings. It is designed to transmit rotary motion around bends from a motor or other power source to drive various types of equipment, such as tachometers, speedometers, remote controls, instruments, and the like, which are located at an angle and/or distance from the power source. See also CONTROL ASSEMBLY, PUSH-PULL. View more Flexible Shaft Assembly
August 2025
16
Marketplace 1680-00-528-1715
Request a Quotation from participating marketplace vendors
Related Documents 1680-00-528-1715 2+ Documents (More...)
RQST NE Updated Every Day 1680-00-528-1715 RQST Updated Every Day 1680-00-528-1715 RQST NE Related Documents
1680-00-528-1715 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-16/fsc-1680/us 1680-00-528-1715
Restrictions 1680-00-528-1715
1680-00-528-1715 is a Flexible Shaft Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 1680-00-528-1715
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1680-00-528-1715
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1680-00-528-1715
- Part Number
- Manufacturer
- Status
- M4241-6463
- Manufacturer
- 28298 - Smith And Smith Aircraft Co (Active)
- Primary Buy
- Primary Buy
Datasheet 1680-00-528-1715
- Characteristic
- Specifications
- FIIG
- Specifications
- T246-E
- End Connection Type [AWZY]
- Threaded Internal Both Ends
- Casing Length Between Ferrules [CFRP]
- 64.625 Inches Nominal
- Casing Outside Diameter [CFRQ]
- 0.313 Inches Nominal
- Core Diameter [AKMH]
- 0.199 Inches Nominal
- Core Material [AJXJ]
- Steel
- Core Overall Length [CFRZ]
- 65.625 Inches Nominal
- Core Removability [CFSL]
- Nonremovable
- Core Rotation Direction [CFSB]
- Clockwise
- Cross Section Size And Location [CFQW]
- 0.409 Inches Nominal Diameter Both Ends
- End Overall Diameter [CFRW]
- 0.875 Inches Nominal Both Ends
- End Type [APTD]
- Round, Internal Splined Both Ends
- Fsc Application Data [ZZZV]
- Electric Wing Flap Instrument Aircraft
- Casing Material [BJPS]
- Steel
- Minimum Operating Radius [CGDN]
- 4.500 Inches
- Lubrication Fitting [CFRY]
- Not Provided Both Ends
- Pitch Diameter [AGJS]
- 0.250 Inches Nominal Both Ends
- Screw Thread Series Designator [AJYP]
- Uns Both Ends
- Setscrew [BDRL]
- Not Included Both Ends
- Overall Length [ABHP]
- 65.625 Inches Nominal
- Torsional Deflection Rating [CFRM]
- 0.4 Deg Per In.-Lb Winding And 0.6 Deg Per In.-Lb Unwinding Torsionaldeflection
- Width Across Flats [ASDB]
- 0.750 Inches Nominal Both Ends
- Wrenching Facility Type [BPPL]
- Hexagon Both Ends
- Spline Length [AXFH]
- 0.275 Inches Nominal Both Ends
- Spline Major Diameter [AAUJ]
- 0.310 Inches Nominal Both Ends
- Spline Minor Diameter [ABSC]
- 0.242 Inches Nominal Both Ends
- Spline Pressure Angle In Deg [AXFG]
- 14.5 Both Ends
- Spline Quantity [ABSA]
- 12 Both Ends
- Spline Type [AXYS]
- Involute Both Ends
- Swivel End [CFRT]
- Not Provided Both Ends
- Thread Class [AAJD]
- 2B Both Ends
- Thread Direction [AAJF]
- Right-Hand Both Ends
- Thread Length [AASA]
- 0.310 Inches Nominal Both Ends
- Thread Location [APJC]
- Internal Both Ends
- Tip Length [AEDN]
- 0.500 Inches Nominal Both Ends
Similar Supply Items to 1680-00-528-1715
Freight Information 1680-00-528-1715
1680-00-528-1715 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 129920. A Sub NMFC of X. It has a NMFC Description of SHAFTS/SHAFTING,FLEX NOI STL. 1680-00-528-1715 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 1680-00-528-1715 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 65750 which rates the freight between FCL and LCL. 1680-00-528-1715 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1680-00-528-1715 is not classified as a special type of cargo when transported by water. 1680-00-528-1715 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
