1680-00-185-8191
Door Handle
1680001858191 001858191 0611105-3
A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB. View more Door Handle
January 2023
11
Marketplace 1680-00-185-8191
Request a Quotation from participating marketplace vendors
Related Documents 1680-00-185-8191 1+ Documents (More...)
(Identification) 1/2 NSN 1680-00-185-8191 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 1680-00-185-8191 RQST Updated Every Day 1680-00-185-8191 RQST NE Restrictions
Restrictions 1680-00-185-8191
1680-00-185-8191 is a Door Handle that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 1680-00-185-8191
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1680-00-185-8191
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1995
Approved Sources 1680-00-185-8191
- Part Number
- Manufacturer
- Status
- 0611105-3
- Manufacturer
- 4J976 - Regal Air, Inc. (Active)
- Primary Buy
- Primary Buy
- 0611105-3
- 71379 - Cessna Aircraft Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 1680-00-185-8191
- Characteristic
- Specifications
- FIIG
- Specifications
- A250A0
- Accommodated Shaft Diameter [ABVM]
- 0.437 Inches Nominal
- Head Diameter [AASL]
- 1.000 Inches Nominal
- Shaft Accommodation Style [ABHH]
- Round
- Shank Diameter [AAZE]
- 0.750 Inches Nominal
- Shank Length [AATR]
- 0.250 Inches Nominal
- Overall Length [ABHP]
- 4.438 Inches Nominal

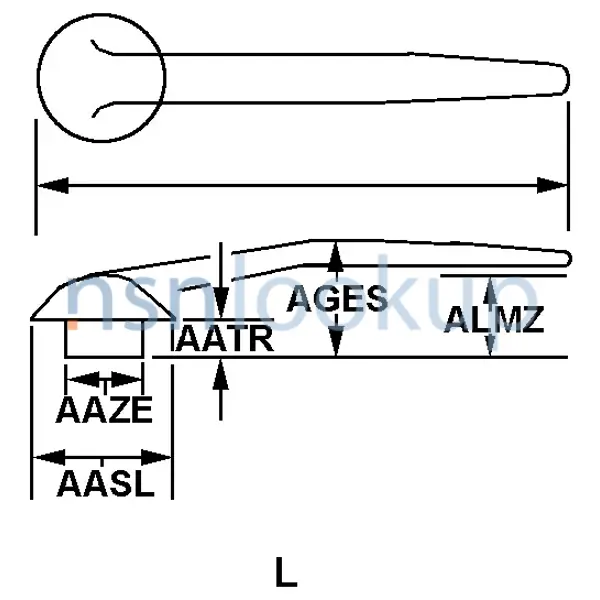

- Style Designator [STYL]
- L
Similar Supply Items to 1680-00-185-8191
Freight Information 1680-00-185-8191
1680-00-185-8191 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095142. A Sub NMFC of X. It has a NMFC Description of HARDWARE HANDLES,IRON/STEEL. 1680-00-185-8191 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. 1680-00-185-8191 is rated as class 70 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 48490 which rates the freight between FCL and LCL. 1680-00-185-8191 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 1680-00-185-8191 is not classified as a special type of cargo when transported by water. 1680-00-185-8191 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
