1670-00-245-3082
Aircraft Floor Tie Down Adapter
1670002453082 002453082 S14-20-3580
A plate type adapter designed to be attached to a structural component to provide the necessary accommodations to secure cargo. It may contain a ring or other attachment fitting. (Excludes ADAPTER, TIE DOWN, AIRCRAFT FLOOR and ADAPTER, TIE DOWN, AIRCRAFT) View more Tie Down Adapter
January 2023
11
Marketplace 1670-00-245-3082
Request a Quotation from participating marketplace vendors
Related Documents 1670-00-245-3082 1+ Documents (More...)
S14-20-3580 ADAPTER,TIE DOWN,AIRCRAFT FLOOR 456 EA NS Request Quotation Updated Every Day 1670-00-245
-3082 RQST NE Updated Every Day 1670-00-245-3082 RQST Updated Every Day 1670-00-245-3082 RQST NE Restrictions
Restrictions 1670-00-245-3082
1670-00-245-3082 is a Aircraft Floor Tie Down Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 1670-00-245-3082
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1670-00-245-3082
- Part Number
- Manufacturer
- Status
- S14-20-3580
- Manufacturer
- 78286 - Sikorsky Aircraft Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 1670-00-245-3082
- Characteristic
- Specifications
- FIIG
- Specifications
- A30600
- Attachment Type [BDHD]
- Seat Stud
- Material [MATT]
- Aluminum Alloy 2024
- Mounting Hole Diameter [ABTB]
- 0.193 Inches Nominal

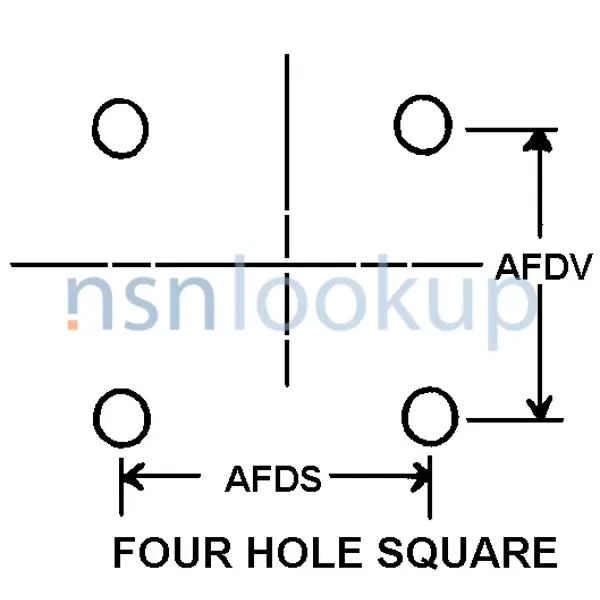

- Mounting Hole Arrangement Style [ADFU]
- Four Hole Square
- Mounting Hole Type [ACHY]
- Plain
- Longest Horizontal Distance Between Mounting Centers [AFDS]
- 1.625 Inches Nominal
- Longest Vertical Distance Between Mounting Centers [AFDV]
- 1.625 Inches Nominal
- Seat Stud Style [AMSW]
- Slotted
- Overall Length [ABHP]
- 2.250 Inches Nominal
- Overall Width [ABMK]
- 2.250 Inches Nominal
- Surface Treatment [SFTT]
- Anodize
Similar Supply Items to 1670-00-245-3082
Freight Information 1670-00-245-3082
1670-00-245-3082 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095190. A Sub NMFC of J. It has a NMFC Description of HARDWARE, NOI SUB 9. 1670-00-245-3082 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49790 which rates the freight between FCL and LCL. 1670-00-245-3082 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 1670-00-245-3082 is not classified as a special type of cargo when transported by water. 1670-00-245-3082 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
