1660-01-504-9320
Compressed Gas Cylinder Valve Connections Adapter
1660015049320 015049320 173784
An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas. View more Compressed Gas Cylinder Valve Connections Adapter
January 2023
7
Marketplace 1660-01-504-9320
Request a Quotation from participating marketplace vendors
Related Documents 1660-01-504-9320 5+ Documents (More...)
(Identification) 1/2 NSN 1660-01-504-9320 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 1660-01-504-9320 RQST Updated Every Day 1660-01-504-9320 RQST NE Related
H-173784 ADAPTER,STRAIGHT,FLANGE TO HOSE RQST NS Request Quotation PC-1006 ADAPTER,STRAIGHT,FLANGE TO
https//www.nsnlookup.com /fsg-16/fsc-1660/us 1660-01-504-9320 1660015049320 015049320,173784 Upgrade
/fsg-53/fsc-5305/it
0-173784 (241)A39630-173784 Managed by Italy NSN Created on 31 Aug 2000 Data Last Changed January 2023
(241)A39630-173784 Managed by Italy NSN Created https//www.nsnlookup.com /fsg-16/fsc-1660/us 1660-01
/fsg-59/fsc-5995/us
H-173784 ADAPTER,STRAIGHT,FLANGE TO HOSE RQST NS Request Quotation PC-1006 ADAPTER,STRAIGHT,FLANGE TO
1660015049320 015049320,173784 Upgrade 1660-01-504-9320Compressed Gas Cylinder Valve Connections
H-173784 ADAPTER,STRAIGHT,FLANGE TO HOSE RQST NS Request Quotation PC-1006 ADAPTER,STRAIGHT,FLANGE TO
1660015049320 015049320,173784 Flange To Hose Straight Adapter 014679617 Upgrade your Account Upgrade
Restrictions 1660-01-504-9320
1660-01-504-9320 is a Compressed Gas Cylinder Valve Connections Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1660-01-504-9320
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1660-01-504-9320
- Czech Republic (WZ01)
- Effective Date:
- 1 Aug 2014
- Brazil (YA01)
- Effective Date:
- 1 Nov 2013
- United Kingdom (ZK01)
- Effective Date:
- 1 Feb 2003
- Greece (ZU01)
- Effective Date:
- 1 May 2008
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Jun 2008
Approved Sources 1660-01-504-9320
- Part Number
- Manufacturer
- Status
- 173784
- Manufacturer
- 16827 - B/E Aerospace, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 1660-01-504-9320
- Characteristic
- Specifications
- FIIG
- Specifications
- T162-A
- First End Connection Type [ACKM]
- Threaded External Gas Cylinder
- First End Style Designator [ACKN]
- Flared
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Series/Type Designator [AQSR]
- Unf
- First End Thread Size [AQSQ]
- 17/16-20
- First End Reduced Passage Inside Diameter [ACLN]
- 0.250 Inches Nominal
- Material [MATT]
- Copper Alloy
- Part Name Assigned By Controlling Agency [CXCY]
- Charging Adapter 1/4 In Tube To And10089-3

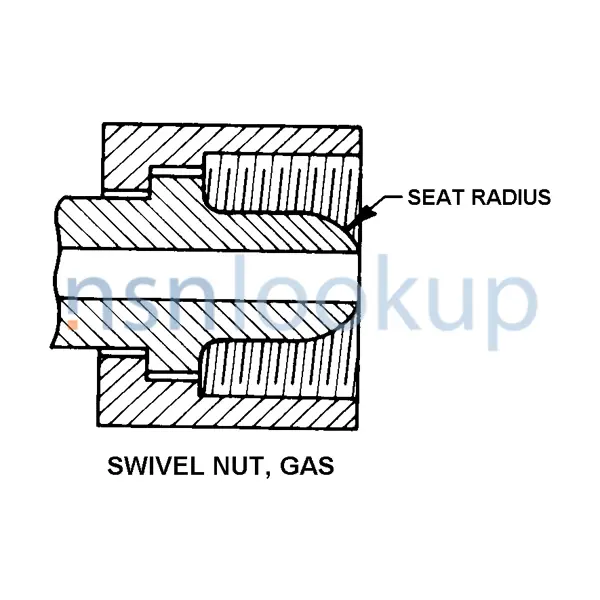

- Second End Style Designator [ACLT]
- Swivel Nut, Gas
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Series/Type Designator [AQST]
- Unf
- Second End Thread Size [AQSS]
- 3/8-24
- Overall Length [ABHP]
- 2.300 Inches Minimum And 2.440 Inches Maximum
- Union End [AQSW]
- Not Included
- Wrenching Facility [AQSX]
- Not Included
- Specific Gas For Which Designed [AENF]
- Oxygen
Similar Supply Items to 1660-01-504-9320
Freight Information 1660-01-504-9320
1660-01-504-9320 has freight characteristics.. 1660-01-504-9320 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
