1650-01-455-3668
Axial Pistons Pump
1650014553668 014553668 997706
A positive displacement device which utilizes the reciprocating motion of a multiple number of parallel pistons arranged axially in a cylinder barrel as a means of transferring a liquid from one place to another. The pistons are actuated by revolving the cylinder barrel at an angle to the drive shaft axis or by a tilting box when the cylinder barrel revolves on the drive shaft. The piston displacement may be fixed or variable. It is designed to be driven by a prime mover which is not an integral part of the pump. View more Axial Pistons Pump
November 2023
4
Product Information 1650-01-455-3668

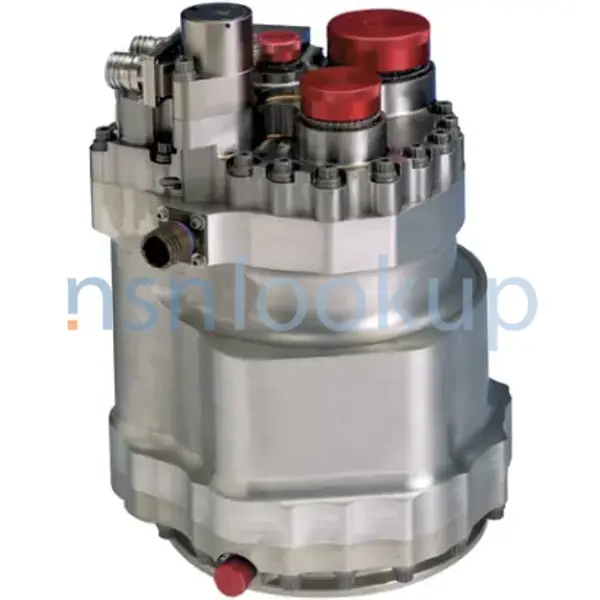

Engine-Driven Hydraulic Pump
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Hydraulic power for flight control and utility systems is provided by two 78.9 gpm (295 L/min.), 4480 rpm, variable displacement, pressure compensated inline pumps. Eaton's hydraulic pump PV3-400-5B incorporates a solenoid actuated, dual pressure range compensator, allowing the flight control computer to select either 3000 psi (20,600 kPa) or 5000 psi (34,500 kPa) pressure operation based on flight surface loading.
Marketplace 1650-01-455-3668
Request a Quotation from participating marketplace vendors
Related Documents 1650-01-455-3668 5+ Documents (More...)
United States (US) 4. 1650-01-455-3668 Marketplace Restrictions Approved Sources Datasheet Management
Marketplace 1650-01-455-3668 Need Help?
6515-01-577-5608 2+ Documents ( More... ) https https//www.nsnlookup.com /fsg-16/fsc-1650/us 1650-01-455-3668
Axial Pistons Pump 1650014553668 014553668 for $1 a day Upgrade your Account Upgrade 1650-01-455
Axial Pistons Pump 1650014553668 014553668 [FEAT]Next Higher Assy Is Nsn 1650-01-455-3668 https
480-1758 CharacteristicSpecificationsFIIGA23900Special Features [FEAT]Next Higher Assy Is Nsn 1650-01-455-3668
Axial Pistons Pump 1650014553668 014553668 Dilation Catheter6515015775608 015775608 997706 https
480-1874 CharacteristicSpecificationsFIIGA23900Special Features [FEAT]Next Higher Assy Is Nsn 1650-01-455-3668
Axial Pistons Pump 1650014553668 014553668 [FEAT]Next Higher Assy Is Nsn 1650-01-455-3668 https
480-1871 CharacteristicSpecificationsFIIGA23900Special Features [FEAT]Next Higher Assy Is Nsn 1650-01-455-3668
Restrictions 1650-01-455-3668
IUID Required
1650-01-455-3668 is a Axial Pistons Pump that is an aviation critical safety item or flight safety critical aircraft part. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1650-01-455-3668
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1650-01-455-3668
- US Navy (N2R4)
- Effective Date:
- 1 Apr 1998
- Supplementary Receivers:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Aug 2008
Approved Sources 1650-01-455-3668
- Part Number
- Manufacturer
- Status
- 997706
- Manufacturer
- 62983 - Eaton Aerospace, Llc (Active)
- Primary Buy
- Primary Buy
Datasheet 1650-01-455-3668
- Characteristic
- Specifications
- FIIG
- Specifications
- A19400
- End Item Identification [AGAV]
- Preprovisioning Support Navicp Is Poe
Management Data 1650-01-455-3668
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Nov 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- L
- R
- Refer To Net Price 22959.00
- NET PRICE 22959.00
- R
Navy
- Cognizance:
- 7R
- Bypass
- Special Material ID:
- QE
- Fighter Aircraft - First (F18 E/F)
- Issue, Repair, Requisition Restriction Code:
- AR
- Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 1650-01-455-3668
Freight Information 1650-01-455-3668
1650-01-455-3668 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 128000. A Sub NMFC of X. It has a NMFC Description of PUMPS PWR NOI/WORKING HEADS/PARTS. 1650-01-455-3668 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 64870 which rates the freight between FCL and LCL. 1650-01-455-3668 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 594 for ocean manifesting and military sealift. 1650-01-455-3668 is not classified as a special type of cargo when transported by water. 1650-01-455-3668 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1650-01-455-3668
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- Wood Blocking and Bracing, Fasteners, or Steel Strapping, for Tie-down purposes. Rubber tired wheels shall be blocked clear of the floor of the crate or skid and shall not be load bearing
- Not Applicable
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- --
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
