1650-01-436-0223
Cylinder Sleeve
1650014360223 014360223 NAV94101 NAV94101-01 NAV94101 REV B
A tubular metal item designed primarily as a replaceable wear surface within the cylinder bore of a piston type internal combustion engine, compressor, or reciprocating pump. View more Cylinder Sleeve
November 2023
5
Marketplace 1650-01-436-0223
Request a Quotation from participating marketplace vendors
Related Documents 1650-01-436-0223 1+ Documents (More...)
BUY NE FedMall Updated Every Day 1650-01-436-0223 RQST NE Updated Every Day 1650-01-436-0223 RQST
Updated Every Day 1650-01-436-0223 RQST NE Related Documents 1650-01-436-0223 1+ Documents ( More...
Restrictions 1650-01-436-0223
1650-01-436-0223 is a Cylinder Sleeve that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1650-01-436-0223
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1650-01-436-0223
- US Navy (N9BG)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- GTKE
Approved Sources 1650-01-436-0223
- Part Number
- Manufacturer
- Status
- NAV94101-01
- Manufacturer
- 7Z726 - Engility Corporation (Active)
- Primary Buy
- Primary Buy
- NAV94101-01
- 66839 - Drs C3 & Aviation Company (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- NAV94101
- 1S6F6 - Drs Technical Services, Inc. (Active)
- Advisory Reference
- Advisory Reference
- NAV94101 REV B
- 7Z726 - Engility Corporation (Active)
- Informational Drawing
- Informational Drawing
Datasheet 1650-01-436-0223
- Characteristic
- Specifications
- FIIG
- Specifications
- T267-B

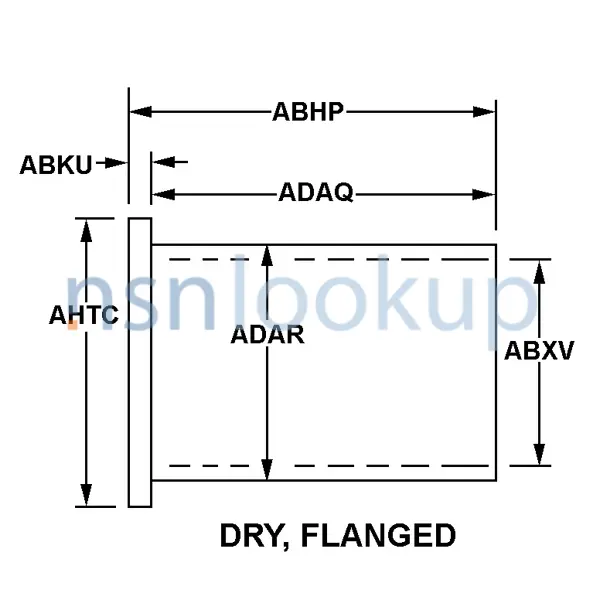

- Body Length [ADAQ]
- 14.539 Inches Nominal
- Body Outside Diameter [ADAR]
- 3.250 Inches Nominal
- Bore Diameter [ABXV]
- 2.900 Inches Nominal
- Bottom Inside Chamfer [BPPW]
- Not Included
- Chamfer Angle In Deg [AATE]
- 45.0
- Chamfer Length [AAZP]
- 0.030 Inches Nominal
- Design Type [APGF]
- Dry
- Flange Outside Diameter [AHTC]
- 3.438 Inches Nominal
- Flange Thickness [ABKU]
- 1.000 Inches Nominal
- Material [MATT]
- Steel Corrosion Resisting
- End Item Identification [AGAV]
- Tfu Boom Aircraft, 1560-01-420-5525
- Intake Hole [BQBF]
- Not Included
- Overall Length [ABHP]
- 15.539 Inches Nominal
- Special Features [FEAT]
- Material Is Stainless Steel Pipe, Nominal 3In. Dia, Type 304, Schedule 80S Iaw Astm A 312
- Top Inside Chamfer [BPPT]
- Included
- Top Intake Port [BPPX]
- Not Included
- Valve Recess [BPPS]
- Not Included
- Style Designator [STYL]
- Dry, Flanged
- Surface Treatment [SFTT]
- Passivate
