1650-01-301-2297
Linear Actuating Cylinder Assembly
1650013012297 013012297 02-1400-3 16VH400-3 1650PL0659886
A cylinder containing a piston and other component parts designed to develop linear motion required to operate a given object(s) with energy generated from either pneumatic or hydraulic pressure(s). See also CYLINDER, ACTUATING, LINEAR. Do not use if a more specific name applies. View more Linear Actuating Cylinder Assembly
November 2023
21
Marketplace 1650-01-301-2297
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 1650-01-301-2297 1+ Documents (More...)

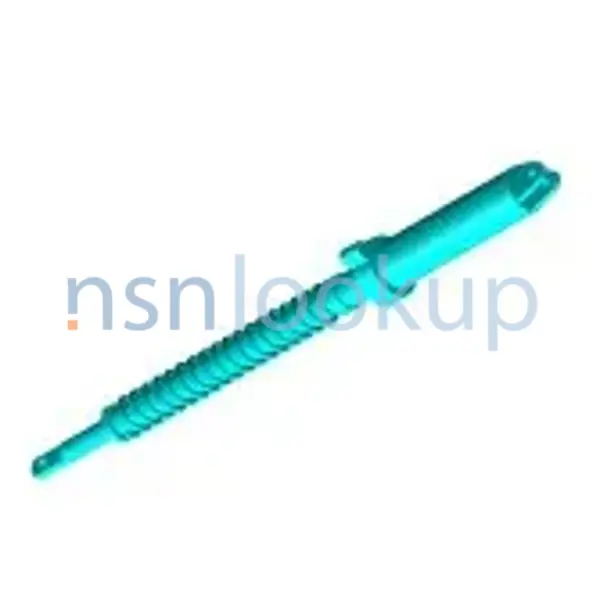

Photo 1/3 NSN 1650-01-301-2297 (Identification) 2/3 NSN 1650-01-301-2297 (Identification) 3/3 -
,LINEAR 1 EA NS Request Quotation Updated Every Day 1650-01-301-2297 RQST NE Updated Every Day 1650-01
Restrictions 1650-01-301-2297
1650-01-301-2297 is a Linear Actuating Cylinder Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1650-01-301-2297
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1650-01-301-2297
- US Air Force (FUGG)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- FUCX
- Poland (WP01)
- Effective Date:
- 1 Aug 2007
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1998
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Nov 2011
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 1650-01-301-2297
- Part Number
- Manufacturer
- Status
- 02-1400-3
- Manufacturer
- 09445 - Dukes Aerospace, Inc. (Active)
- Primary Buy
- Primary Buy
- 02-1400-3
- 55822 - Gst Industries Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 1650PL0659886
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 16VH400-3
- 81755 - Lockheed Martin Corporation (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 1650-01-301-2297
- Characteristic
- Specifications
- FIIG
- Specifications
- A34200
- Compressed Length [AMQZ]
- 18.440 Inches Nominal
- Design Characteristics [CKSD]
- Single Acting Single Cylinder
- Extended Length [ATEM]
- 23.700 Inches Nominal
- First End Fork Width [CLMD]
- 1.000 Inches Nominal
- First End Hole Diameter [AMDX]
- 0.37525 Inches Nominal
- First End Thickness At Mounting Holes [AMPC]
- 0.156 Inches Nominal
- First End Tongue Length [CDTR]
- 1.500 Inches Nominal
- First Piston Rod End Style [CKSF]
- Tongue Type
- End Item Identification [AGAV]
- F-16 C/D Aircraft
- Fsc Application Data [ZZZV]
- Aircraft Hydraulic,Vacuum,Deicing Systems
- Integral Valve Operation Method [CKRM]
- Pneumatic
- Piston Rod End Similarity [CLLP]
- Not Identical
- Second End Fork Span Width [CLMK]
- 0.3760 Inches Nominal
- Second End Hole Diameter [AMGS]
- 0.37525 Inches Nominal
- Second Piston Rod End Style [CLLQ]
- Fork Type (Clevis)
- Overall Diameter [ADAV]
- 2.250 Inches Nominal
- Special Features [FEAT]
- Actuator Can Be Used To Replace All Replacements Of The -2
Weapon Systems (WSDC) 1650-01-301-2297
DLA Procurement Analysis 1650-01-301-2297
- Last Stock Position:
- 15 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1650-01-301-2297
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- WF
- F-16 AIR COMBAT FIGHTER
- Price Validation Code:
- P
- The current standard price is the initial negotiated provisioned price.
This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price.
ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
- Expendability
Recoverability
Repairability: - P
- Expendable. Reparable. Condemn at Intermediate. Stock Fund (except Munitions).
Similar Supply Items to 1650-01-301-2297
Freight Information 1650-01-301-2297
1650-01-301-2297 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 119260. A Sub NMFC of X. It has a NMFC Description of CYLINDERS:HYDRAULIC/PNEUMATIC. 1650-01-301-2297 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 60780 which rates the freight between FCL and LCL. 1650-01-301-2297 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 593 for ocean manifesting and military sealift. 1650-01-301-2297 is not classified as a special type of cargo when transported by water. 1650-01-301-2297 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1650-01-301-2297
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 1650-01-301-2297 8 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPRPA123P1010
- 20 Sep 2023
- Subscribe
- 52
- Subscribe
- Subscribe
- Subscribe
- SPE4A721PA633P00001
- 23 Jun 2021
- Subscribe
- 52
- Subscribe
- Subscribe
- Subscribe
- SPE4A718PB202P00001
- 07 Jun 2018
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPE4A718P4677
- 24 Jan 2018
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
- SPE4A718P3092P00002
- 22 Dec 2017
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE4A715M8415P00003
- 26 Jun 2015
- Subscribe
- 13
- Subscribe
- Subscribe
- Subscribe
- SPE4A714MC366P00003
- 27 Aug 2014
- Subscribe
- 17
- Subscribe
- Subscribe
- Subscribe
- SPE4A714M4846P00003
- 24 Jun 2014
- Subscribe
- 30
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 1650-01-301-2297 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
