1650-01-189-1724
Aircraft Hydraulic Swivel Joint
1650011891724 011891724 AE82079G 7-217221652
A mechanical fluid passage joint designed for linkage of aircraft rigid hydraulic lines and components subject to pivotal, linear, or rotational position changes.The device allows two-directional flow of high pressure fluid and permits single plane rotation upon its axis.It may also allow for angular movement.Excludes SWIVEL JOINT, PIPE; and SWIVEL JOINT, TUBE. View more Aircraft Hydraulic Swivel Joint
November 2023
13
Marketplace 1650-01-189-1724
Request a Quotation from participating marketplace vendors
Related Documents 1650-01-189-1724 1+ Documents (More...)
United States (US) 4. 1650-01-189-1724 Marketplace Restrictions Approved Sources Datasheet Management
SWIVEL JOINT,HYDRAULIC,AIRCRAFT 4 EA NS Request Quotation Updated Every Day 1650-01-189-1724 RQST NE
Restrictions 1650-01-189-1724
1650-01-189-1724 is a Aircraft Hydraulic Swivel Joint that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1650-01-189-1724
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1650-01-189-1724
- US Army (A920)
- Effective Date:
- 1 Aug 2005
- Former MOE Rule:
- A183
- Supplementary Receivers:
- BFCT
- US Navy (N9BG)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Singapore (YJ01)
- Effective Date:
- 1 Jul 2001
- United Kingdom (ZK01)
- Effective Date:
- 1 Mar 1999
- Netherlands (ZN01)
- Effective Date:
- 1 Jun 1999
- Greece (ZU01)
- Effective Date:
- 1 May 2006
Approved Sources 1650-01-189-1724
- Part Number
- Manufacturer
- Status
- AE82079G
- Manufacturer
- 00624 - Eaton Aeroquip Llc (Active)
- Primary Buy
- Primary Buy
- 7-217221652
- 02731 - Mcdonnell Douglas Helicopter Co Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 7-217221652
- 8V613 - The Boeing Company (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 1650-01-189-1724
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flareless (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Material [MATT]
- Aluminum Overall Or Steel Overall
- Maximum Operating Temp [AEHZ]
- 275.0 Deg Fahrenheit Single Response
- Media For Which Designed [MEDA]
- Aeronautical Fluid Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.562 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- 2 Type And 3000 Class And A Style
- Leg Length [AHSJ]
- 1.101 Inches Nominal All Ends
- Seat Angle [CQRB]
- 12.0 Degrees All Ends
- Specification/Standard Data [ZZZK]
- 81348-Mil-J-5513 Government Specification

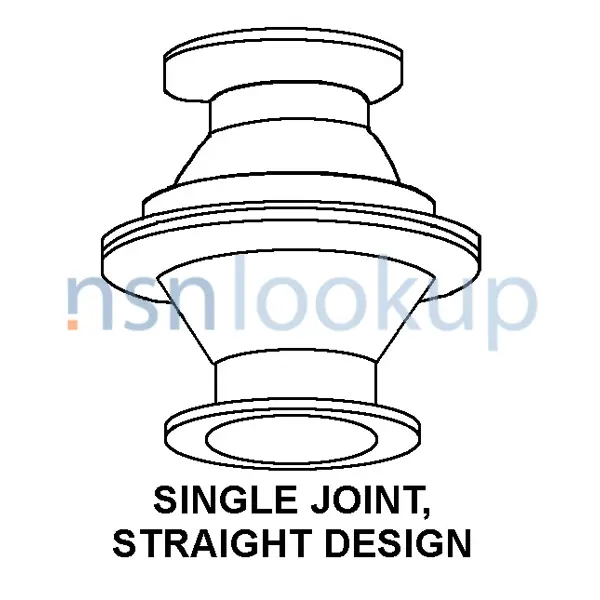

- Style Designator [STYL]
- Single Joint, Straight Design
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
Weapon Systems (WSDC) 1650-01-189-1724
DLA Procurement Analysis 1650-01-189-1724
- Last Stock Position:
- 56 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1650-01-189-1724
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BJ
- Rotary Wing Aircraft
AH-64 Airframe
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 1650-01-189-1724
Freight Information 1650-01-189-1724
1650-01-189-1724 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 011790. A Sub NMFC of Z. It has a NMFC Description of AIRCRAFT PARTS NOI. 1650-01-189-1724 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 04720 which rates the freight between FCL and LCL. 1650-01-189-1724 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1650-01-189-1724 is not classified as a special type of cargo when transported by water. 1650-01-189-1724 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1650-01-189-1724
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.0" H x 2.5" W x 1.3" L
- --
- --
- --
- Any Suitable Process
- 3.0" H x 2.5" W x 1.3" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- MIL-DTL-117, Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 1650-01-189-1724 6 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A518P7398P00001
- 16 Jul 2018
- Subscribe
- 77
- Subscribe
- Subscribe
- Subscribe
- SPE4A518P6940P00001
- 25 Jun 2018
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE4A517P9663
- 21 Aug 2017
- Subscribe
- 32
- Subscribe
- Subscribe
- Subscribe
- SPE4A416VE870
- 19 Aug 2016
- Subscribe
- 28
- Subscribe
- Subscribe
- Subscribe
- SPE4A715MA309P00001
- 22 Aug 2015
- Subscribe
- 38
- Subscribe
- Subscribe
- Subscribe
- SPE4A413VL552P00001
- 26 Sep 2013
- Subscribe
- 32
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 1650-01-189-1724 February 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
