1650-01-158-9694
Servocylinder
1650011589694 011589694 34001890-109 10106158
A hydraulically or pneumatically powered actuating cylinder with provisions for directional control (positioning) in direct relation with a primary control of comparatively low level force. The primary control input to the servocylinder may be mechanical and/or electrical. View more Servocylinder
August 2023
17
Marketplace 1650-01-158-9694
Request a Quotation from participating marketplace vendors
Related Documents 1650-01-158-9694 3+ Documents (More...)
(Identification) 1/2 NSN 1650-01-158-9694 (Identification) 2/2 - - 1.
United States (US) 4. 1650-01-158-9694 Marketplace Restrictions Approved Sources Datasheet Management
Request a Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 10106158
ADJUSTING TOOL,AZIMUTH 4 EA NS Request Quotation 10106158 ADJUSTING TOOL,AZIMUTH 4 EA NS Request Quotation
Restrictions 1650-01-158-9694
IUID Required
1650-01-158-9694 is a Servocylinder This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1650-01-158-9694
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1650-01-158-9694
- US Navy (N2R4)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Finland (WF01)
- Effective Date:
- 1 Feb 2009
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Jan 2008
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1650-01-158-9694
- Part Number
- Manufacturer
- Status
- 34001890-109
- Manufacturer
- 76301 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 34001890-109
- 56540 - Associated Aircraft Manufacturing & (Active)
- Secondary Buy
- Secondary Buy
- 34001890-109
- 81873 - Woodward Hrt Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10106158
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 1650-01-158-9694
- Characteristic
- Specifications
- FIIG
- Specifications
- A34200
- Compressed Length [AMQZ]
- 14.080 Inches Nominal
- Design Characteristics [CKSD]
- Double Acting Single Cylinder
- Extended Length [ATEM]
- 18.460 Inches Nominal
- First End Hole Diameter [AMDX]
- 0.624 Inches Minimum And 0.625 Inches Maximum
- First End Thickness At Mounting Holes [AMPC]
- 0.625 Inches Nominal
- First End Outside Diameter [AAHB]
- 1.620 Inches Nominal
- First Piston Rod End Style [CKSF]
- Bearing Type
- Mounting Type And Location [CLML]
- Bearing Both Ends
- Integral Valve Operation Method [CKRM]
- Electric
- Port Location And Quantity [CLMS]
- 2 Piston Rod End
- Port Style [CLMT]

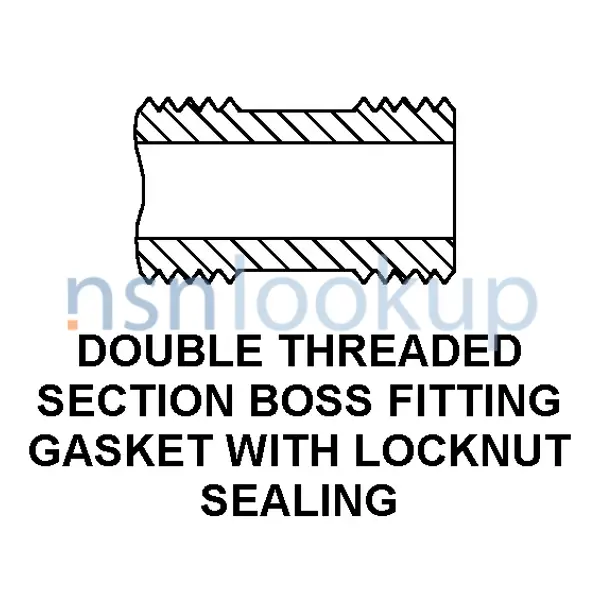

- Double Threaded Section Boss Fitting Gasket With Locknut Sealing
