1630-01-143-5707
Brake Control Servovalve Assembly
1630011435707 011435707 MC12364-3 10153837
INC: 77777
November 2023
14
Product Information 1630-01-143-5707

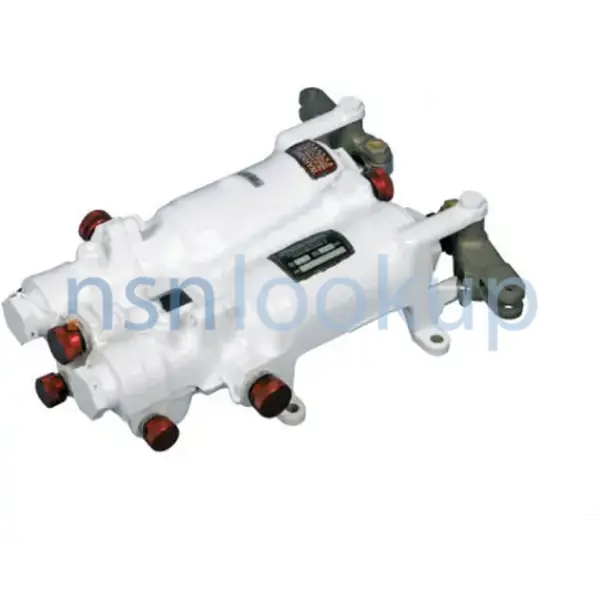

Dual Brake Valve
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Eaton's dual brake valves provide independent and proportional brake control to the right and left main landing gear brakes under normal and emergency conditions. The dual brake valves are a hydraulic servo design that provides a hydraulic pressure output proportional to the pilot's mechanical input force. he brake valve provides normal brake pressure, emergency brake pressure and parking brake pressure using 3000 psi (20,600 kPa) system pressure.
Marketplace 1630-01-143-5707
Request a Quotation from participating marketplace vendors
Related Documents 1630-01-143-5707 5+ Documents (More...)
NATO Update Count 14 NATO Data Quality 1630-01-143-5707 Photo 1/1 1.
United States (US) 4. 1630-01-143-5707 Marketplace Restrictions Approved Sources Datasheet Management
1630/us 1630-00-115-2046 Parking Brake Valve 1630001152046 001152046 115-5464 1630-01-182-9879 1630-01-143-5707
1630/us 1630-00-977-1851 Brake Cylinder Guide 1630009771851 009771851 115-5464 1630-01-182-9879 1630-01-143-5707
Restrictions 1630-01-143-5707
IUID Required
1630-01-143-5707 is a Brake Control Servovalve Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
Import and Export 1630-01-143-5707
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1630-01-143-5707
- US Navy (N2R4)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
- Finland (WF01)
- Effective Date:
- 1 Jun 2009
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Apr 2007
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1630-01-143-5707
- Part Number
- Manufacturer
- Status
- MC12364-3
- Manufacturer
- 3CF92 - Jdc Industries, Inc. (Obsolete)
- Original Design
- Original Design
- MC12364-3
- 76050 - Eaton Aerospace Llc (Active)
- Secondary Buy
- Secondary Buy
- 10153837
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 1630-01-143-5707
- Characteristic
- Specifications
- FIIG
- Specifications
- A23900
- End Item Identification [AGAV]
- Aircraft Model F-18
- General Characteristics Item Description [TEXT]
- Body-Aluminum,Type 7075-T73; Anodized; Designed For Hydraulic Fluid Per Mil-H-83282; Ambient Temperature Rating,Minus 65.0 Deg F To Plus 275.0 Deg F; 3000.0 Psig Pressure Port Operating Pressure; 85.0 Psi Return Port Operating Pressure
Management Data 1630-01-143-5707
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- L
- R
- Refer To Net Price 9984.00
- NET PRICE 9984.00
- R
Navy
- Cognizance:
- 7R
- Bypass
- Special Material ID:
- GF
- Fighter Support Aircraft (F/A-18)
- Issue, Repair, Requisition Restriction Code:
- AR
- Repairable item subject to centrally managed rework program at designated sites. Mandatory turn-in of item required except when initial issue or replacement of surveyed item is involved
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 1630-01-143-5707
Freight Information 1630-01-143-5707
1630-01-143-5707 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051080. A Sub NMFC of Z. It has a NMFC Description of FAUCETS,BIBCOCKS,GATES VALVES. 1630-01-143-5707 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 1630-01-143-5707 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 29300 which rates the freight between FCL and LCL. 1630-01-143-5707 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1630-01-143-5707 is not classified as a special type of cargo when transported by water. 1630-01-143-5707 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
