1620-01-296-4328
Landing Gear Direct Action Shock Absorber
1620012964328 012964328 2006101-105
A pneumatically or hydraulically damped coupling used to absorb forces generated by the contact of aircraft landing gear with a landing surface. View more Landing Gear Direct Action Shock Absorber
May 2023
21
Marketplace 1620-01-296-4328
Request a Quotation from participating marketplace vendors
Related Documents 1620-01-296-4328 1+ Documents (More...)
(Identification) 1/2 NSN 1620-01-296-4328 (Identification) 2/2 - - 1.
United States (US) 4. 1620-01-296-4328 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 1620-01-296-4328
IUID Required
1620-01-296-4328 is a Landing Gear Direct Action Shock Absorber that is an aviation critical safety item or flight safety critical aircraft part. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1620-01-296-4328
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1620-01-296-4328
- US Air Force (FUU5)
- Effective Date:
- 1 Oct 2013
- Former MOE Rule:
- FUU4
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1620-01-296-4328
- Part Number
- Manufacturer
- Status
- 2006101-105
- Manufacturer
- 17576 - Goodrich Corp (Replaced)
- Original Design
- Original Design
- 2006101-105
- 6K4C8 - Goodrich Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 1620-01-296-4328
- Characteristic
- Specifications
- FIIG
- Specifications
- T312-X
- Operation Method [APHE]
- Hydraulic
- Hydraulic System Fluid Capacity [AMZZ]
- 60.0 Cubic Inches
- Filler Plug [BXGC]
- Included
- Side Attached Fluid Tank [BXGD]
- Not Included

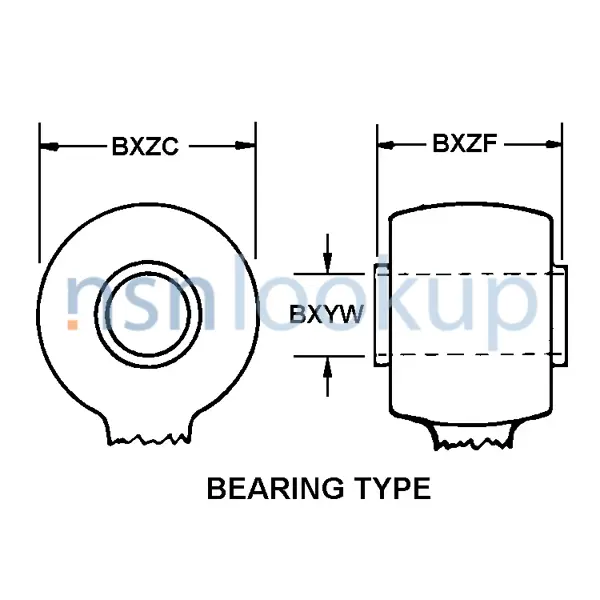

- Piston End Connection Style [BXYS]
- Bearing Type

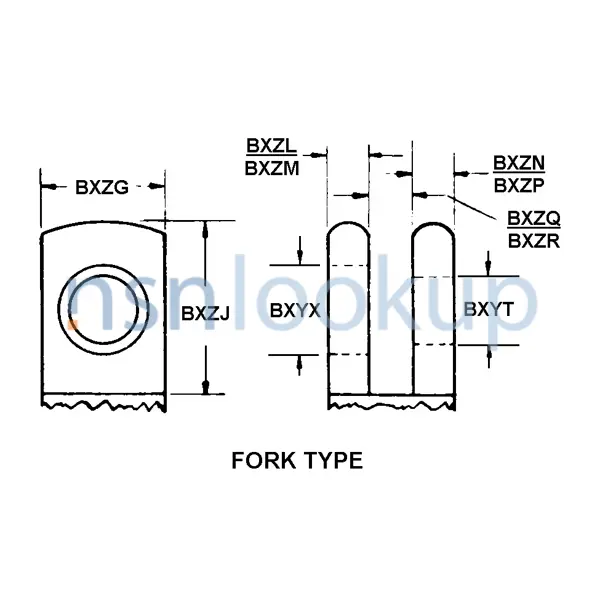

- Cylinder End Connection Style [BYBF]
- Fork Type
- Compressed Length [AMQZ]
- 32.660 Inches Nominal
- Extended Length [ATEM]
- 36.850 Inches Nominal
- Stroke Length [AMWL]
- 2.420 Inches Nominal
- Special Features [FEAT]
- Used On Main Landing Gear.Form,Fit,Funtion
- Criticality Code Justification [CRTL]
- Feat
- End Item Identification [AGAV]
- F-16 Aircraft
- Fsc Application Data [ZZZV]
- Aircraft Hydraulic,Vacuum,Deicing Systems
Management Data 1620-01-296-4328
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- L
- R
- Refer To Net Price 15473.51
- NET PRICE 15473.51
- R
Similar Supply Items to 1620-01-296-4328
Freight Information 1620-01-296-4328
1620-01-296-4328 has freight characteristics managed by Denmark.It has a National Motor Freight Classification (NMFC) of 012190. A Sub NMFC of B. It has a NMFC Description of AIRCRAFT LANDING GEARS ETC SUB2. 1620-01-296-4328 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 04870 which rates the freight between FCL and LCL. 1620-01-296-4328 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1620-01-296-4328 is not classified as a special type of cargo when transported by water. 1620-01-296-4328 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1620-01-296-4328
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 22.8" H x 4.5" W x 3.5" L
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 6.3" H x 6.3" W x 24.5" L
- --
- --
- Preservative Coating Only
- Any Suitable Process
- 6.3" H x 6.3" W x 24.5" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-16173, Grade 2, Corrosion Preventive, Solvent Cutback, Cold Application, Soft Film
- MIL-PRF-121, Greaseproof, Waterproof Barrier
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- MIL-PRF-121, Greaseproof, Waterproof Barrier
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
