1560-00-169-0533

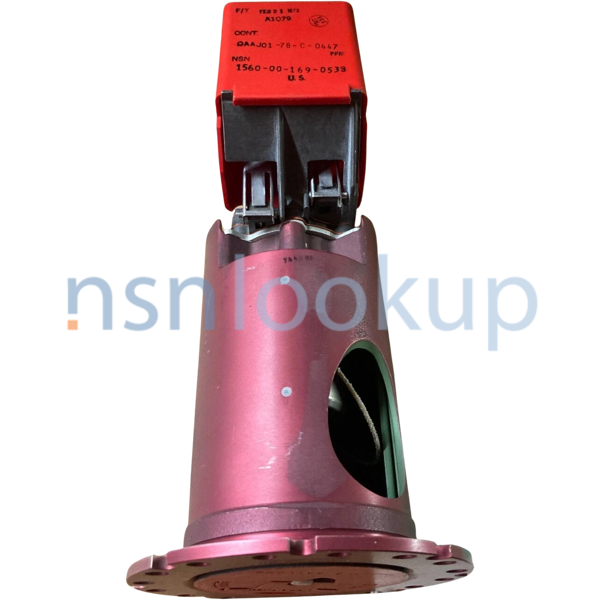

Refueling System Cap And Receiver Assembly
1560001690533 001690533 209-060-651-5 CCR101-05 209-060-651-005 744000-5
INC: 77777
August 2025
17
Marketplace 1560-00-169-0533
Request a Quotation from participating marketplace vendors
Updated Every Day Related Documents 1560-00-169-0533 2+ Documents (More...)
United States (US) 4. 1560-00-169-0533 Marketplace Restrictions Approved Sources Datasheet Management
CAP AND RECEIVER ASSEMBLY,REFUELING SYSTEM 2 EA NS Request Quotation 209-060-651-5 CAP AND RECEIVER
Assembly on 18 Nov 1970 Data Last Changed November 2023 NATO Update Count 17 NATO Data Quality NSN 1560-00-169-0533
United States (US) 4. 1560-00-169-0533 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 1560-00-169-0533
1560-00-169-0533 is a Refueling System Cap And Receiver Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. The precious metals content of this item is unknown.
Import and Export 1560-00-169-0533
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1560-00-169-0533
- US Army (A919)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- A180
- Supplementary Receivers:
- CT
- US Air Force (FGGG)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FGCX
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Mar 2017
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jan 2001
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 1560-00-169-0533
- Part Number
- Manufacturer
- Status
- 209-060-651-5
- Manufacturer
- 97499 - Bell Textron Inc (Active)
- Source Control
- Source Control
- CCR101-05
- 79326 - Transdigm Inc (Active)
- Primary Buy
- Primary Buy
- 209-060-651-005
- 97499 - Bell Textron Inc (Active)
- Secondary Buy
- Secondary Buy
- 744000-5
- 96124 - Transdigm Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 1560-00-169-0533
- Characteristic
- Specifications
- FIIG
- Specifications
- A23900
- General Characteristics Item Description [TEXT]
- Oreceiver,3.750 In. Max Dia,0 To 125 Psig Operating Pressure,180 Psig Proof Pressure,225 Psig Burst Pressure,6.5 Gpm Acceptance,Ambient Temp Range Minus 65 Deg Min,165 Deg Max,Fluid Temp Range Minus 65 Deg Min,135 Deg Max,Flange Dim.,0.180 In. Thk,5.350 Dia W/1 Flatted Side,14 Mtg Holes,0.311 In. Min,0.318 In. Max Dia,7 Retaining Lugs,0.155 In. Min,0.159 In. Max Radius,Normal Mtg Attitude 5 Deg,For Use With Hydrocarbon Fuels,Elec Res 10 Ohms Or Less,Dust Cap Included
Weapon Systems (WSDC) 1560-00-169-0533
DLA Procurement Analysis 1560-00-169-0533
- Last Stock Position:
- 15 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1560-00-169-0533
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 1560-00-169-0533
Freight Information 1560-00-169-0533
1560-00-169-0533 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051100. A Sub NMFC of X. It has a NMFC Description of FILL CAPS/PIPES COMBINED OIL TANK. 1560-00-169-0533 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 1560-00-169-0533 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 29500 which rates the freight between FCL and LCL. 1560-00-169-0533 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 671 for ocean manifesting and military sealift. 1560-00-169-0533 is not classified as a special type of cargo when transported by water. 1560-00-169-0533 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1560-00-169-0533
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
- Storage Environment
- Unheated General Purpose
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 10.0" H x 4.0" W x 4.0" L
- --
- --
- 2lb to 5lb, all dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 12.0" H x 6.0" W x 6.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 12.0" H x 6.0" W x 6.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Procurement History 1560-00-169-0533 1 Records
Contracting Technical Data File (CTDF) 1560-00-169-0533 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
