1330-58-000-1750

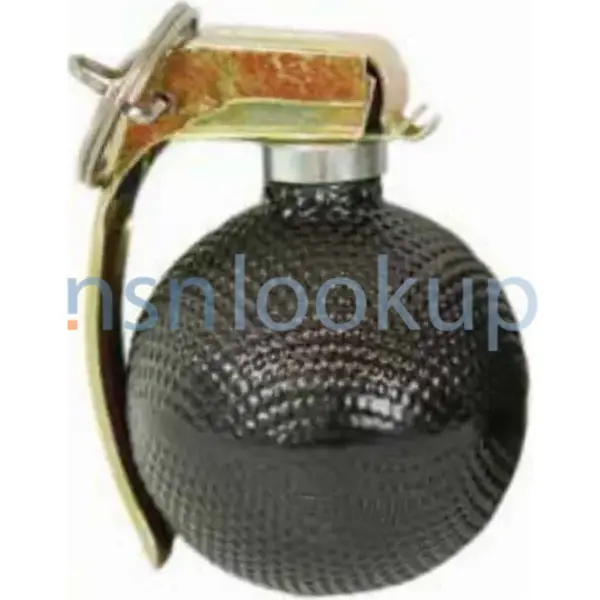

HGF165-3.5 FRAGMENTATION HAND GRENADE (HGF)

HGF is meant for defensive use and provides a dense cloud of fragments with a nearly even 360˚ distribution. The steel bodies are uniformly pre-fragmented to provide optimized penetration performance with a distribution of near-equal-sized fragments. With a compact size and weight, HGF165-3.5 is designed to be used in urban areas.

Dimensions Height with fuze 93 mm Steel body diameter 63 mm
Weight 450 g
Explosive filling Comp B (hexotol 60/40)  or PBXN-110 165 g
Delay 3–5 s
Total number of fragments 2 500
Service temperature -46°C to +63°C
Storing temperature -54°C to +71°C

HGF165-3.5 is qualified with the Finnish Defence Forces.
