1240-01-079-3051
Optical Element Retainer
1240010793051 010793051 12279244
A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED. View more Optical Element Retainer
November 2023
7
Marketplace 1240-01-079-3051
Request a Quotation from participating marketplace vendors
Related Documents 1240-01-079-3051 1+ Documents (More...)
/fsg-12/fsc-1240/us
United States (US) 4. 1240-01-079-3051 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 1240-01-079-3051 RQST NE Updated Every Day 1240-01-079-3051 RQST
Restrictions 1240-01-079-3051
1240-01-079-3051 is a Optical Element Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1240-01-079-3051
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1240-01-079-3051
- US Army (A918)
- Effective Date:
- 1 Dec 2009
- Former MOE Rule:
- A403
- Supplementary Receivers:
- AZCNBF
- US Marine Corps (MC49)
- Effective Date:
- 1 Dec 2009
Approved Sources 1240-01-079-3051
- Part Number
- Manufacturer
- Status
- 12279244
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy

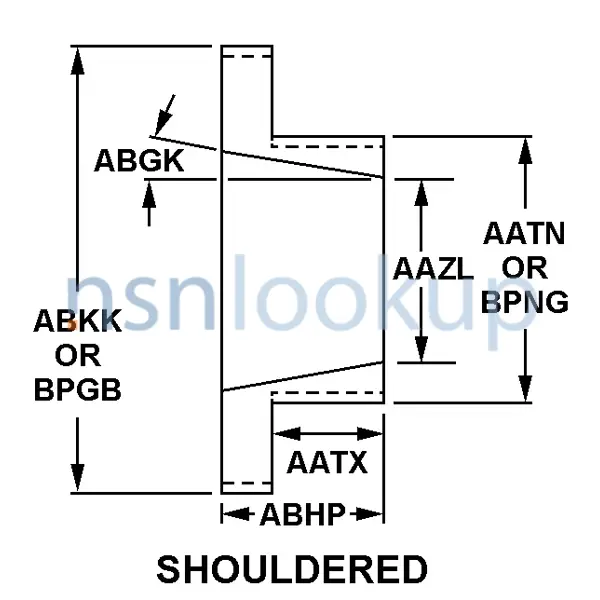

Datasheet 1240-01-079-3051
- Characteristic
- Specifications
- FIIG
- Specifications
- T271-K
- Drive Facility Angular Spacing In Deg [BMTN]
- 180.0
- Drive Type [AKCV]
- Slotted
- Depth [AEJZ]
- 0.060 Inches Nominal
- Flange Thread Size [BPGB]
- 1.4375 In.-32
- Guide Design [BMTQ]
- Thread Relief
- Guide Location [BMTR]
- Edge Opposite Drive Edge
- Hole Or Slot Quantity [ABKT]
- 2
- Material Document And Classification [MDCL]
- Qq-A-225/3, Alloy 2011, T3 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy 2011
- Internal Annular Serration [BMTS]
- Not Provided
- Setscrew Notch [BMTT]
- Not Provided
- Shoulder Diameter [AATN]
- 1.344 Inches Nominal
- Shoulder Length [AATX]
- 0.094 Inches Nominal
- Overall Length [ABHP]
- 0.312 Inches Nominal
- Width [ABGL]
- 0.060 Inches Nominal
- Style Designator [STYL]
- Shouldered
- Surface Treatment [SFTT]
- Anodize
- Tapered Hole Minor Diameter [AAZL]
- 1.197 Inches Nominal
- Taper Angle In Deg [ABGK]
- 5.0
Weapon Systems (WSDC) 1240-01-079-3051
DLA Procurement Analysis 1240-01-079-3051
- Last Stock Position:
- 36 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1240-01-079-3051
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- JE
- Tanks
Tank, M1 Abrams Family of Vehicles (FOV)
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 1240-01-079-3051
Freight Information 1240-01-079-3051
1240-01-079-3051 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058110. A Sub NMFC of X. It has a NMFC Description of OPTICAL GOODS OR INSTRUMENTS NOI. 1240-01-079-3051 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. 1240-01-079-3051 is rated as class 200 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 33110 which rates the freight between FCL and LCL. 1240-01-079-3051 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 1240-01-079-3051 is not classified as a special type of cargo when transported by water. 1240-01-079-3051 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
