1240-00-759-7853

Straight Telescope

1240007597853 007597853 7597853 1240-759-7853

A telescope whose line of vision is 180 degrees from the eye. View more Straight Telescope

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
May 2023

NATO Update Count
20

NATO Data Quality

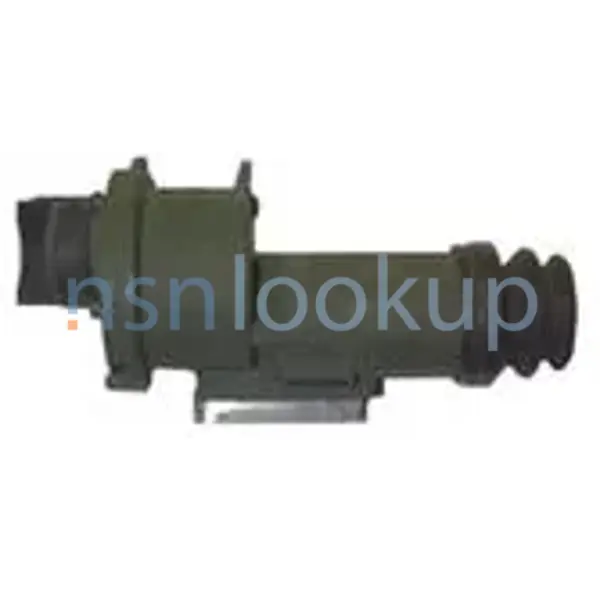

1240-00-759-7853 TELESCOPE,STRAIGHT 1240007597853 007597853 1/2 — 1240-00-759-7853 Photo 1/2

BLPX Style A6 for 1240-00-759-7853 2/2 — NSN 1240-00-759-7853 (Identification) 2/2

Marketplace 1240-00-759-7853

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

1240-00-759-7853 RQST NE

Restrictions 1240-00-759-7853

1240-00-759-7853 is a Straight Telescope that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 1240-00-759-7853

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 1240-00-759-7853

Austria (WB01)
Effective Date:: 1 Feb 2005

Morocco (YP01)
Effective Date:: 1 Apr 2011

Canada (ZC01)
Effective Date:: 1 Apr 1991

France (ZF01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Denmark (ZS01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Apr 2002

Approved Sources 1240-00-759-7853

Part Number
Manufacturer
Status
7597853: 19200 - Combat Capabilities Development (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
1240-759-7853: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 1240-00-759-7853

Characteristic
Specifications
FIIG: T271-A
Bracket [AQFH]: Not Provided
Carrying Case [AFJU]: Provided
Field View Coverage [BLDD]: 13 Deg 20 Min
Focusing Type [BCTD]: Fixed
Objective Aperture Diameter [BLPM]: 22.86 Millimeters Nominal
Optical Device Type [BLPK]: Lens And Prism
Instrument Light Model Number [BLQB]: M36
Magnification Type [BLPQ]: Fixed
Magnification [BLPR]: 3X Nominal
Reticle Identifying Number [BLPY]: 1240-765-3239
Reticle Style Designator [BLPX]: Vertically Graduated
Scale Markings [BLPW]: Not Provided
Straight Type Overall Length [BLPS]: 7.500 Inches Nominal

Similar Supply Items to 1240-00-759-7853

Freight Information 1240-00-759-7853

1240-00-759-7853 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058350. A Sub NMFC of Z. It has a NMFC Description of TELESCOPES NOI. 1240-00-759-7853 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 1240-00-759-7853 is rated as a variable freight class when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 32900 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 1240-00-759-7853 is not classified as a special type of cargo when transported by water. 1240-00-759-7853 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 1240-00-759-7853

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); Packaging Data does not meet current MIL-STD-2073-1E

Storage Environment: Unheated General Purpose

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: --; 7.2" H x 5.5" W x 4.6" L; --; --; --; Special Requirements

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: Special Requirement; Special Requirements – see Specific Instructions or Drawings provided; Special Requirements. See Specific Instructions or Drawings Provided; Special Requirements. See Specific Instructions or Drawings Provided; Special requirement – See specific instructions or drawings provided; --

Intermediate Pack Level

Quantity of Unit Packs
Container: Special requirement – See specific instructions or drawings provided
