1240-00-509-2743

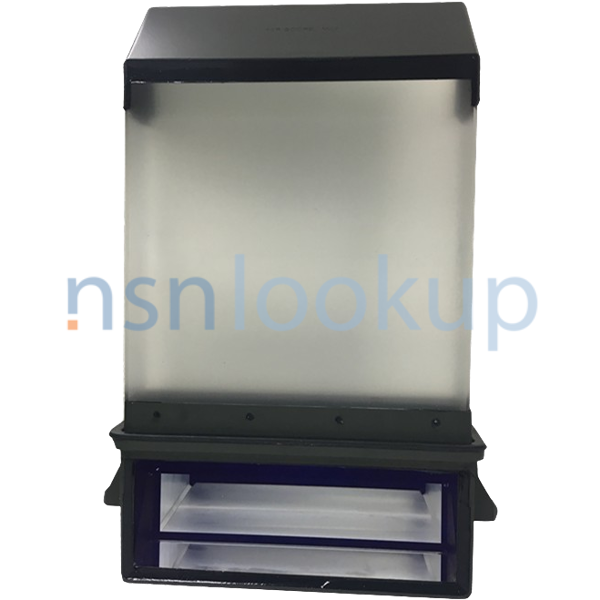

M45 Armored Vehicle Periscope
1240005092743 005092743 8213430 10418896
A rectangular or cylindrical periscope, usually positioned in a holder, or mount within an armored vehicle. It is used to observe terrain, near and distant targets, and the like. It may also be linked to gun-training mechanisms for integration of movement for fire control purposes. View more Armored Vehicle Periscope
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
August 2025
August 2025
NATO Update Count
38
38
NATO Data Quality
Marketplace 1240-00-509-2743
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 1240-00-509-2743 3+ Documents (More...)
8213430 10418896 A rectangular or cylindrical periscope, usually positioned in a holder, or mount within
/us 1240-00-509-2743 M45 Armored Vehicle Periscope 1240005092743 821343010418896 A rectangular or cylindrical
https//www.nsnlookup.com /fsg-12/fsc-1240/us 1240-00-509-2743 Armored Vehicle Periscope 1240005092743
/us 1240-00-509-2743 M45 Armored Vehicle Periscope 1240005092743 821343010418896 A rectangular or cylindrical
https//www.nsnlookup.com /fsg-12/fsc-1240/us 1240-00-509-2743 Armored Vehicle Periscope 1240005092743
8213430 10418896 A rectangular or cylindrical periscope, usually positioned in a holder, or mount within
United States (US) 4. 1240-00-509-2743 Marketplace Restrictions Approved Sources Datasheet Management
1240-00-509-2743 DEMIL: D | DEMILI : 7 | CRITICALITY : X | HMIC : N | PMIC : A | EDC: | ADPEC : 0 1240
United States (US) 4. 1240-00-509-2743 Marketplace Restrictions Approved Sources Datasheet Management
1240-00-509-2743 DEMIL: D | DEMILI : 7 | CRITICALITY : X | HMIC : N | PMIC : A | EDC: | ADPEC : 0 1240
Management:B2Operational Test:No Special Procedures Similar Supply Items to 1240-00-344-4643 1240-00-509-2743
Restrictions 1240-00-509-2743
1240-00-509-2743 is a M45 Armored Vehicle Periscope that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1240-00-509-2743
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1240-00-509-2743
- US Army (A918)
- Effective Date:
- 1 Aug 2010
- Former MOE Rule:
- A403
- Supplementary Receivers:
- AZCNBF
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Morocco (YP01)
- Effective Date:
- 1 Oct 2010
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Italy (ZR01)
- Effective Date:
- 1 Nov 1998
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 1240-00-509-2743
- Part Number
- Manufacturer
- Status
- 8213430
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
- 10418896
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 1240005092743
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 8213430
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 1240-00-509-2743
- Characteristic
- Specifications
- FIIG
- Specifications
- A519Q0
- Field View Coverage [BLDD]
- Eye 50Mm From Exit Window: Total Vertical 10 Deg, Up +4.0,Down -6.0;Total Horiz 38.0 Deg,Rt +19.0,Left -19.0;Extreme Field W/ Head Motion:Total Vert 28.8 Deg, Up +10.8,Down -18.0;Total Horiz 90.0 Deg,Rt +45.0,Lft -45.0
- Overall Length [ABHP]
- 7.578 Inches Nominal
- Overall Height [ABKW]
- 14.000 Inches Nominal
- Special Features [FEAT]
- Consists Of The Following Pn:Cover 8213428;Cover 7633134;Body 8213429;Seal 10940477;Sealing Compound 9356192
- End Item Identification [AGAV]
- Used On The M109
- Part Name Assigned By Controlling Agency [CXCY]
- Periscope M45
Weapon Systems (WSDC) 1240-00-509-2743
DLA Procurement Analysis 1240-00-509-2743
- Last Stock Position:
- 51 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1240-00-509-2743
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jun 2014
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- V
- Discontinued W/O Replacement
- V
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- KF
- Combat Vehicles
Howitzer, Full Tracked, Self- propelled 155mm M109
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 1240-00-509-2743
Freight Information 1240-00-509-2743
1240-00-509-2743 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058130. A Sub NMFC of B. It has a NMFC Description of PERISCOPES MIRROR SUB2. 1240-00-509-2743 is rated as class 125 when transported by Less-Than Truckload (LTL) freight. 1240-00-509-2743 is rated as class 125 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 33120 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 1240-00-509-2743 is not classified as a special type of cargo when transported by water. 1240-00-509-2743 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1240-00-509-2743
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 1240-00-509-2743 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M916M1080
- 05 Jan 2016
- Subscribe
- 37
- Subscribe
- Subscribe
- Subscribe
- SPE7M916M0514
- 10 Nov 2015
- Subscribe
- 24
- Subscribe
- Subscribe
- Subscribe
- SPE7M916M0271
- 22 Oct 2015
- Subscribe
- 29
- Subscribe
- Subscribe
- Subscribe
- SPE7M915M2728
- 19 May 2015
- Subscribe
- 38
- Subscribe
- Subscribe
- Subscribe
- SPE7M915M2059
- 24 Mar 2015
- Subscribe
- 200
- Subscribe
- Subscribe
- Subscribe
- SPM7M913M2700
- 29 Aug 2013
- Subscribe
- 213
- Subscribe
- Subscribe
- Subscribe
- SPM7M913M2632
- 17 May 2013
- Subscribe
- 210
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 1240-00-509-2743 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
