1015-00-533-3478

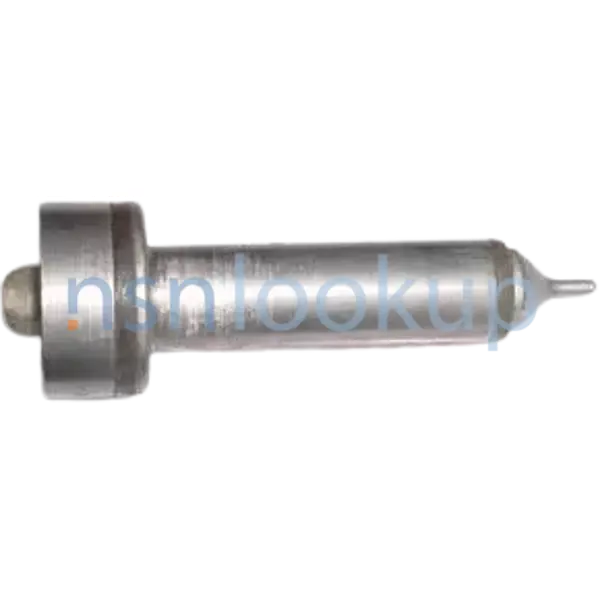

Firing Pin
1015005333478 005333478 8767164
An item used in a firing mechanism of a gun, mine, bomb, fuze, projectile, or the like, which strikes and detonates a sensitive explosive to initiate an explosive train or a propelling charge. View more Firing Pin
November 2023
20
Marketplace 1015-00-533-3478
Request a Quotation from participating marketplace vendors
Related Documents 1015-00-533-3478 2+ Documents (More...)
Restrictions 1015-00-533-3478
1015-00-533-3478 is a Firing Pin that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1015-00-533-3478
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1015-00-533-3478
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Air Force (FGGC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- FGAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- MC51
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Apr 2002
Approved Sources 1015-00-533-3478
- Part Number
- Manufacturer
- Status
- 8767164
- Manufacturer
- 19206 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
- 1015005333478
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 1015-00-533-3478
- Characteristic
- Specifications
- FIIG
- Specifications
- T102-D
- Casehardening Indicator [AASG]
- Not Casehardened
- Firing Pin Type [AMZS]
- Shoulder
- Material [MATT]
- Steel,Fed Std 66,0.38-0.50 Carbon
- Metallic Hardness Rating [AETC]
- 35.0 Minimum Rockwell C And 40.0 Maximum Rockwell C
- Fsc Application Data [ZZZV]
- Cannon,105 Mm Gun
- Overall Length [ABHP]
- 3.545 Inches Nominal
- Special Features [FEAT]
- Furnished With Cup,Hub,Insulator,Sleeve And Washer
- Striking End Diameter [AMZG]
- 0.120 Inches Minimum And 0.125 Inches Maximum
- Striking End Radius [AMZR]
- 0.030 Inches Minimum And 0.040 Inches Maximum
- Striking End Type [AMZT]
- Spherical
Weapon Systems (WSDC) 1015-00-533-3478
DLA Procurement Analysis 1015-00-533-3478
- Last Stock Position:
- 30 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1015-00-533-3478
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- JH
- Tanks
Tank, 105mm, M60A3, TTS
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 1015-00-533-3478
Freight Information 1015-00-533-3478
1015-00-533-3478 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 069300. A Sub NMFC of X. It has a NMFC Description of FIREARMS/PARTS NOI IN BOXES. 1015-00-533-3478 is rated as class 100 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 38340 which rates the freight between FCL and LCL. 1015-00-533-3478 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 685 for ocean manifesting and military sealift. 1015-00-533-3478 is not classified as a special type of cargo when transported by water. 1015-00-533-3478 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1015-00-533-3478
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 1015-00-533-3478 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
