1010-01-085-1584
Mortar Mount Foot
1010010851584 010851584 11579666
A spiked metallic item with a rounded base designed for attachment to the end of a LEG, MORTAR MOUNT. View more Mortar Mount Foot
November 2023
14
Marketplace 1010-01-085-1584
Request a Quotation from participating marketplace vendors
Related Documents 1010-01-085-1584 1+ Documents (More...)
FOOT,MORTAR MOUNT RQST NS Request Quotation Updated Every Day 1010-01-085-1584 RQST NE Updated
Every Day 1010-01-085-1584 RQST Updated Every Day 1010-01-085-1584 RQST NE Restrictions 1010-01-085-1584
Restrictions 1010-01-085-1584
1010-01-085-1584 is a Mortar Mount Foot that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 1010-01-085-1584
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 1010-01-085-1584
- US Army (A920)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- BF
- US Navy (N9BC)
- Effective Date:
- 1 Sep 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Australia (ZA01)
- Effective Date:
- 1 Sep 2012
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 1010-01-085-1584
- Part Number
- Manufacturer
- Status
- 11579666
- Manufacturer
- 19204 - Army, United States Department Of (Active)
- Primary Buy
- Primary Buy
- 11579666
- 19206 - Army, United States Department Of (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 1010-01-085-1584
- Characteristic
- Specifications
- FIIG
- Specifications

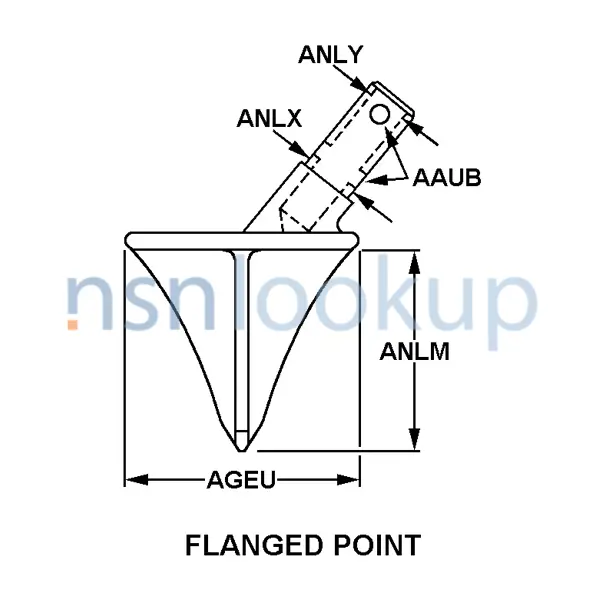

- T102-E
- Distance From Base To Foot End [ANLM]
- 2.060 Inches Nominal
- Attachment End Inside Diameter [ANLY]
- 0.859 Inches Minimum And 0.861 Inches Maximum
- Attachment End Outside Diameter [ANLX]
- 1.030 Inches Nominal
- Base Diameter [AGEU]
- 3.000 Inches Nominal
- Hole Diameter [AAUB]
- 0.191 Inches Minimum And 0.196 Inches Maximum
- Material [MATT]
- Steel
- Style Designator [STYL]
- Flanged Point
- Surface Treatment [SFTT]
- Phosphate
Weapon Systems (WSDC) 1010-01-085-1584
DLA Procurement Analysis 1010-01-085-1584
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 1010-01-085-1584
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 6H
- Individual and Crew-Served Weapons
Mortar, Light Weight, 60mm,M224, with Mount
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 1010-01-085-1584
Freight Information 1010-01-085-1584
1010-01-085-1584 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 146150. A Sub NMFC of X. It has a NMFC Description of GUN CARRAIGE/GUN MOUNT PARTS NOI. 1010-01-085-1584 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. 1010-01-085-1584 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 72990 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 685 for ocean manifesting and military sealift. 1010-01-085-1584 is not classified as a special type of cargo when transported by water. 1010-01-085-1584 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 1010-01-085-1584
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- MIL-PRF-3150, Medium Preservative Oil, Cold Application
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 1010-01-085-1584 1 Records
Contracting Technical Data File (CTDF) 1010-01-085-1584 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
