1005-01-255-4233

Front Sight Blade

1005012554233 012554233 12597040-1 1005PL0957276

A narrow metal strip mounted perpendicular to a base and integral to a SIGHT, FRONT. View more Front Sight Blade

Managed by United States

NSN Created on 20 May 1987

Data Last Changed
November 2023

NATO Update Count
19

NATO Data Quality

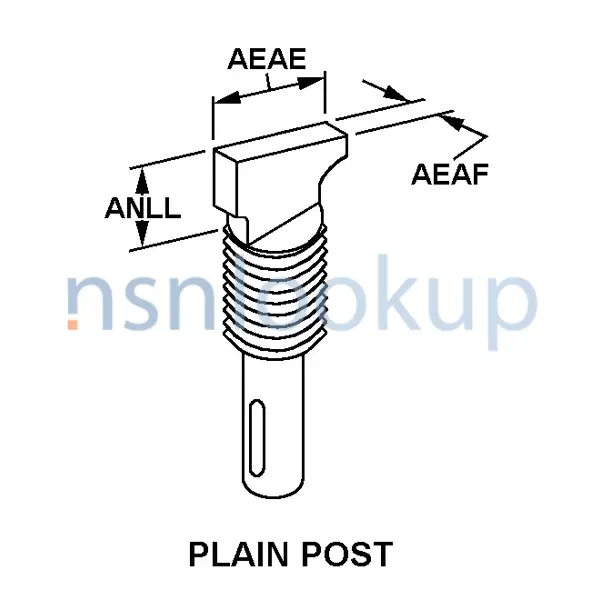

STYL Style C3D for 1005-01-255-4233 1/1 — NSN 1005-01-255-4233 (Identification) 1/1

Marketplace 1005-01-255-4233

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

1005-01-255-4233 RQST NE

Restrictions 1005-01-255-4233

1005-01-255-4233 is a Front Sight Blade that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 1005-01-255-4233

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 1005-01-255-4233

US Army (A920)
Effective Date:: 1 Aug 2010
Former MOE Rule:: A403
Supplementary Receivers:: BFCN; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FGGC)
Effective Date:: 1 Aug 2010
Former MOE Rule:: FGBF; AMC 1 AMSC G IMC Z IMCACTY TG

US Marine Corps (MC40)
Effective Date:: 1 Aug 2010
Former MOE Rule:: MA40; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Aug 2010
Former MOE Rule:: N9H5
Supplementary Collaborators:: GTHD; AMC 1 AMSC G IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Jul 2013

Brazil (YA01)
Effective Date:: 1 Nov 2001

Spain (YB01)
Effective Date:: 1 Jan 2014

Columbia (YC01)
Effective Date:: 1 Jul 2015

Australia (ZA01)
Effective Date:: 1 Apr 1991

Approved Sources 1005-01-255-4233

Part Number
Manufacturer
Status
12597040-1: 19200 - Combat Capabilities Development (Active); Primary Buy; RNCC 3 RNVC 2 DAC 1
1005PL0957276: 9009H - Jednolity Indeks Materialowy - (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 1005-01-255-4233

Characteristic
Specifications
FIIG: T102-E
Blade Height [ANLL]: 9.8 Millimeters Nominal
Blade Length [AEAE]: 11.9 Millimeters Nominal
Blade Width [AEAF]: 1.3 Millimeters Nominal
Material [MATT]: Steel
Style Designator [STYL]: Plain Post

Weapon Systems (WSDC) 1005-01-255-4233

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 1005-01-255-4233

Last Stock Position:: 1372 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 1005-01-255-4233

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

HC: Individual and Crew-Served Weapons
Machine Gun, 7.62mm,M240

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Price Validation Code:

N: The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

Similar Supply Items to 1005-01-255-4233

Freight Information 1005-01-255-4233

1005-01-255-4233 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 146230. A Sub NMFC of X. It has a NMFC Description of GUNS MACHINE/PARTS NOI SM ARMS AMMO. 1005-01-255-4233 is rated as class 125 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 73040 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 682 for ocean manifesting and military sealift. 1005-01-255-4233 is not classified as a special type of cargo when transported by water. 1005-01-255-4233 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 1005-01-255-4233

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; --; --

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; No Requirement; No Requirement; Not Applicable; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Contracting Technical Data File (CTDF) 1005-01-255-4233 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
