1005-00-857-0022

Machine Gun Bolt Slide

1005008570022 008570022 7791383

A metallic item which supports the BLOCK, BOLT, MACHINE GUN and other components of the firing mechanism of a machine gun. excludes SLIDE, AUTOMATIC PISTOL. View more Machine Gun Bolt Slide

Managed by United States

NSN Created on 1 Jan 1962

Data Last Changed
September 2023

NATO Update Count
24

NATO Data Quality

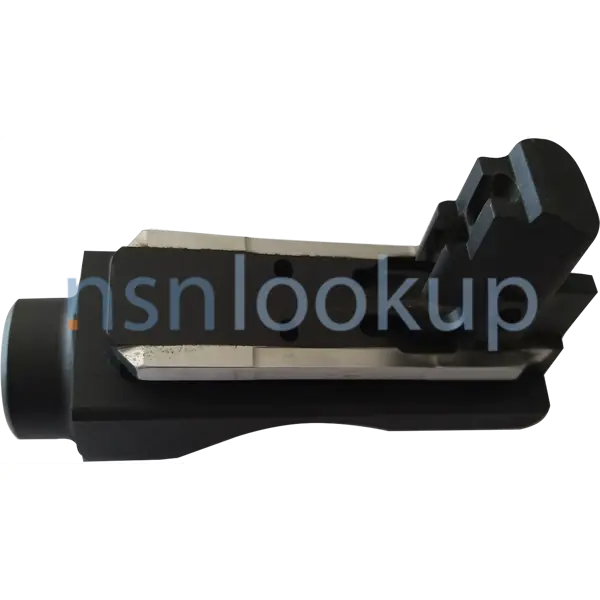

1005-00-857-0022 SLIDE,BOLT,MACHINE GUN 1005008570022 008570022 1/1 — 1005-00-857-0022 Photo 1/1

Marketplace 1005-00-857-0022

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

1005-00-857-0022 SLIDE,BOLT,MACHINE GUN RQST NS

Updated Every Day

1005-00-857-0022 RQST NE

Restrictions 1005-00-857-0022

1005-00-857-0022 is a Machine Gun Bolt Slide that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item which must be destroyed to prevent restoration or repair. Only authorized parties may possess this item. This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 1005-00-857-0022

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 1005-00-857-0022

US Army (A920)
Effective Date:: 1 Sep 2005
Former MOE Rule:: A181
Supplementary Receivers:: AZCNBF; AMC 1 AMSC G IMC Z IMCACTY BF

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Dec 2001

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Feb 2013

Italy (ZR01)
Effective Date:: 1 Jun 1997

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Apr 2002

Approved Sources 1005-00-857-0022

Part Number
Manufacturer
Status
7791383: 19205 - Springfield Armory (Replaced); Original Design; RNCC 3 RNVC 9 DAC X

Datasheet 1005-00-857-0022

Characteristic
Specifications
FIIG: A500A0
End Item Identification [AGAV]: 1005-00-690-2790
General Characteristics Item Description [TEXT]: Size Designation.50 Calibur;Modelnumber M85;Operational/Direction Horizontal;;Surface Treatment:Manganese Phosphate,Mil-P-16232,Type M,Class 1;Heattreatment Iaw Mil-H-6875;Refrigerate At -120 Degrees F For 3 Hours;Temper At 425 Degrees F For 2 Hours;No Total Decarburization Permitted;Sides Shall Be Chrome Plated Iaw Finish 1.2.2.4 Of Mil-Std-171.

Management Data 1005-00-857-0022

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Army (DA); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2020: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

HB: Individual and Crew-Served Weapons
Machine Gun, M85 Series

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

NATO Stock Numbers Related to 1005-00-857-0022

1005-14-514-6922 1005-34-030-0420 1005-13-120-1007 1005-16-006-4458 1005-13-121-2181 1005-13-120-6034 1005-34-030-5363 1005-72-000-0141 1005-14-544-0588 1005-25-161-1511 1005-50-000-1903 1005-14-544-0597 1005-14-449-8470 1005-13-120-6028 1005-14-449-8488 1005-13-111-1593 1005-12-384-0583 1005-37-507-1406

Freight Information 1005-00-857-0022

1005-00-857-0022 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 146230. A Sub NMFC of X. It has a NMFC Description of GUNS MACHINE/PARTS NOI SM ARMS AMMO. 1005-00-857-0022 is rated as class 125 when transported by Less-Than Truckload (LTL) freight. 1005-00-857-0022 is rated as class 125 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 73040 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 682 for ocean manifesting and military sealift. 1005-00-857-0022 is not classified as a special type of cargo when transported by water. 1005-00-857-0022 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 1005-00-857-0022

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Storage Environment: Unheated General Purpose

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; --; Over 10lb; Less than 85G; Special Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; 6.0" H x 3.2" W x 1.8" L; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; A-A-203, Kraft Wrapping Paper; No Requirement; Not Applicable; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box

Contracting Technical Data File (CTDF) 1005-00-857-0022 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: T

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:: N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
