9505-00-946-4236

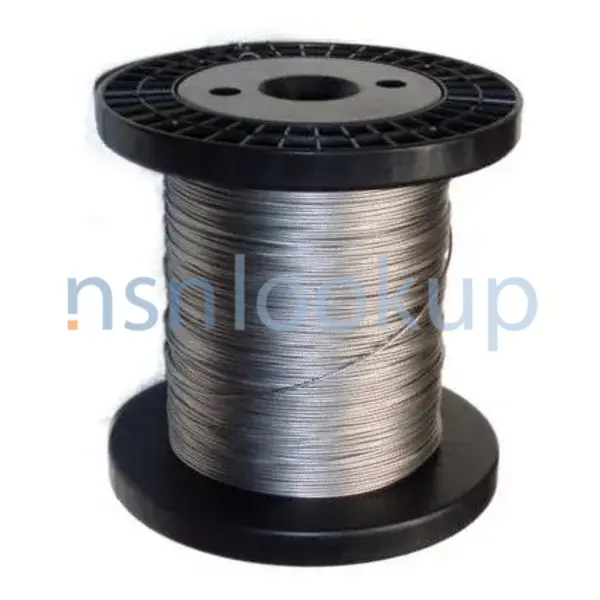

Nonelectrical Wire
9505009464236 009464236 NASM20995 ASTM A641 MS20995F41-18 QQW461
A ferrous or nonferrous wire having a solid cross section that is square or rectangular with sharp or rounded corners or edges, or is round, half-round, hexagonal, or octagonal and whose diameter, width, or greatest distance between parallel faces is less than 3/8 inch or 10.0mm. The rectangular shape is limited to a thickness less than 3/32 inch or 2.5mm and a width of 1 1/4 inch or 30.0mm or less. For dimensions greater than above, see BAR, METAL. Excludes items having electrical resistivity or conductivity ratings. View more Nonelectrical Wire
November 2023
10
Marketplace 9505-00-946-4236
Request a Quotation from participating marketplace vendors
Updated Every 15 Minutes
Updated Every Day Updated Every Day
Updated Every Day Related Documents 9505-00-946-4236 5+ Documents (More...)
Nonelectrical Wire 9505009464236 009464236 A641MS20995F41-18QQW461 A ferrous or nonferrous https
/www.nsnlookup.com /fsg https//www.nsnlookup.com /fsg-95 Wire, Nonelectrical (FSC 9505) 1968 9505-00-946-4236
QQW461 WIRE,NONELECTRICAL 6 LB NS Request Quotation Subscribe to View Vendor Details...
Nonelectrical Wire 9505009464236 009464236 ASTM A641 MS20995F41-18 QQW461 A ferrous or nonferrous
https//www.nsnlookup.com /fsg-95/fsc-9505/us 9505-00-946-4236 Nonelectrical Wire 9505009464236 009464236
ASTM A641 MS20995F41-18 QQW461 A ferrous or nonferrous wire having a solid cross section that is square
QQW461 WIRE,NONELECTRICAL 6 LB NS Request Quotation Subscribe to View Vendor Details...
https//www.nsnlookup.com /fsg-95/fsc-9505/us 9505-00-946-4236 Nonelectrical Wire 9505009464236 009464236
23130 NASM20995F47 QQW461 MS20995F47 402510007 ASTM A641 ASTM A641,CL1,0.048(DIA) 9505PL0850586 5905002489850
Nonelectrical Wire 9505009464236 009464236 ASTM A641 MS20995F41-18 QQW461 A ferrous or nonferrous
Restrictions 9505-00-946-4236
9505-00-946-4236 is a Nonelectrical Wire that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 9505-00-946-4236
- US Air Force (FGGI)
- Effective Date:
- 1 Mar 2006
- Former MOE Rule:
- FGKZ
- US Navy (N9BZ)
- Effective Date:
- 1 Mar 2006
- Supplementary Collaborators:
- KE
Approved Sources 9505-00-946-4236
- Part Number
- Manufacturer
- Status
- NASM20995
- Manufacturer
- 80205 - National Aerospace Standards (Active)
- Incomplete Reference
- Incomplete Reference
- MS20995F41-18
- 80205 - National Aerospace Standards (Active)
- Primary Buy
- Primary Buy
- ASTM A641
- 81346 - American Society For Testing And (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS20995F41-18
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- QQW461
- 81348 - Federal Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 9505-00-946-4236
- Characteristic
- Specifications
- FIIG
- Specifications
- A13100
- Basic Shape Style [AGTA]
- Round
- Coating Weight [BWDC]
- 0.100 Ounces Per Square Foot
- Cross Section Outside Diameter [ADVL]
- 0.041 Inches Nominal
- Heat Treatment [HEAT]
- Annealed
- Material [MATT]
- Steel,Astm A510,Comp 1006 Or Comp 1010 Or Comp 1015
- Nondefinitive Spec/Std Data [ZZZT]
- 5 Finish
- Length [ABRY]
- 1.500 Feet Nominal
- Surface Treatment [SFTT]
- Zinc
DLA Procurement Analysis 9505-00-946-4236
Management Data 9505-00-946-4236
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 9505-00-946-4236
Freight Information 9505-00-946-4236
9505-00-946-4236 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 107520. A Sub NMFC of X. It has a NMFC Description of WIRE ROPE/STRAND I/S. 9505-00-946-4236 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 55290 which rates the freight between FCL and LCL. 9505-00-946-4236 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 745 for ocean manifesting and military sealift. 9505-00-946-4236 is not classified as a special type of cargo when transported by water. 9505-00-946-4236 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 9505-00-946-4236
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- No Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- No Requirement
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
- No Requirement
Contracting Technical Data File (CTDF) 9505-00-946-4236 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
