4240-01-300-8151
Industrial Spectacles
4240013008151 013008151 A-A-1995 STY D TY II CL A F2050AF-S 50X22 511AM CLR GLASS
Spectacles designed for protection against impact and/or light radiation. Does not include spectacles having corrective lenses. View more Industrial Spectacles
May 2023
5
Marketplace 4240-01-300-8151
Request a Quotation from participating marketplace vendors
Related Documents 4240-01-300-8151 5+ Documents (More...)
Industrial Spectacles 4240013008151 013008151 4240-01-300-8151 4240013008151 013008151 is spectacles
NumberManufacturerStatusF-9800-245MED 88309 - Aearo Company (Replaced) Primary Buy RNCC 3 RNVC 2 DAC 5 A-A-1995 STY D TY II CL
web browser . 4240-01-214-8696Industrial Spectacles4240012148696 012148696 F-9800-245MED A-A-1995 STY D TY II CL
NumberManufacturerStatusF-9800-245MED 88309 - Aearo Company (Replaced) Primary Buy RNCC 3 RNVC 2 DAC 5 A-A-1995 STY D TY II CL
web browser . 4240-01-214-8696Industrial Spectacles4240012148696 012148696 F-9800-245MED A-A-1995 STY D TY II CL
NumberManufacturerStatusF-9800-245MED 88309 - Aearo Company (Replaced) Primary Buy RNCC 3 RNVC 2 DAC 5 A-A-1995 STY D TY II CL
Restrictions 4240-01-300-8151
4240-01-300-8151 is a Industrial Spectacles that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item may be hazardous as it is in a Federal Supply Class for potentially hazardous items. A MSDS should be available from the supplier for the end user to evaluate any hazards. This item does not contain a precious metal.
End Users 4240-01-300-8151
- US Navy (N9BZ)
- Effective Date:
- 1 May 2006
- Former MOE Rule:
- N9ZD
- Supplementary Collaborators:
- GAHD
Approved Sources 4240-01-300-8151
- Part Number
- Manufacturer
- Status
- F2050AF-S 50X22 511AM CLR GLASS
- Manufacturer
- 7V188 - Western Optical Corp (Active)
- Primary Buy
- Primary Buy
- F2050AF-S 50X22 511AM CLR GLASS
- 63984 - Square D Co Monroe Plant (Active)
- Primary Buy
- Primary Buy
- A-A-1995 STY D TY II CL A
- 58536 - Federal Commercial Item Description (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4240-01-300-8151
- Characteristic
- Specifications
- FIIG
- Specifications
- T282-F
- Bridge Material [BRNC]
- Plastic
- Bridge Cover [BSGR]
- Not Included
- Carrying Case [AFJU]
- Not Provided
- Color [HUES]
- Clear
- Diameter [ABMZ]
- 50.0 Millimeters Nominal

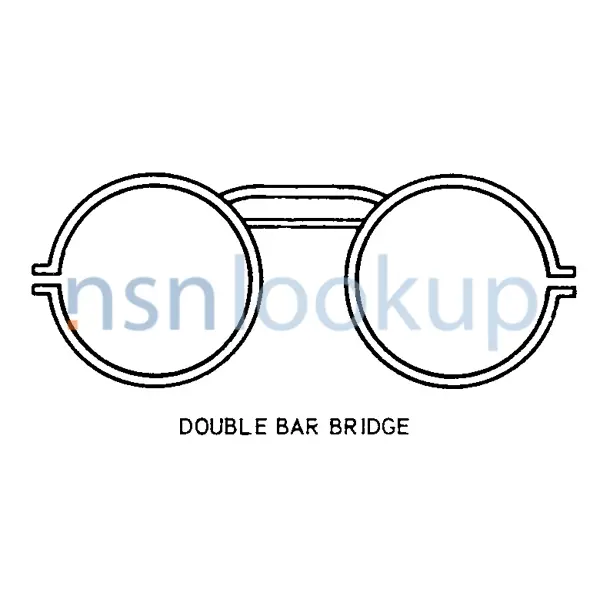

- Front Style Designator [BRNB]
- Double Bar Bridge
- Headband [BMLR]
- Not Provided
- Nose Bridge Width [BSGN]
- 22.0 Millimeters Nominal
- Nose Shield [BSGP]
- Not Included
- Lens Color [AEXD]
- Clear
- Lens Material [AESG]
- Glass
- Lens Shape [BLGQ]
- Standard
- Lens Style [AEXE]
- S-7
- Plastic Front Color [BSGM]
- Amber Fade
- Rim Material [BRNF]
- Plastic
- Shield Material [ABYH]
- Plastic
- Side Shield [BSHG]
- Included
- Spare Lens [BSHF]
- Not Included
- Special Features [FEAT]
- Includes Rigid Nose Pads And Semi Side Shield
- Temple Core [BSGY]
- Not Included
- Temple Section Material [BSGT]
- Plastic
- Temple Section Style Designator [AJUJ]
- Conventional Angle
DLA Procurement Analysis 4240-01-300-8151
Management Data 4240-01-300-8151
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4240-01-300-8151
Freight Information 4240-01-300-8151
4240-01-300-8151 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 057880. A Sub NMFC of X. It has a NMFC Description of GOGGLES EYE PROTECION OT CORRECTIVE. 4240-01-300-8151 is rated as class 150 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 32975 which rates the freight between FCL and LCL. 4240-01-300-8151 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 796 for ocean manifesting and military sealift. 4240-01-300-8151 is not classified as a special type of cargo when transported by water. 4240-01-300-8151 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4240-01-300-8151
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- 1/4 inch thick
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 4240-01-300-8151 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
